Yamaha 2014 MT-07 Service Manual

PERIODIC MAINTENANCE
3-12
EAS30629

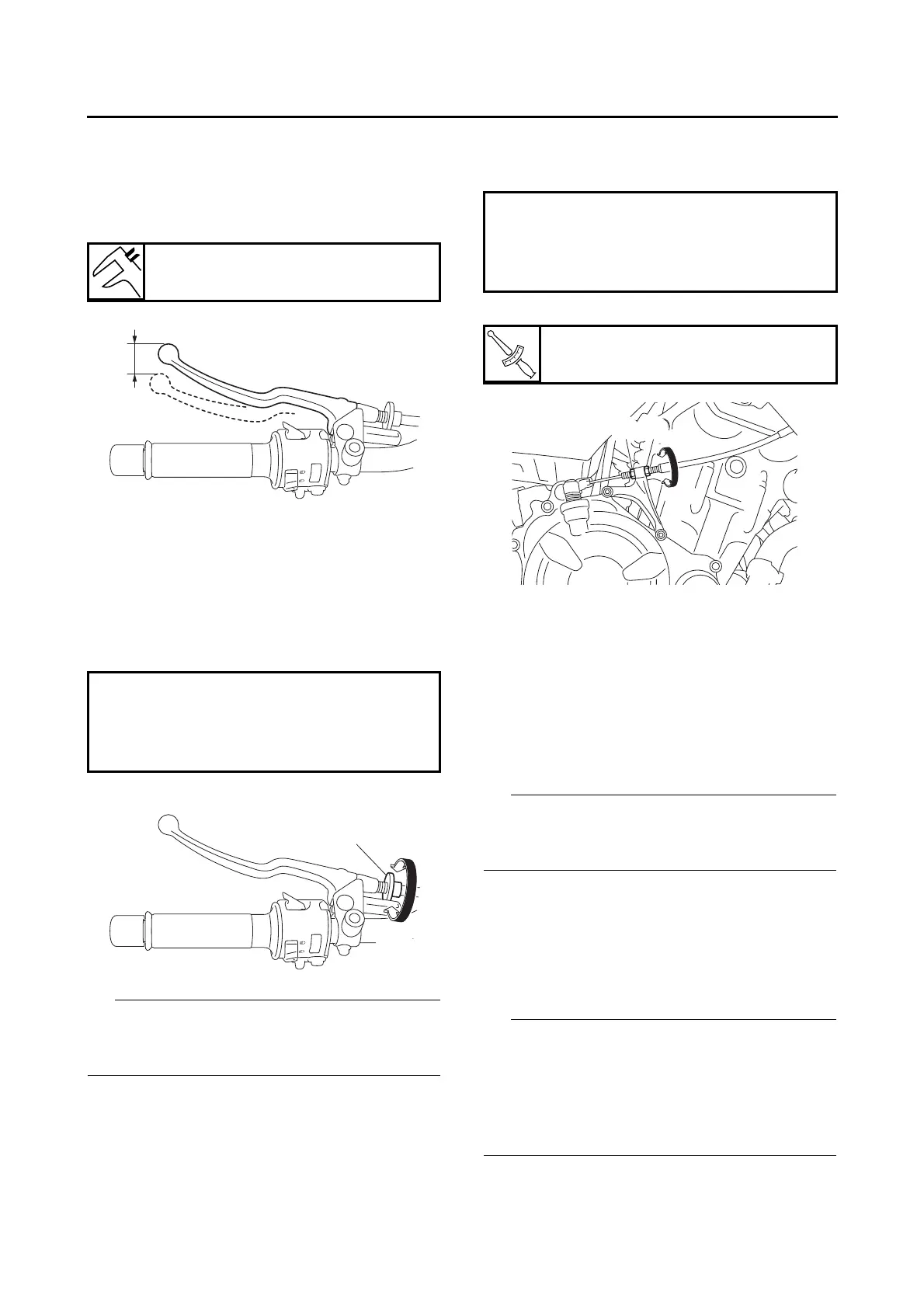

ADJUSTING THE CLUTCH LEVER FREE
PLAY
1. Check:
• Clutch lever free play “a”
Out of specification → Adjust.
2. Adjust:
• Clutch lever free play
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
Handlebar side
a. Turn the adjusting bolt “1” in direction “a” or
“b” until the specified clutch lever free play is
obtained.
TIP
If the specified clutch lever free play cannot be
obtained on the handlebar side of the cable, use
the adjusting nut on the engine side.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
Engine side
a. Loosen the locknut “1”.
b. Turn the adjusting nut “2” in direction “a” or “b”
until the specified clutch lever free play is ob-
tained.
c. Tighten the locknut “1”.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS30801
CHECKING THE BRAKE OPERATION
1. Check:
• Brake operation
Brake not working properly → Check the
brake system.
Refer to “FRONT BRAKE” on page 4-35 and
“REAR BRAKE” on page 4-49.
TIP
Drive on the dry road, operate the front and rear
brakes separately and check to see if the brakes
are operating properly.
EAS30630
ADJUSTING THE FRONT DISC BRAKE
1. Adjust:
• Brake lever position
(distance “a” from the throttle grip to the brake
lever)
TIP
• While pushing the brake lever forward, turn the
adjusting dial “1” until the brake lever is in the
desired position.
• Be sure to align the setting on the adjusting dial
with the arrow mark “2” on the brake lever hold-
er.
Clutch lever free play
5.0–10.0 mm (0.20–0.39 in)
Direction “a”
Clutch lever free play is increased.
Direction “b”
Clutch lever free play is decreased.
a
1
b
a
Direction “a”
Clutch lever free play is increased.
Direction “b”
Clutch lever free play is decreased.
T
R
.
.
Clutch cable locknut
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
1 2
a
b

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
