GENERATOR AND STARTER CLUTCH
5-43

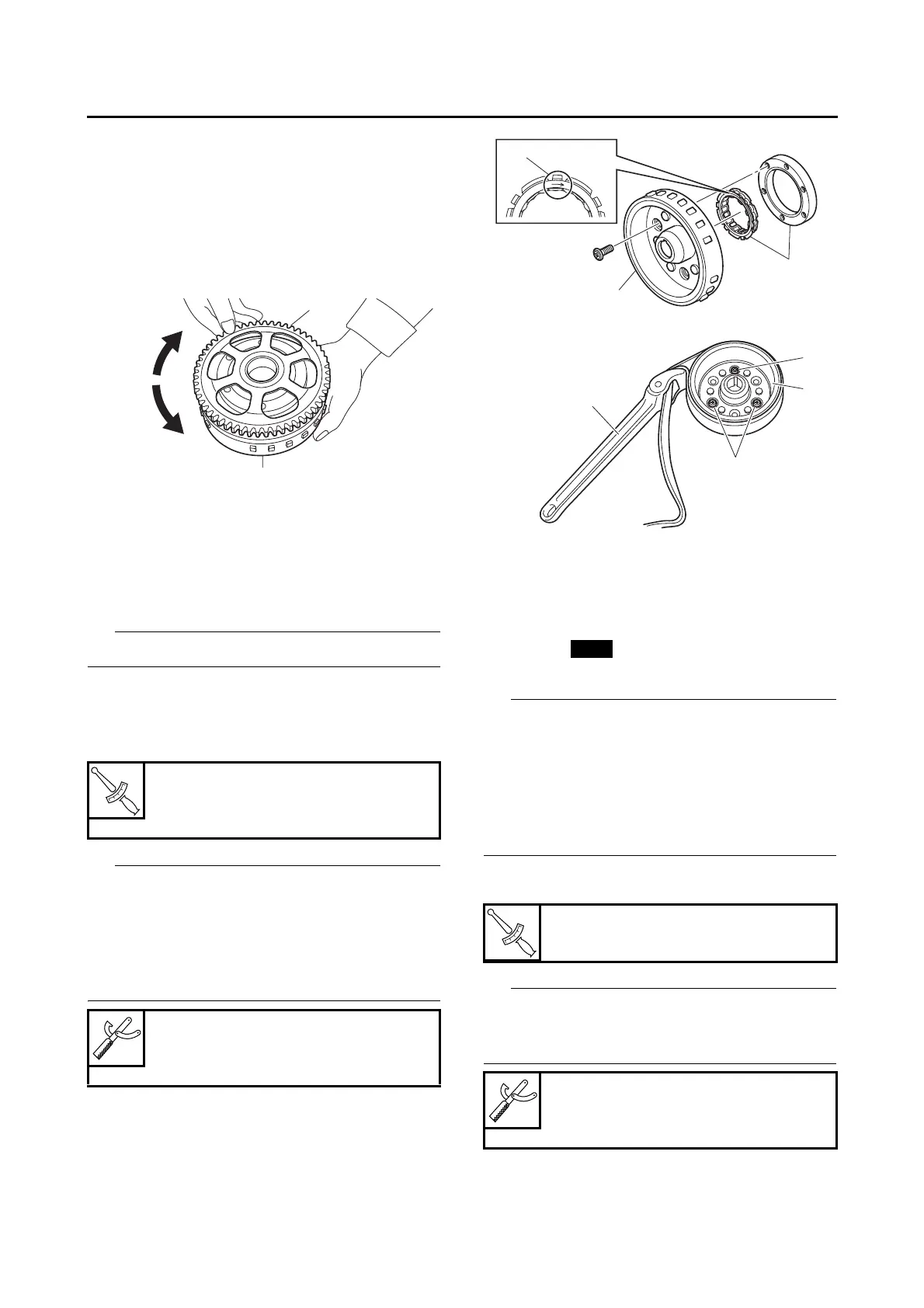

b. When turning the starter clutch gear clock-
wise “A”, the starter clutch and the starter
clutch gear should engage, otherwise the
starter clutch is faulty and must be replaced.
c. When turning the starter clutch gear counter-
clockwise “B”, it should turn freely, otherwise
the starter clutch is faulty and must be re-
placed.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
EAS30870
CHECKING THE TORQUE LIMITER
1. Check:
• Torque limiter
Damage/wear → Replace.
TIP
Do not disassemble the torque limiter.
EAS30871
INSTALLING THE STARTER CLUTCH
1. Install:
• Starter clutch “1”
TIP
• Install the starter clutch so that the side of the
starter clutch roller assembly with the arrow
mark “a” is toward the generator rotor “2”.
• While holding the generator rotor with the rotor
holding tool “3”, tighten the starter clutch bolts
“4”.
EAS30872
INSTALLING THE GENERATOR
1. Install:
• Woodruff key
• Generator rotor
• Washer
• Generator rotor bolt
TIP
• Clean the tapered portion of the crankshaft and
the generator rotor hub.
• When installing the generator rotor, make sure
the woodruff key is properly seated in the key-
way of the crankshaft.
• Lubricate the generator rotor bolt threads and
washer mating surfaces with engine oil.
2. Tighten:
• Generator rotor bolt “1”
TIP
While holding the generator rotor “2” with the ro-
tor holding tool “3”, tighten the generator rotor
bolt.
T
R
.
.
Starter clutch bolt
32 Nm (3.2 m·kgf, 23 ft·lbf)
LOCTITE®
Rotor holding tool
90890-04166
YM-04166
1
A
B
2
T
R
.
.
Generator rotor bolt
70 Nm (7.0 m·kgf, 51 ft·lbf)
Rotor holding tool
90890-04166
YM-04166
2
1
a
4
2
4
3
New
