Yamaha 2014 MT-07 Service Manual

OIL COOLER
6-6
EAS30441
CHECKING THE OIL COOLER
1. Check:
• Oil cooler
Cracks/damage → Replace.
2. Check:
• Oil cooler inlet hose
• Oil cooler outlet hose
• Water pump outlet hose
Cracks/damage → Replace.
EAS31123
CHECKING THE WATER JACKET JOINT
1. Check:
• Water jacket joint
Mineral deposits/rust → Eliminate.
EAS30442

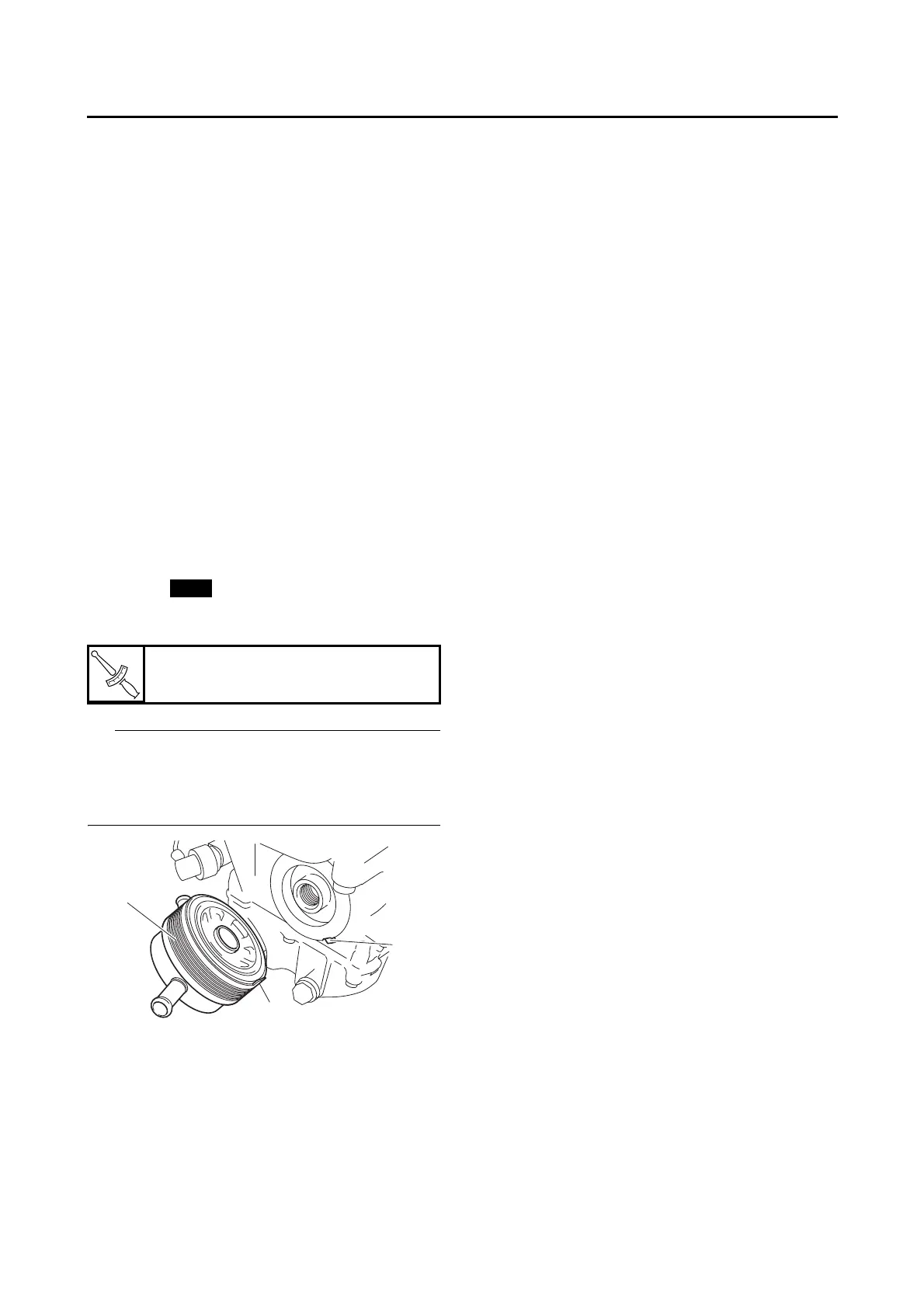

INSTALLING THE OIL COOLER
1. Clean:
• Mating surfaces of the oil cooler and the
crankcase
(with a cloth dampened with lacquer thinner)
2. Install:
•Gasket
• Oil cooler “1”
• Oil filter cartridge union bolt
TIP
• Before installing the oil cooler, apply engine oil
lightly to the oil filter cartridge union bolt.
• Align the projection “a” on the oil cooler with the
slot “b” in the crankcase.
3. Fill:
• Cooling system
(with the specified amount of the recom-
mended coolant)
Refer to “CHANGING THE COOLANT” on
page 3-24.
• Crankcase
(with the specified amount of the recom-
mended engine oil)
Refer to “CHANGING THE ENGINE OIL” on
page 3-22.
4. Check:
• Cooling system
Leaks → Repair or replace any faulty part.
Refer to “INSTALLING THE RADIATOR” on
page 6-3.
5. Measure:
• Radiator cap opening pressure
Below the specified pressure → Replace the
radiator cap.
Refer to “CHECKING THE RADIATOR” on
page 6-3.
T
R
.
.
Oil filter cartridge union bolt
40 Nm (4.0 m·kgf, 29 ft·lbf)
New
b
a
1

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
