120 Internal control unit (option +P905)

Layout

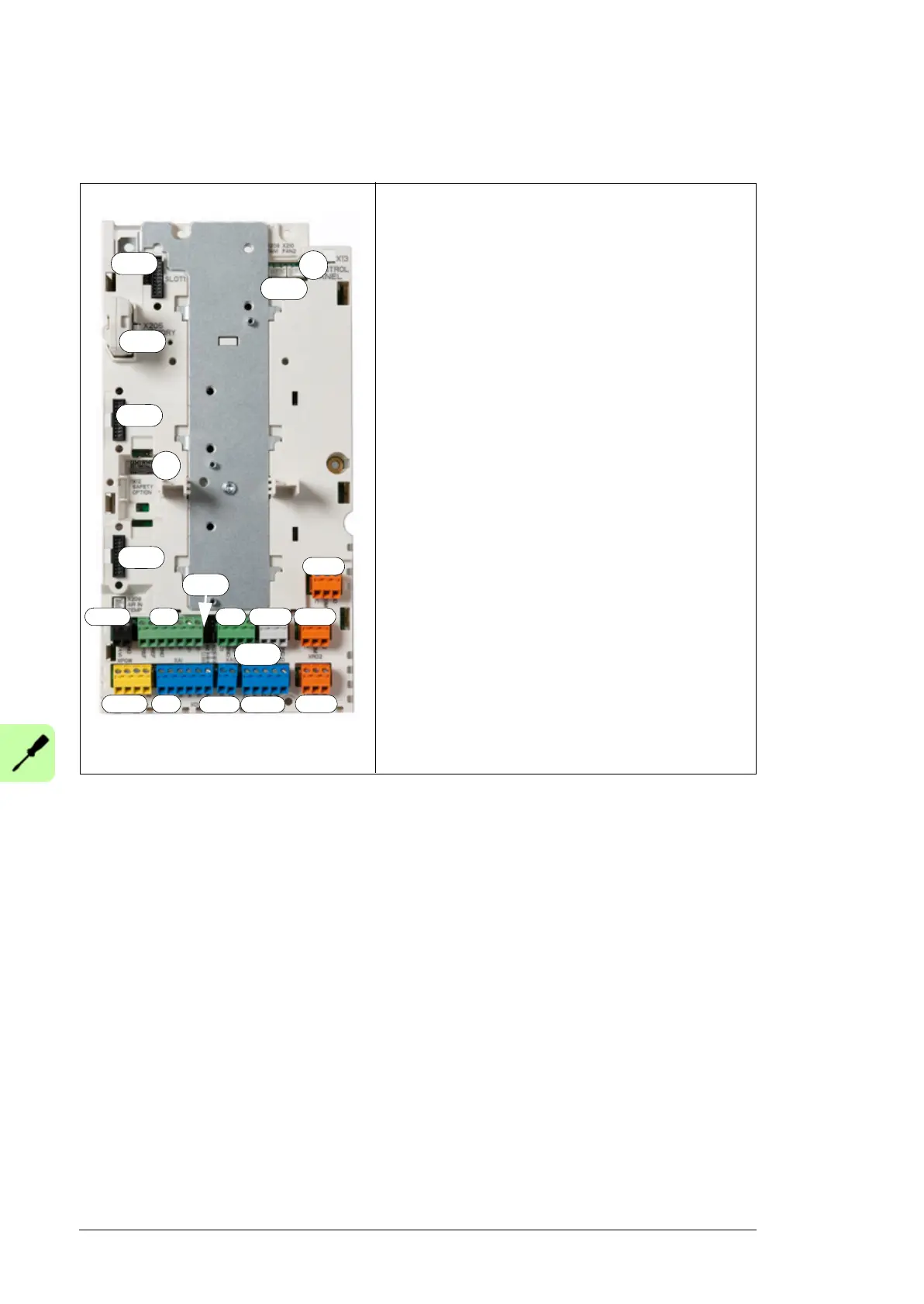

The layout of external control connection terminals of the control unit is shown below.

X13

Description

XPOW External power input

XAI Analog inputs

XAO Analog outputs

XD2D Drive-to-drive link

XRO1 Relay output 1

XRO2 Relay output 2

XRO3 Relay output 3

XD24 Start interlock connection (DIIL) and +24 V

output

XDIO Digital input/outputs

XDI Digital inputs

XSTO Safe torque off connection

X12 Connector for optional safety functions modules

X13 Control panel connection

X202 Option slot 1

X203 Option slot 2

X204 Option slot 3

X205 Memory unit connection

X208 Auxiliary cooling fan connection

J1, J2 Voltage/Current selection jumpers (J1, J2) for

analog inputs

J3, J6 Drive-to-drive link termination jumper (J3),

common digital input ground selection jumper

(J6)

X12

X202

X203

X204

X205

J3, J6

J1, J2

XPOW XAI XAO XD2D XRO2

XRO1

XRO3XSTO XDI XDIO XD24

X208
