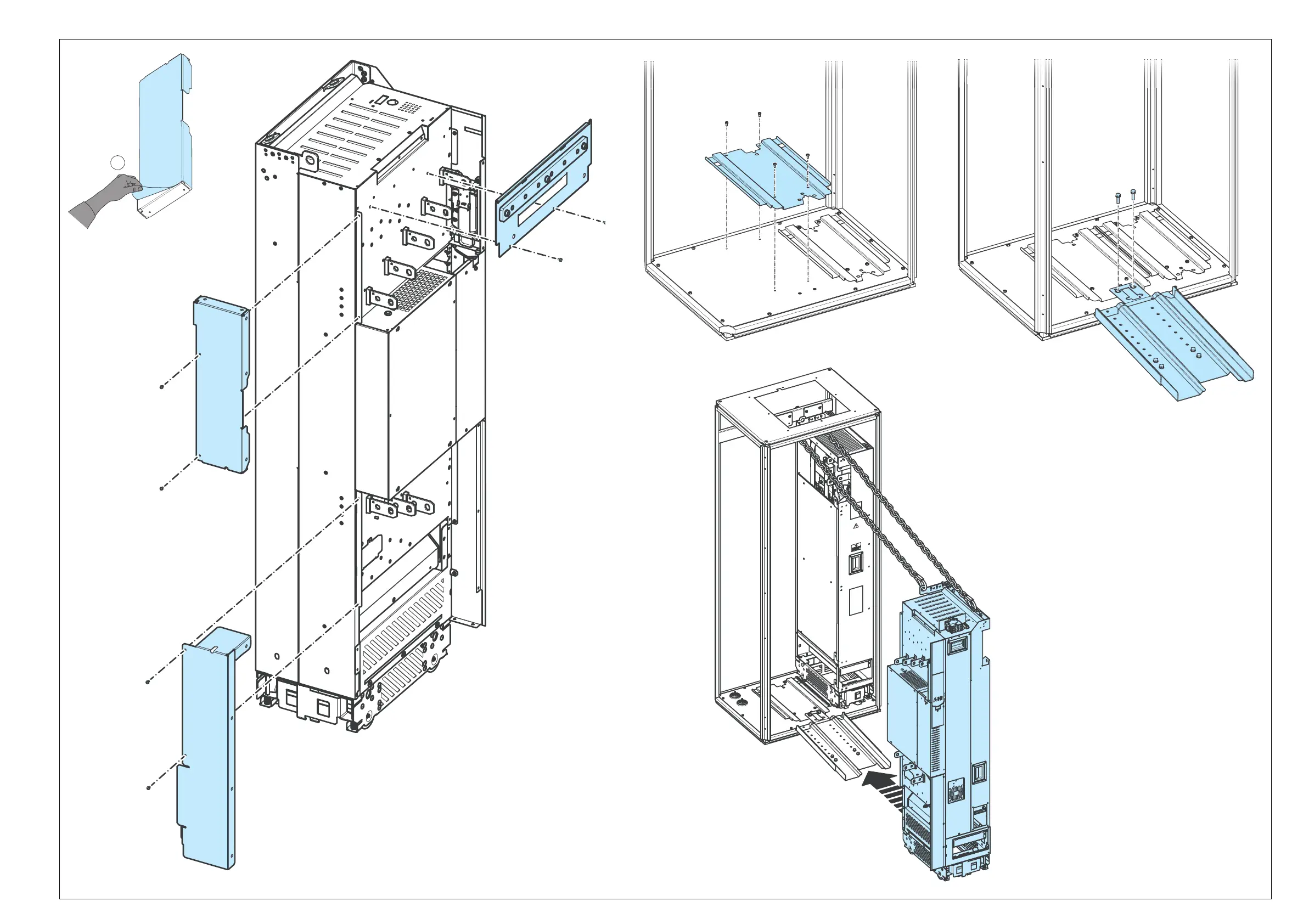

Step-by-step drawings for an installation example of standard drive configuration in Rittal TS 8 800 mm wide cabinet 245

Combi screw M4×8

Torx T20 2 N·m

Combi screw M4×8

Torx T20 2 N·m

Combi screw M4×8

Torx T20 2 N·m
