Installation instructions 93
Optional input power cable connection terminals and ground
busbar assembly (+H370)

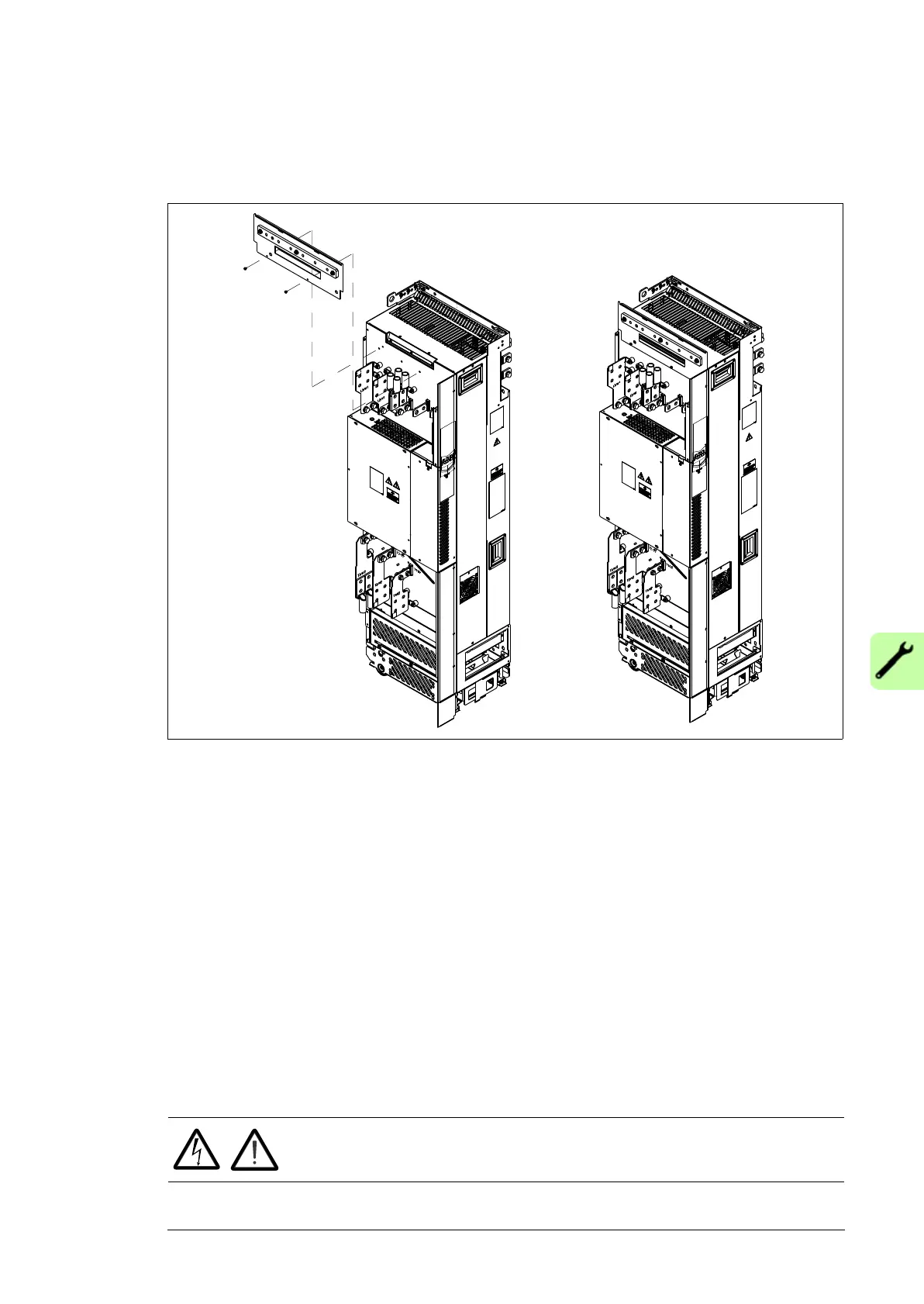

Install the metallic shroud with ground bar as shown below.
Connect the input power cable connection terminals as shown in section Step-by-step
drawings for an installation example of standard drive configuration in Rittal TS 8 800 mm
wide cabinet on page 243.
Drive module without full-size output cable connection terminals
(option +0H371) and IP20 shrouds (option +0B051)
The power cables can be connected directly to the drive module input and output terminals
with cable lugs or by busbars. The drive module can also be installed self standing on the
floor in an electrical equipment room when the power cable terminals and electrical parts
are protected against contact and the drive module is grounded properly.
Installing the EMC filter (option +E202)
See ARFI-10 EMC filter installation guide (3AFE 68317941 [English).
Connecting the power cables
WARNING! Obey the safety instructions in chapter Safety instructions. If
you ignore them, injury or death, or damage to the equipment can occur.
Combi screw M4×8
Torx T20 2 N·m
