Installation example with full cabling panels (option +H381) 147

Miscellaneous

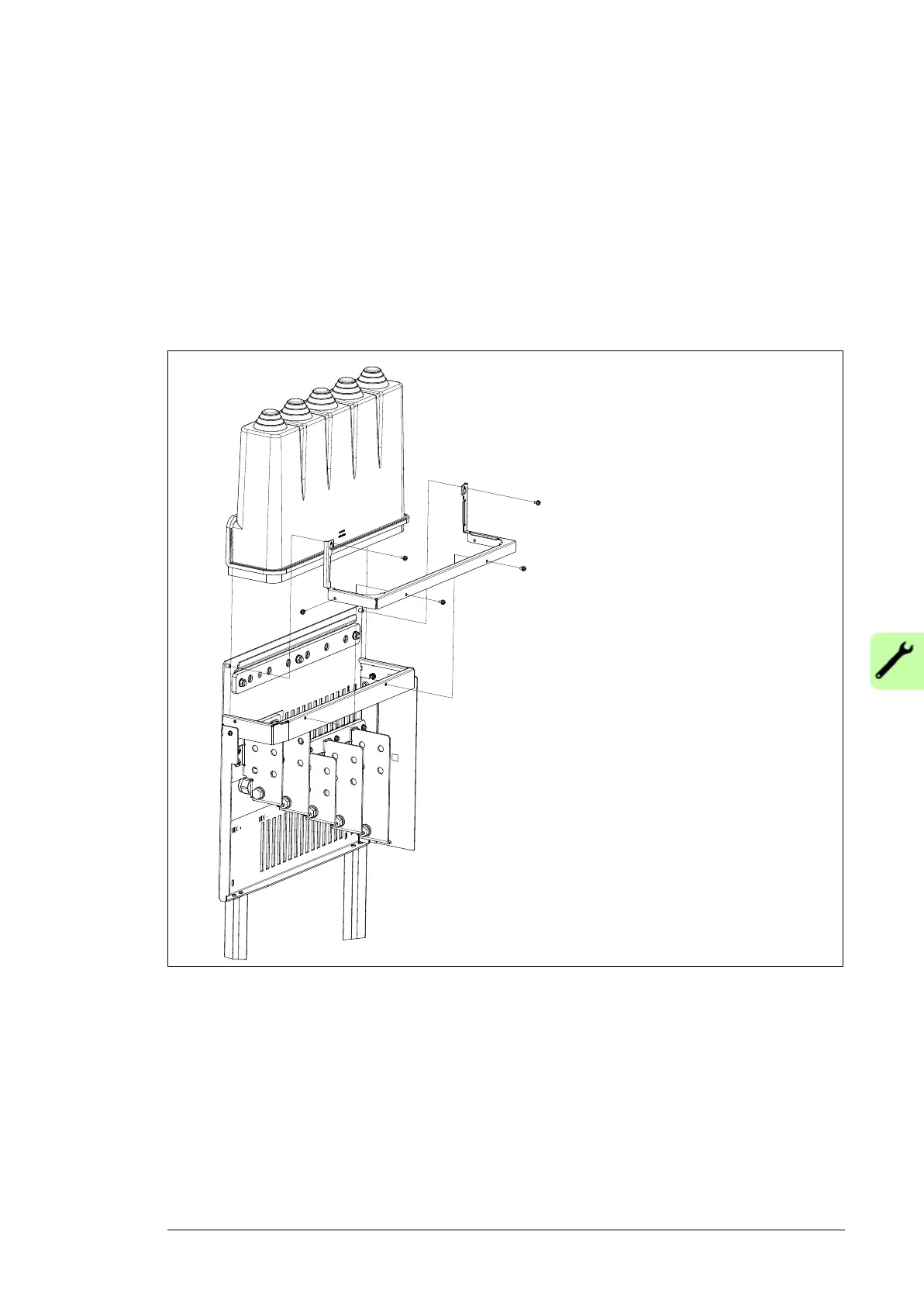

 Installing the rubber grommet

To get IP20 degree of protection for the drive module, install the input power cables

through the rubber grommet. Install the grommet as follows:

1. Cut adequate holes into the grommet for the input power cables.

2. Put the cables through the grommet.

3. Attach the grommet to the input cabling panel with five M4x8 Torx T20 screws as

shown below.
