ABB ACS880-34 - In Rittal TS 8 800 MM Wide Cabinet

To Next Page

To Previous Page

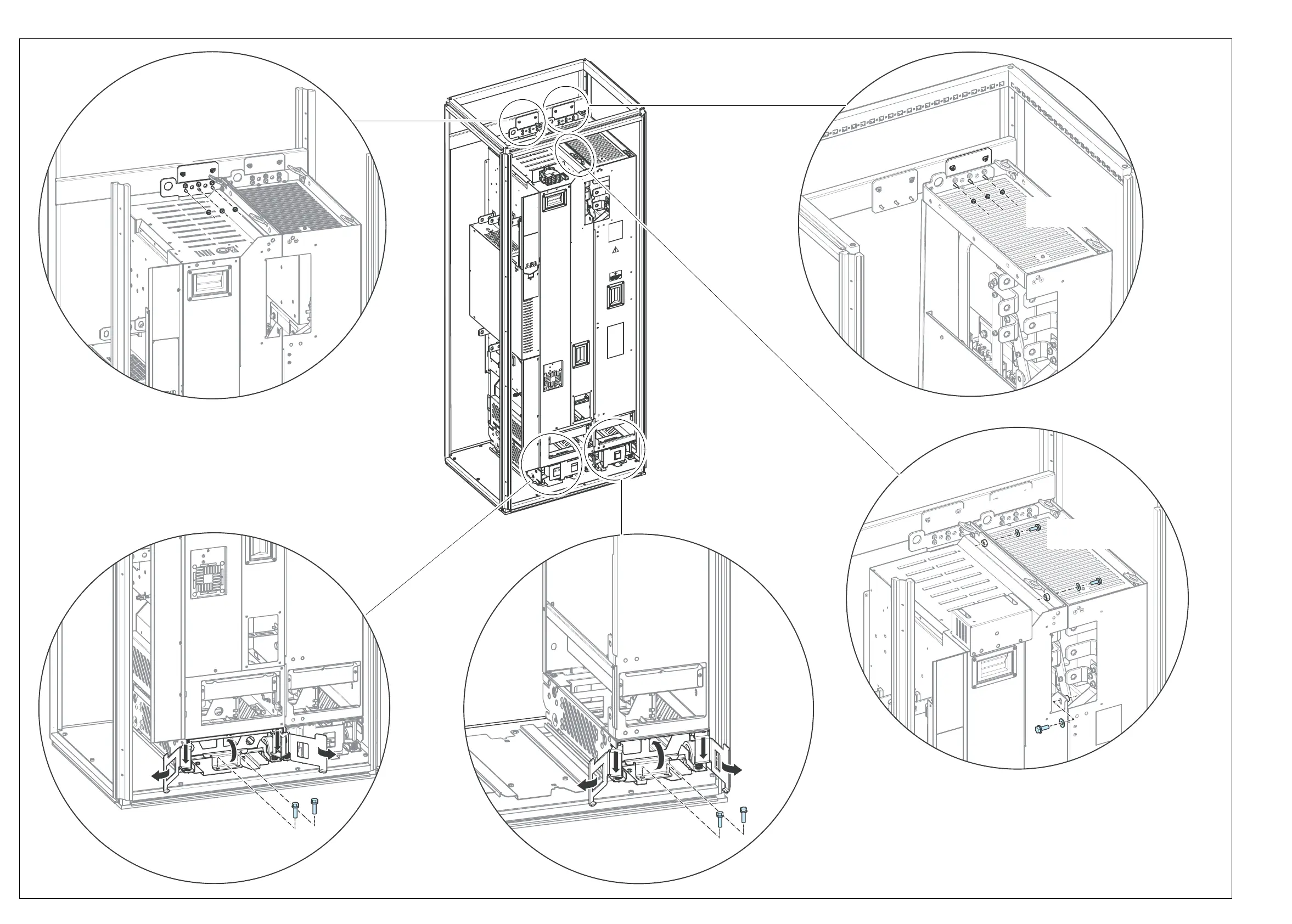

246 Step-by-step drawings for an installation example of standard drive configuration in Rittal TS 8 800 mm wide cabinet

Combi screw M8

24 N·m

Combi screw M8

24 N·m

Screws M10×30

and washer

M6 Serpress

8 N·m

M6 Serpress

8 N·m
