Operation principle and hardware description 37
Control panel
The ACS-AP-W control panel is the user interface of the drive. It provides the essential
controls such as Start/Stop/Direction/Reset/Reference, and the parameter settings for the
motor and line-side converter control programs.
One control panel can also be used to control several drives through a panel link; see
section Controlling several drives from one control panel through panel bus (page 97).
For the use of the control panel, see the firmware manual or ACX-AP-x Assistant control
panels user’s manual (3AUA0000085685 [English]).
In the standard drive module configuration, the control panel is located in the control panel
holder of the external control unit.
The control panel can be mounted on the cabinet door using a DPMP-01 mounting
platform (option +J410) or a DPMP-02 mounting platform (option +J413).
When the control unit is inside the drive module (option +P905), the control panel can be
mounted on the drive module (option +J414).

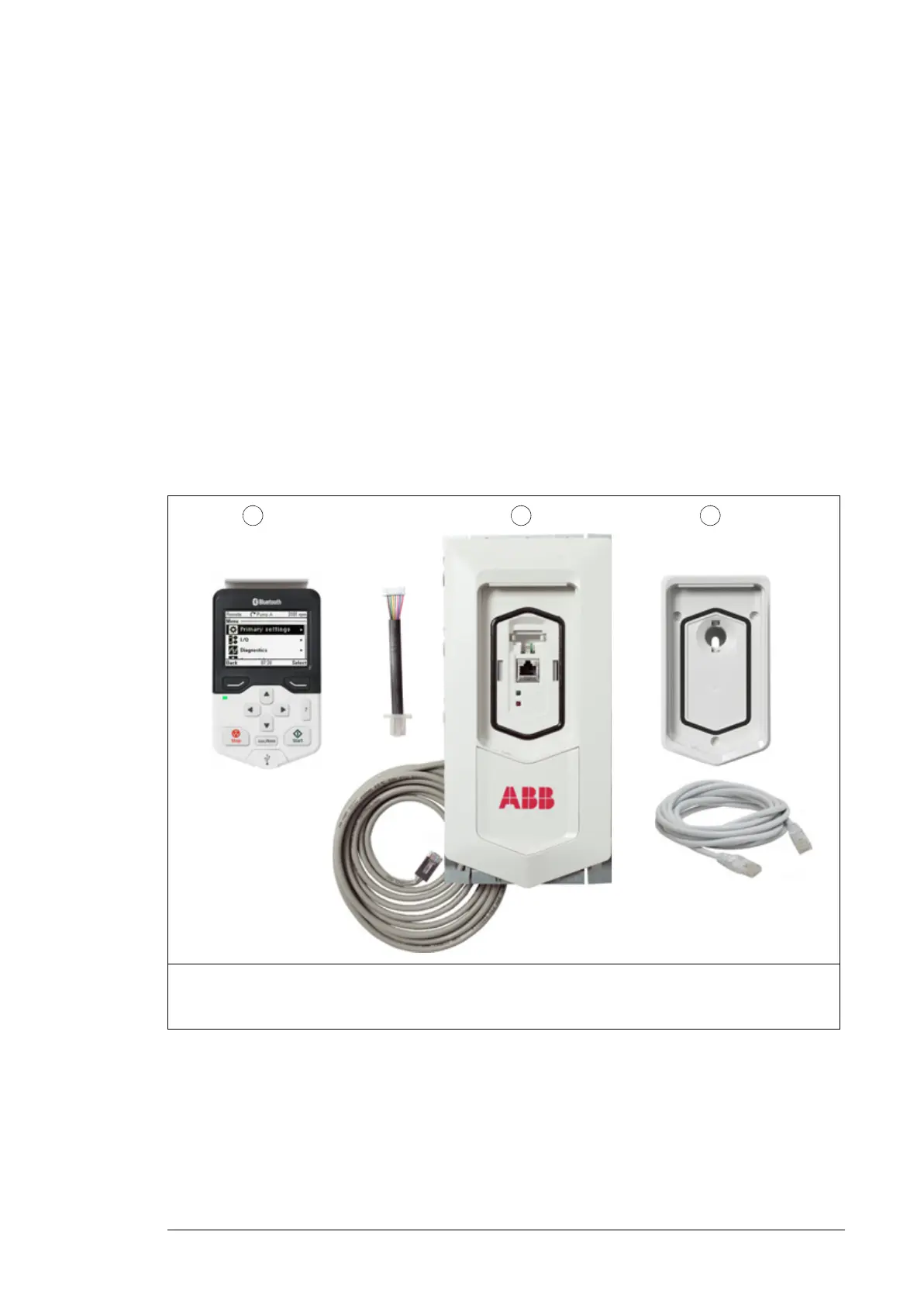

1 ACS-AP-W Assistant control panel with Bluetooth interface
2 DPMP-01 door mounting kit (option +J410)
3 DPMP-02 door mounting kit for surface mounting (option +J413)
