ABB ACS880-34 User Manual

78 Installation instructions
Moving and unpacking the unit
WARNING! Obey the safety instructions in chapter Safety instructions. If you
ignore them, injury or death, or damage to the equipment can occur.
Move the transport package by pallet truck to the installation site.
Unpack the package as follows (see the package drawing on page 78):
• Cut the straps.
• Lift the lid.
• Lift the sleeve.
• Unpack the top boxes (drive module package).
• Insert lifting hooks to the drive/LCL filter module lifting eyes and lift the module to the
installation place.

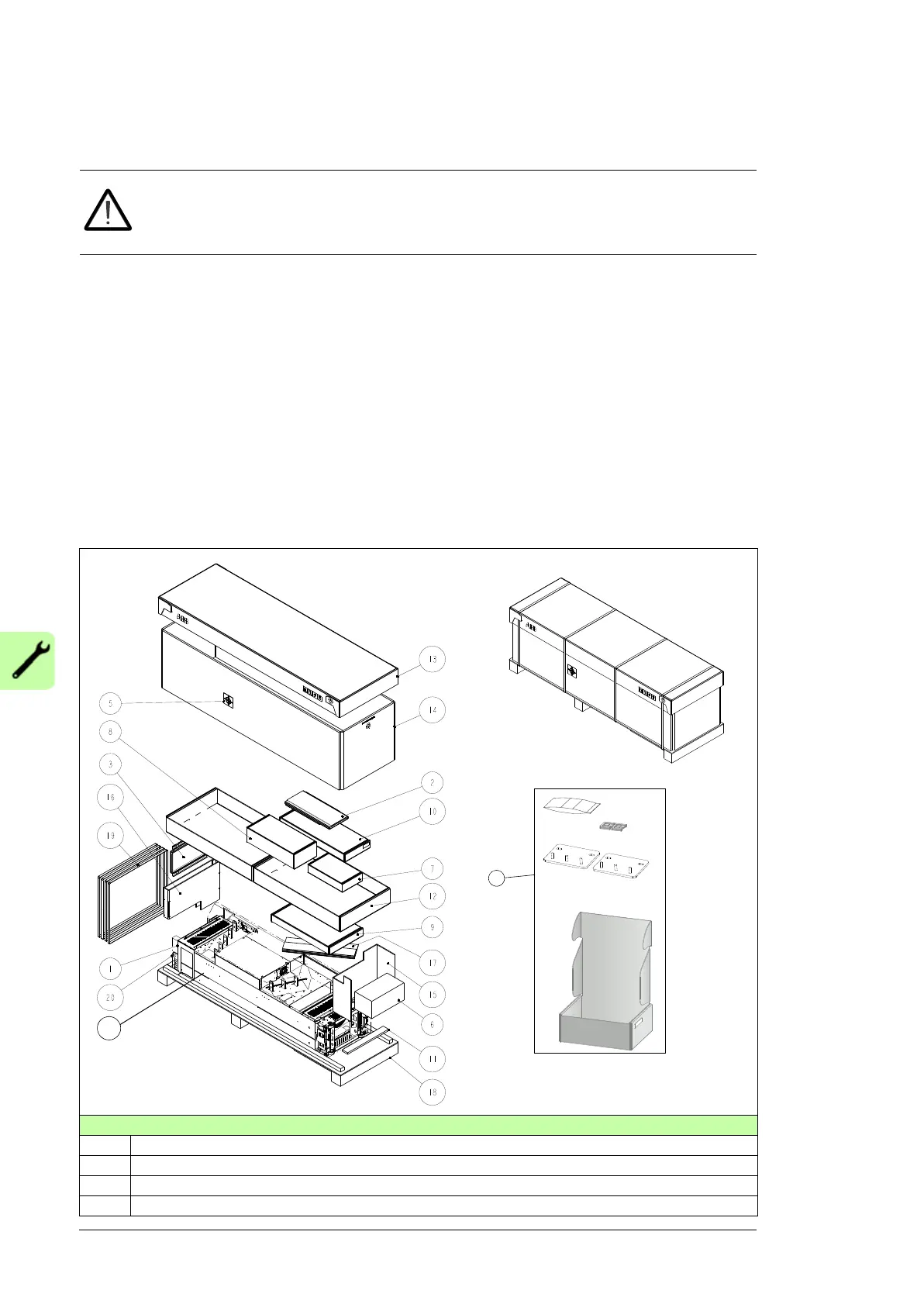

 Package drawings
Drive module package without option +E202
Transport package contents
1 Finger guard
2 Pedestal guide plate for the LCL filter module
3 Pedestal guide plate for the drive module
4 Accessories box, see page 84.
21
3axd50000174287_091117
4
