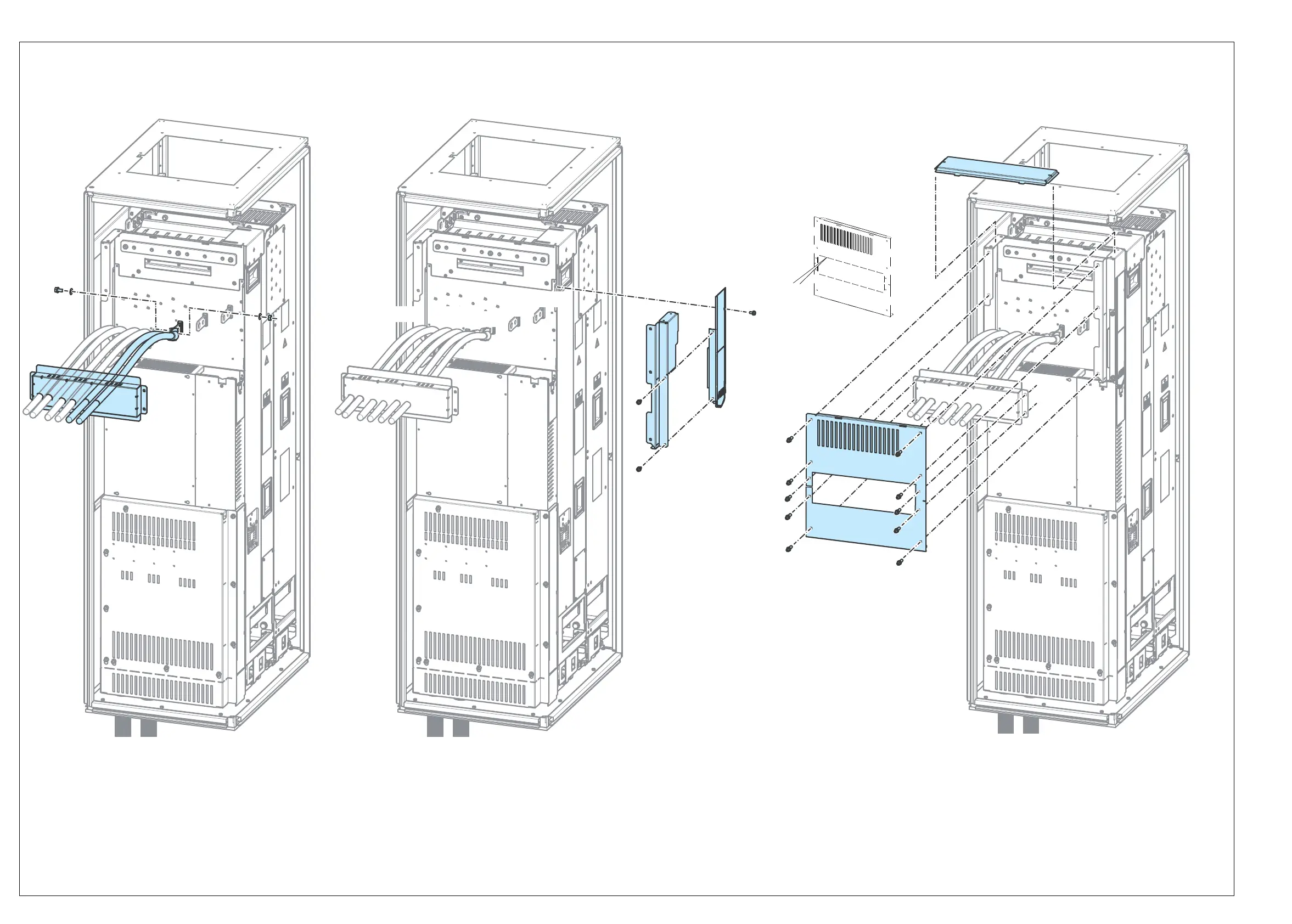

252 Step-by-step drawings for an installation example of standard drive configuration in Rittal TS 8 800 mm wide cabinet

Combi screw

M4×10 Torx T20

2N·m

Combi screw

M4×10 Torx

T20 2 N·m

Combi screw

M6×20 Torx T25

2N·m

L3/W1 L2/V1

L1/U1

UDC+

UDC-

Default Chapter5
