Technical data 197

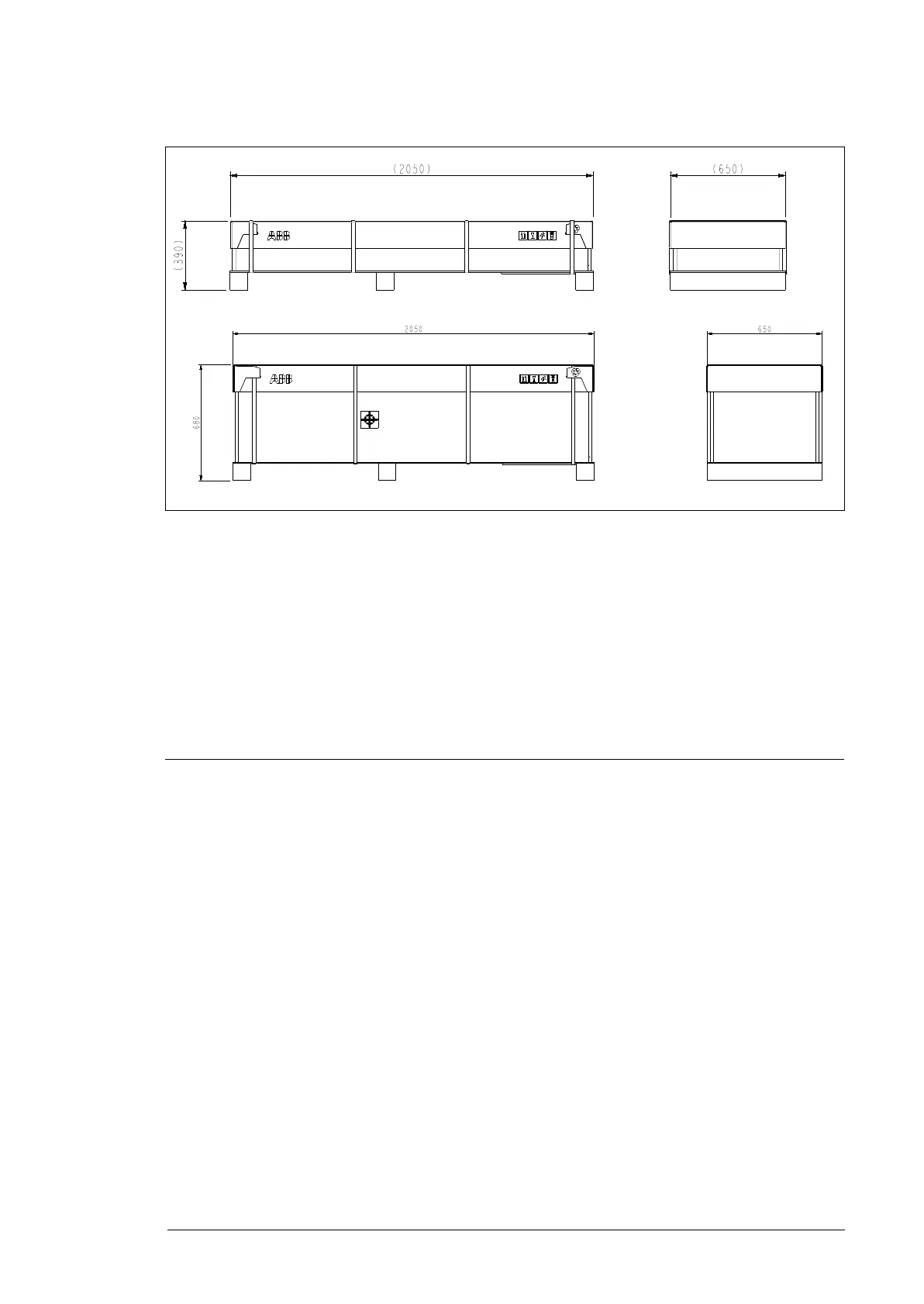

Package Plywood and cardboard, bands PP.
Disposal The main parts of the drive can be recycled to preserve natural resources and
energy. Product parts and materials should be dismantled and separated.
Generally all metals, such as steel, aluminum, copper and its alloys, and
precious metals can be recycled as material. Plastics, rubber, cardboard and
other packaging material can be used in energy recovery. Printed circuit
boards and DC capacitors (C1-1 to C1-x) need selective treatment according
to IEC 62635 guidelines. To aid recycling, plastic parts are marked with an
appropriate identification code.
Contact your local ABB distributor for further information on environmental
aspects and recycling instructions for professional recyclers. End of life
treatment must follow international and local regulations.
Applicable standards
The drive complies with the following standards. The compliance with the European Low Voltage Directive is
verified according to standard EN 61800-5-1.
EN 60204-1:2006 + AI:2009 +
AC:2010
Safety of machinery. Electrical equipment of machines. Part 1: General
requirements. Provisions for compliance: The final assembler of the machine
is responsible for installing
- emergency-stop device
- supply disconnecting device.
IEC/EN 60529:1981 +A1:1999
+ A2: 2013
Degrees of protection provided by enclosures (IP code)
EN 61000-3-12:2011 Electromagnetic compatibility (EMC) - Part 3-12: Limits - Limits for harmonic
currents produced by equipment connected to public low-voltage systems
with input current
The standard is met with a Rsce (transformer short circuit ratio) of 350 or
higher.
IEC/EN 61800-3:2004 +
A1:2012
Adjustable speed electrical power drive systems. Part 3: EMC requirements
and specific test methods
IEC/EN 61800-5-1:2007 Adjustable speed electrical power drive systems. Part 5-1: Safety
requirements – electrical, thermal and energy
IEC/EN 60664-1:2007 Insulation coordination for equipment within low-voltage systems. Part 1:
Principles, requirements and tests.
UL 61800-5-1: First edition
2012
Standard for Adjustable Speed Electrical Power Drive Systems - Part 5-1:
Safety Requirements - Electrical, Thermal and Energy
NEMA 250:2014 Enclosures for Electrical Equipment (1000 Volts Maximum)
CSA C22.2 No. 274-17 Industrial control equipment
