Operation principle and hardware description 39

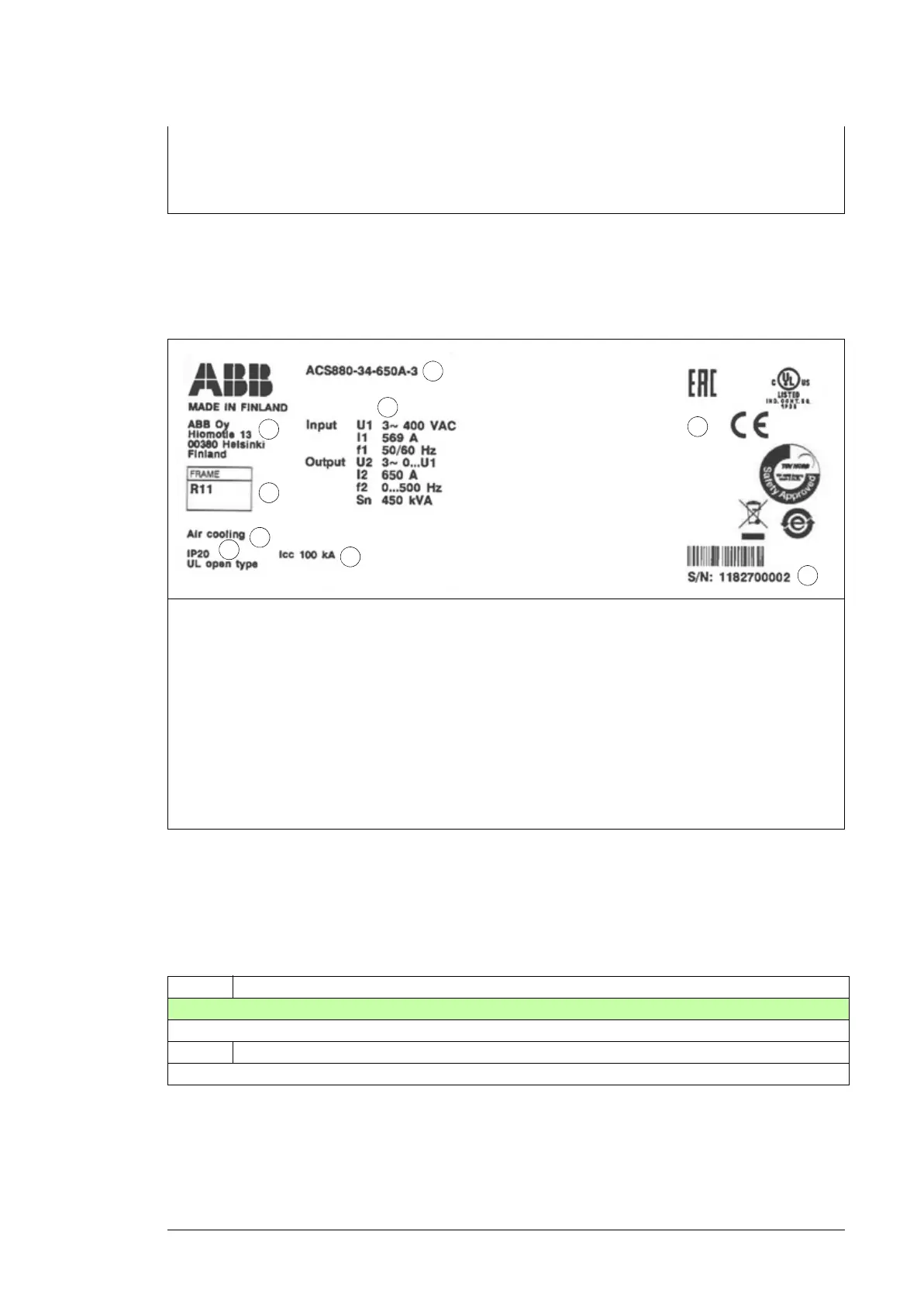

Type designation label
The type designation label includes a rating, markings, a type designation and a serial
number, which allow individual recognition of each drive module. The type designation
label is located on the front cover. An example label is shown below.
Type designation key
The type designation contains information on the specifications and configuration of the
drive module. The first digits from left express the basic configuration. The optional
selections are given thereafter, separated by plus signs, eg, +J410. The main selections
are described below. Not all selections are available for all types.
11 Motor-side converter
12 Socket for external ISU control (not required for normal operation of the drive)
13 Brake chopper (optional, see page 229
14 Brake resistors (optional, see page 229
1 Type designation, see section Type designation key on page 39.
2 Manufacturing address
3 Frame size
4 Cooling method
5 Degree of protection
6 Ratings, see section
7 Short-circuit withstand strength, see section
8 Valid markings
9 Serial number. The first digit of the serial number refers to the manufacturing plant. The next four
digits refer to the unit’s manufacturing year and week, respectively. The remaining digits complete the
serial number so that there are no two units with the same number.
Code Description
Basic code, eg, ACS880-04-880A-3
Product series
ACS880 ACS880 product series
Type
