Installation instructions 81
Boxes
22 Drive module with factory installed options and multilingual residual voltage warning sticker, fastening
screws in a plastic bag, internal control unit with control cable clamp plate and factory installed optional
modules (option P905), control panel and cable or control panel with door mounting kit (option +J410),
delivery documents, printed multilingual installation and start-up quick guides and manuals CD. Other
printed manuals with option +R700.
3AXD50000009484
3
4
8
7
1
12
10
6
2
5
9
11
14
13
15

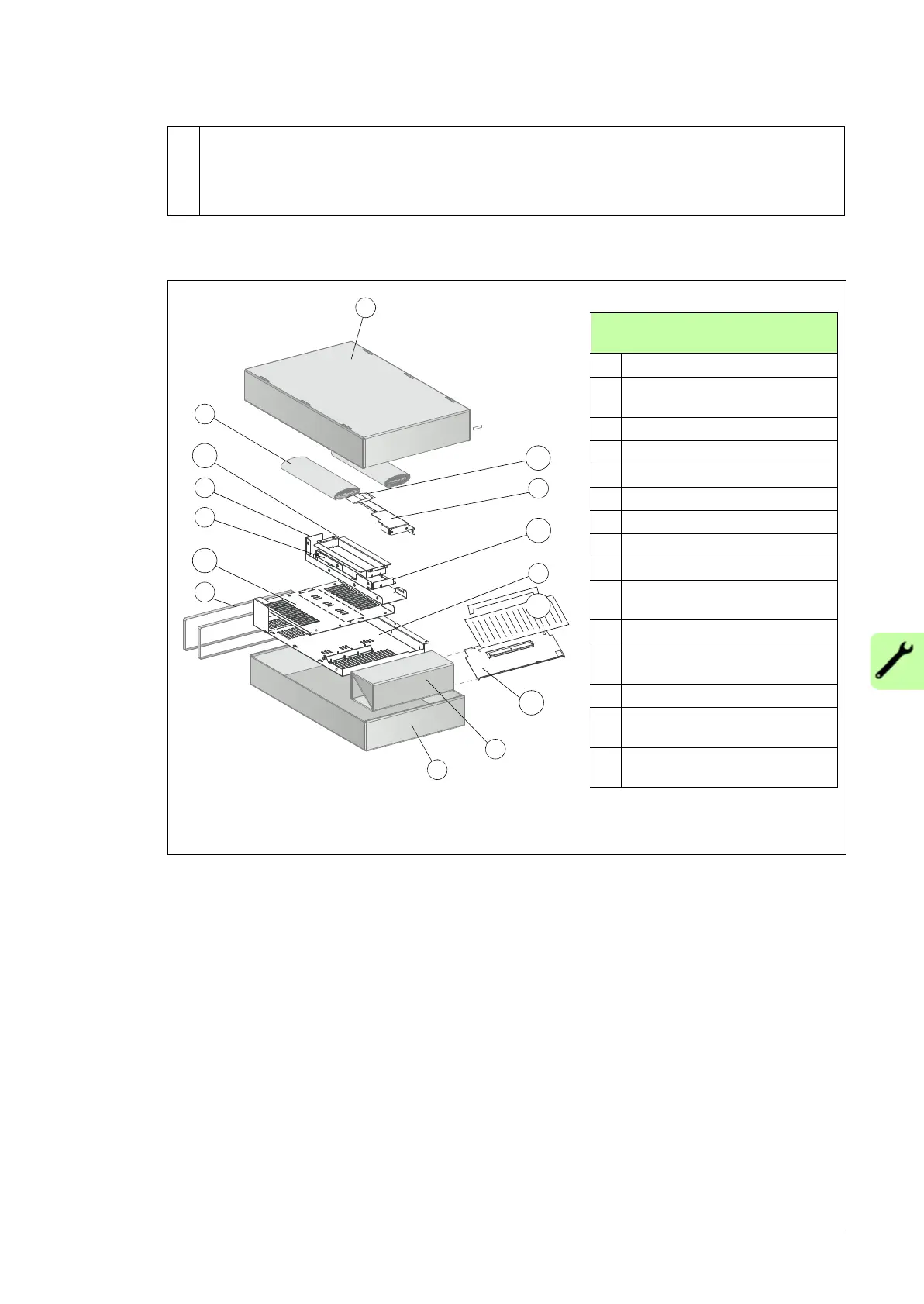

Shroud box with standard drive
module configuration
1 Paper fill
2 Clear plastic shroud for output
cabling
3 Cardboard box cover
4 Cardboard box bottom
5 Support
6 Bands
7 Back clear plastic shroud (lower)
8 Back clear plastic shroud (upper)
9 Front clear plastic shroud
10 Clear plastic shroud for input
cabling
11 Top clear plastic shroud
12 Clear plastic shroud for input
cable entry from side
13 Screws in a plastic bag
14 Metallic shroud without ground
bar
15 Bottom grille and mounting
bracket. Not used.
