16 Safety instructions
General safety in installation, start-up and maintenance
These instructions are for all personnel that install the drive module and do maintenance
work on it.
WARNING! Obey these instructions. If you ignore them, injury or death, or
damage to the equipment can occur.
•Use protective gloves when working on the drive module.
• Handle the drive module carefully:
• Use safety shoes with a metal toe cap to prevent foot injury.
• Lift the drive module and LCL filter module separately and only by the lifting lugs.
Make sure that the module does not topple over when you move it on the floor:

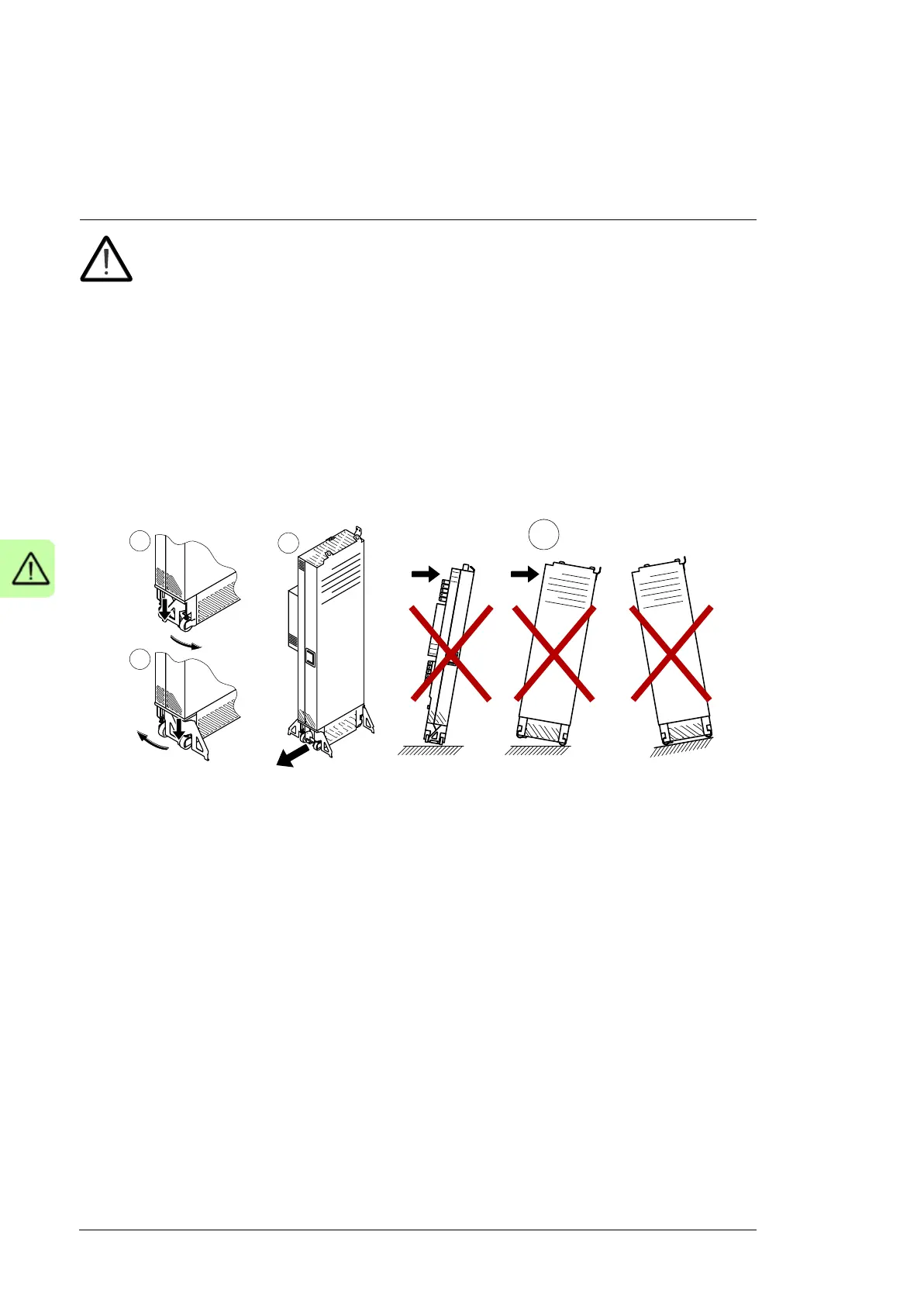

Open the support legs by pressing each leg a little down (1, 2) and turning it aside.
Whenever possible secure the module also with chains.
• Do not tilt the drive module (A). It is heavy and its center of gravity is high. The
module overturns from a sideways tilt of 5 degrees. Do not leave the module
unattended on a sloping floor.
• Do not use the module installation ramp with plinth heights which exceed the
maximum height marked on the ramp. (The maximum plinth height is 50 mm
[1.97 in] when the telescopic ramp is fully retracted and 150 mm [5.91 in] when
the ramp is fully extended.)
• Attach the module installation ramp carefully.
• To prevent the drive module from falling, attach its top lifting lugs with chains to the
cabinet frame before you push the module into the cabinet and pull it from the
cabinet. Work carefully preferably with help from another person as shown below.
