Connecting a PC
You need a control panel to connect a PC to the drive module. Connect the control panel
to the drive control unit as described in section Connecting a control panel on page 96.
WARNING! Do not connect the PC directly to the control panel connector of the
control unit as this can cause damage.

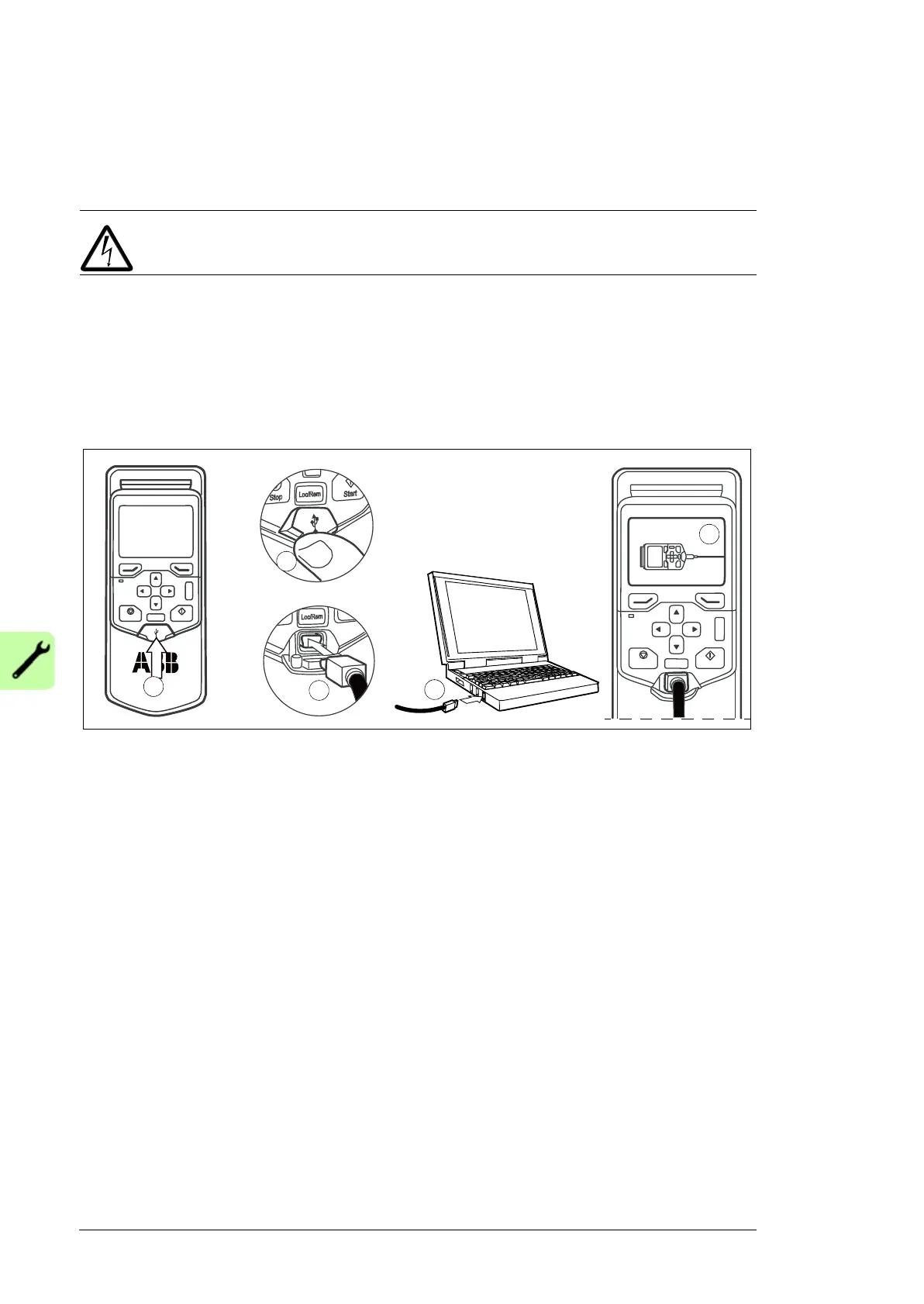

To connect a PC to the control panel with a USB data cable (USB Type A <-> USB Type
Mini-B):
1. Lift the USB connector cover on the control panel from bottom upwards.
2. Insert the USB cable Mini-B plug in the control panel USB connector.
3. Insert the USB cable A-plug in the USB connector of the PC (a). -> The panel displays:
USB connected (b).
Note 1: When a PC is connected to the control panel, the control panel keypad is disabled.
In this case, the control panel acts as a USB-RS485 adapter.
?
Start
Stop
Loc/Rem
?
Start
Stop
Loc/Rem
USB connected
2
3b
3a
1
1
