REAR WHEEL AND BRAKE DISC
CHECK/REPLACEMENT OF WHEEL BEARINGS
Check:
• Wheel bearings
If the front wheel turns irregularly or is loose, replace the wheel
bearings.
Replace:
• Wheel bearings

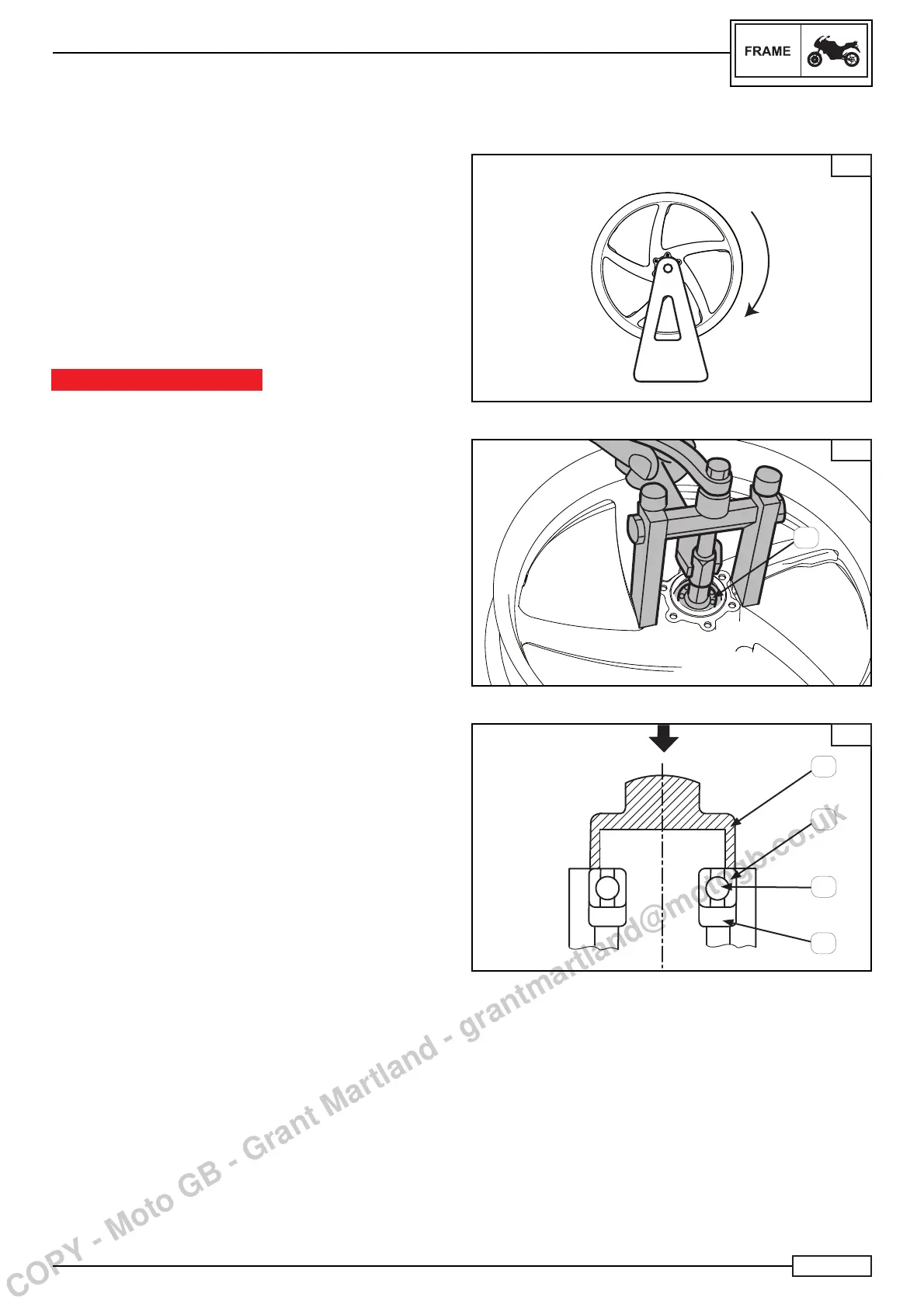

Remove the bearings from the wheel ”A” with a generic bearing
extractor Fig. B.
Fit the new wheel bearing, following the removal steps in re-
verse order.
IMPORTANT NOTICE
During the bearing insertion, do not touch the inner seat “B”
or the ball bearings of the wheel “C”. Contact must only oc-
cur with the outer seat of bearing “D” Fig. C.
NOTE:_________________________________
Use a wrench that is adapted to the diameter of the outer
edge “E” of the wheel bearing, Fig. C.
A
B
A
C
E
D
C
B
