6 - 13

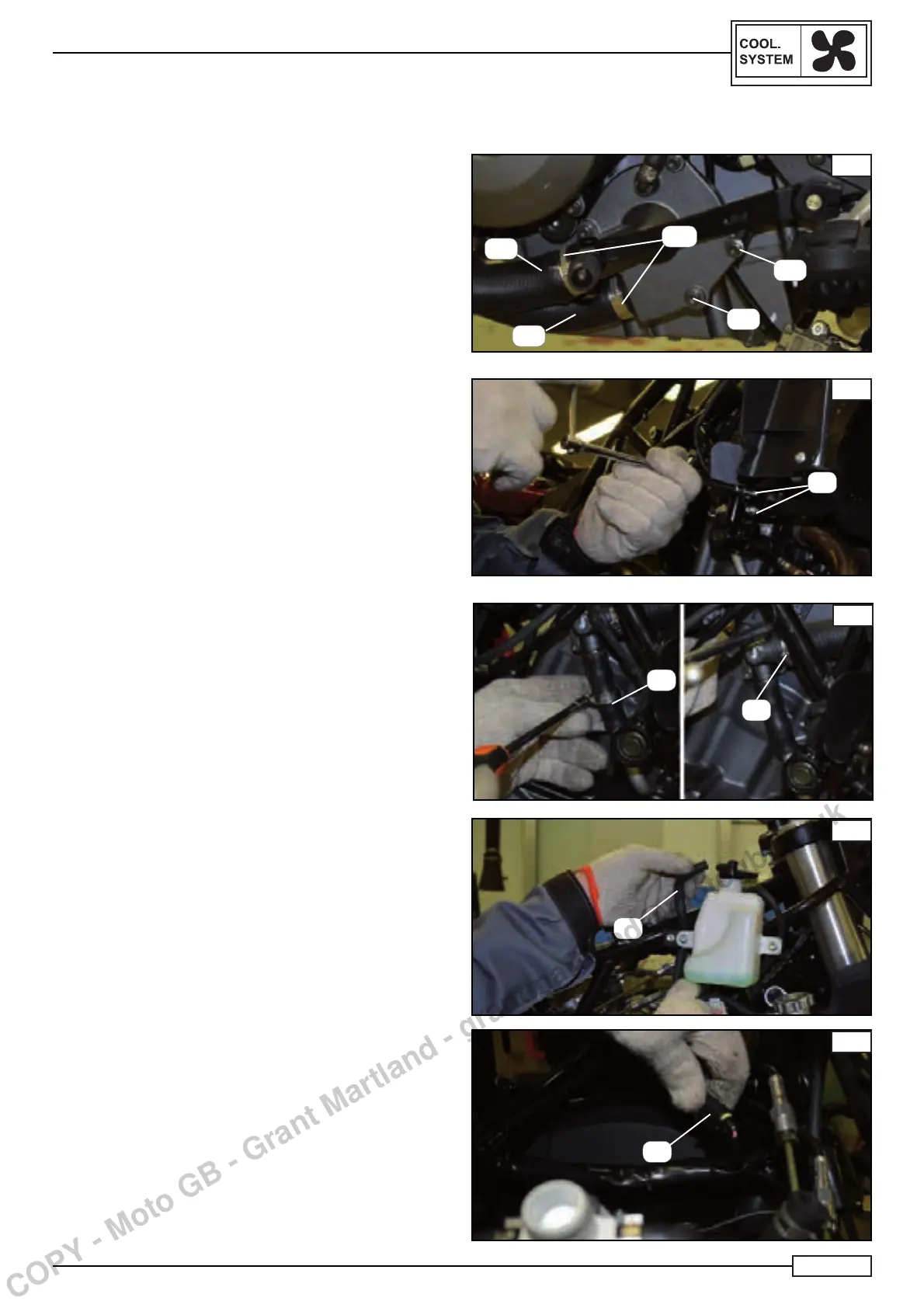

DISASSEMBLE THE RADIATOR
Remove:
• Side bodywork, see the section in Chapter 4 entitled “front
bodywork”.
NOTE:_________________________________
Drain out all coolant by taking out the screw (12*) before
proceeding with removal operations, as shown in Fig. A.
• the bands (19*) Fig. A
• water inlet manifold (2) Fig. A
• water return manifold (3) Fig. A
• screws (9*) Fig. A
NOTE:________________________________
To make it easier to drain out coolant, it is necessary to
open the radiator cap at the same time.
Remove:
• the screws (3) fastening the radiator bracket to the frame.
Fig. B
• the fastening screws on the opposite side.
• the fastening bands (4) and (5) Fig. C.
Disconnect
• the recirculation hose of the expansion tank (6) from the
coolant expansion tank Fig. D
• The cooling fan connector (7) Fig. E
B
3
C
D
4
5
E
6
7
RADIATOR
A
19*
2
3
9*
12*
