Benelli TRK 502 Service Station Manual

ELE. - 54

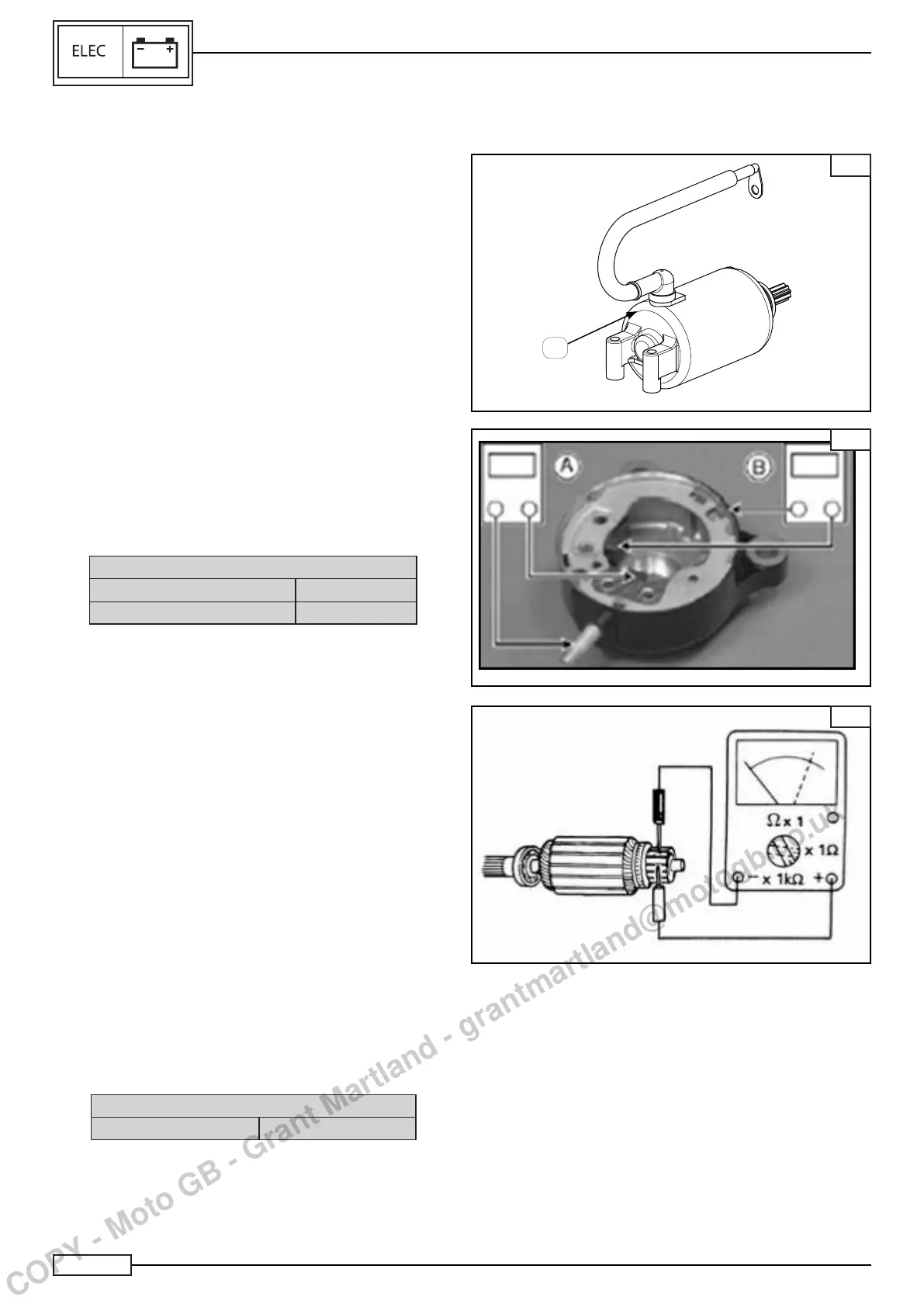

STARTER
A
The starter (1), Fig. A, is a part that can be replaced totally. If the
starter is damaged, replace it.
Remove:
• Release the coiled spring of brushes.
• Remove the casing framework.
• Use an ohmmeter to measure the resistance between the
wire terminal and the insulated brush.
Reading should be max 0.3 ohm.
Measure the resistance between the wire terminal and the
brush holder.
• Make sure the brush does not come in contact with the
casing.
• Readingshouldbeinnite(noreading).
•
Remove:
• The brush holding plate and the brushes.
Measure:
• The brush length and replace in case of wearing exceeding
the allowed limit.
Brush wear limit (length)
Standard 10 mm
Service Limit 5.0 mm
Check:
• The switch surface for wearing or discoloration.
• The framework test.
Make sure the insulating washer of the terminal bolt is inserted
properly into its housing and the tab on the brush holding plate
engages the housing notch of the plate.
• Remove the magnet housing by keeping the framework and
the brush holder united.
FRAMEWORK TEST
Check:
• The switch surface.
Replace if overly worn or damaged.
Measure:
• The resistance between each segment of the switch (Fig.
C).
A digital multitester is used for measurement.
NOTE:________________________________
Reading should be max 3 ohm.
Continuity of lower framework
coil resistance 3 Ω at 20°C (68°F)
1
ACTUATORS
B
C
