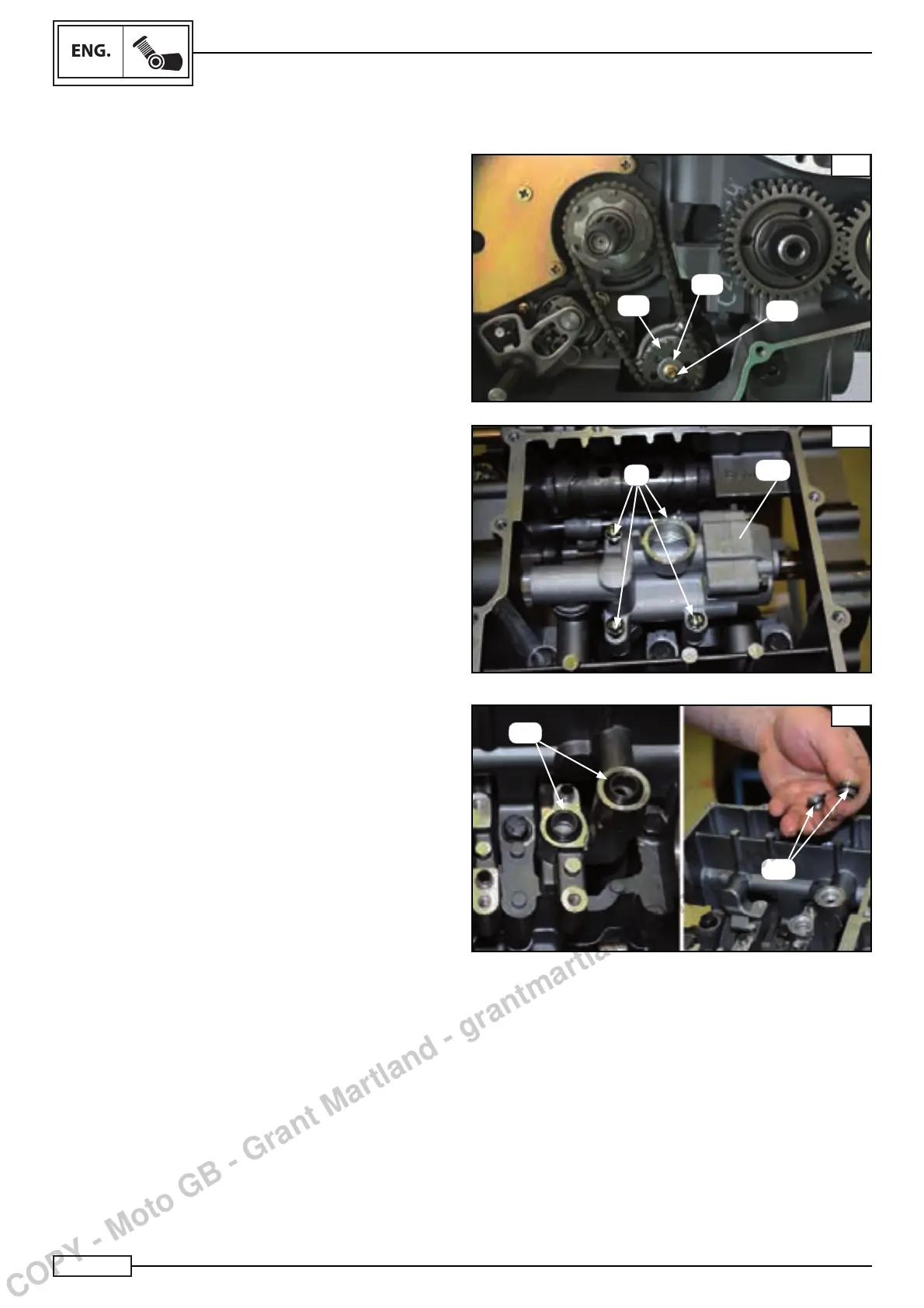

5 - 62
Remove:
1. Clutch, see chapter entitled “Clutch removal”.
• Use a wrench to block the pump control gear (5*)
• unscrew the screw (3*)
• take out the washer (4*) Fig. A.
• take out the pump pinion (5*)
2. Oil sump, see chapter entitled “Oil sump removal”.
Remove:
• the screws (1) Fig. B.
• slide out the pump body (13*) Fig. B.
Check:
• the integrity of the two pins (19*)
• the two O-rings (20*) Fig. C.
NOTE:_________________________________
Numbers marked (*) are part of the spare parts table in
Chapter 5 “Lubrication circuit”.
LUBRICATION SYSTEM
OIL PUMP REMOVAL
B
13*
1
C
19*
20*
A
5*
3*
4*
