5 - 55

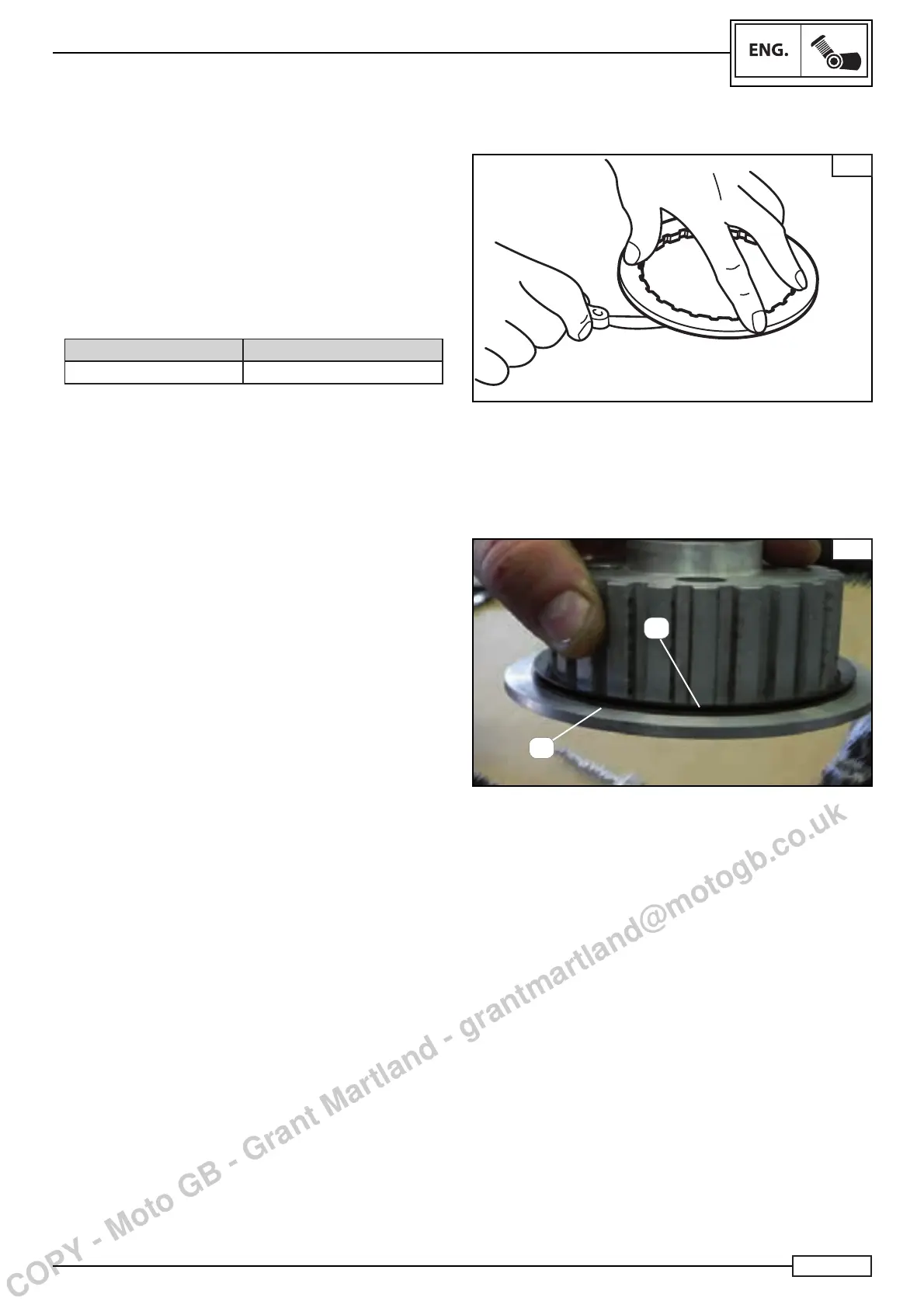

STEEL DISC CHECK
B
The following procedure applies to all steel discs.
Check:
• The steel disc.
If there is any damage/wear, replace the steel discs all together.
Measure:
• The warping of the steel discs Fig. B.
If not within specifi cations, replace the steel discs together.
Disc Twist limit
Disc 0.1 (0,-0.05) mm
NOTE:_________________________________
Carry out the check, placing the disc on a reference surface
and take the measurements using a thickness gauge.
DISC ASSEMBLY
Assemble the discs in the opposite order to their removal, star-
ting with the ring (8*) and then the belleville washer (7*) on the
clutch drum (9*)
NOTE:_________________________________
Numbers marked (*) are part of the spare parts table in
Chapter 5 “Clutch”.
C
7*
9*
CLUTCH
