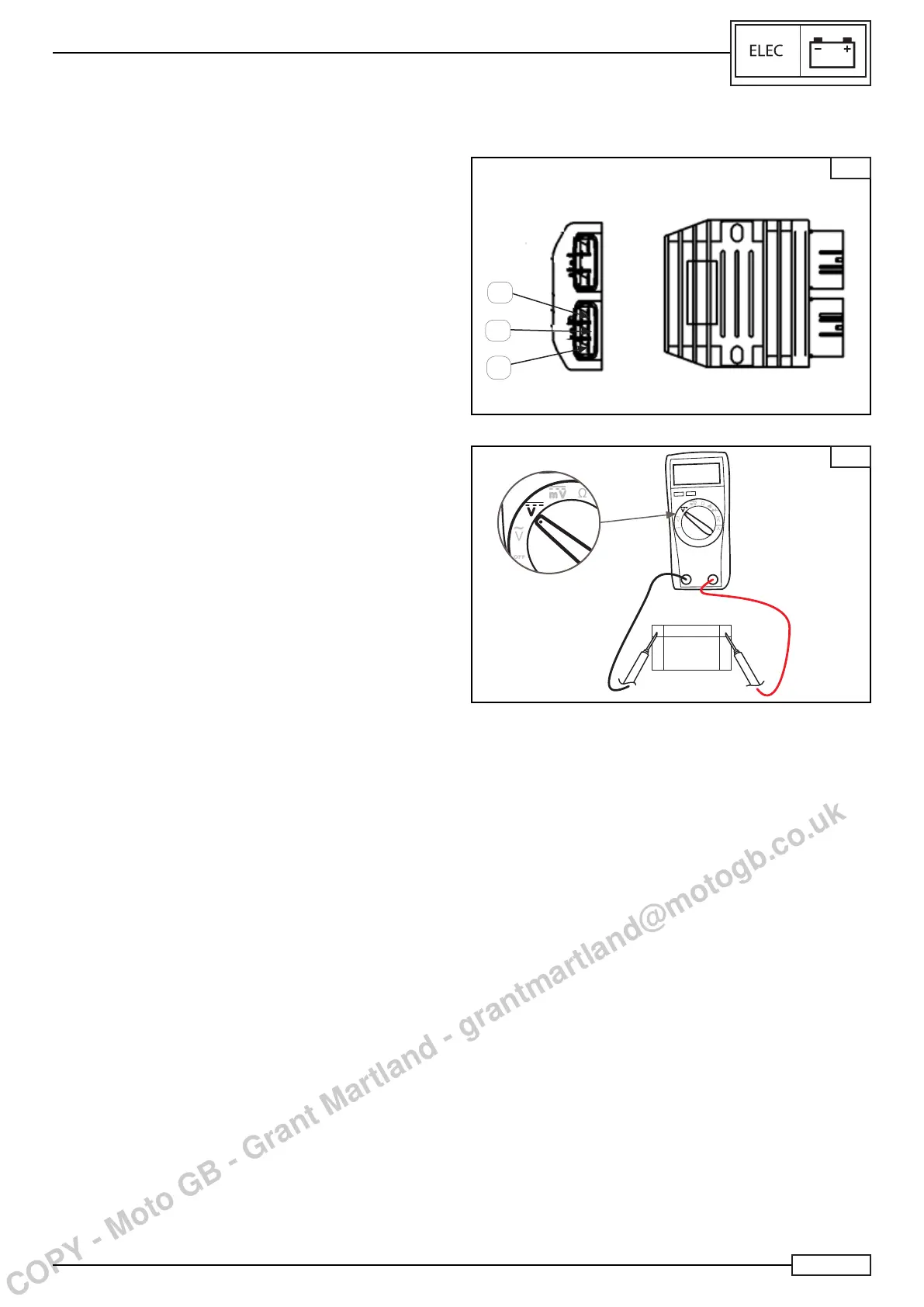

ELE. - 37
It is situated on the left side of the vehicle close to the water
radiator and allows balancing of electrical consumption via the
battery recharge (A), Fig. 6.
1. Multimeter selection: diode test.
2. Connect the black probe to the red line terminal of voltage
regulator. Connect the red probe to the white line terminal of
voltage regulator (white 1, white 2 and white 3). The pointer
shows a certain value (value range 0.1~0.5V) indicating the
need of replacing the regulator.
3. Connect the red probe to the red line terminal of voltage
regulator port. Connect the black probe to the white line
terminal of voltage regulator (white 1, white 2 and white 3).
The pointer shows a certain value (value range 0.3~0.8V)
indicating the need of replacing the regulator.
DEVICES
VOLTAGE REGULATOR
MULTIMETER
0 1 0
20
3 0
+-
+-
A
MULTIMETER
0 1 0
2 0
3 0
+-
+-
A
1
2
3
