Benelli TRK 502 Service Station Manual

4 - 30
ABS ANTI-LOCK BRAKING SYSTEM

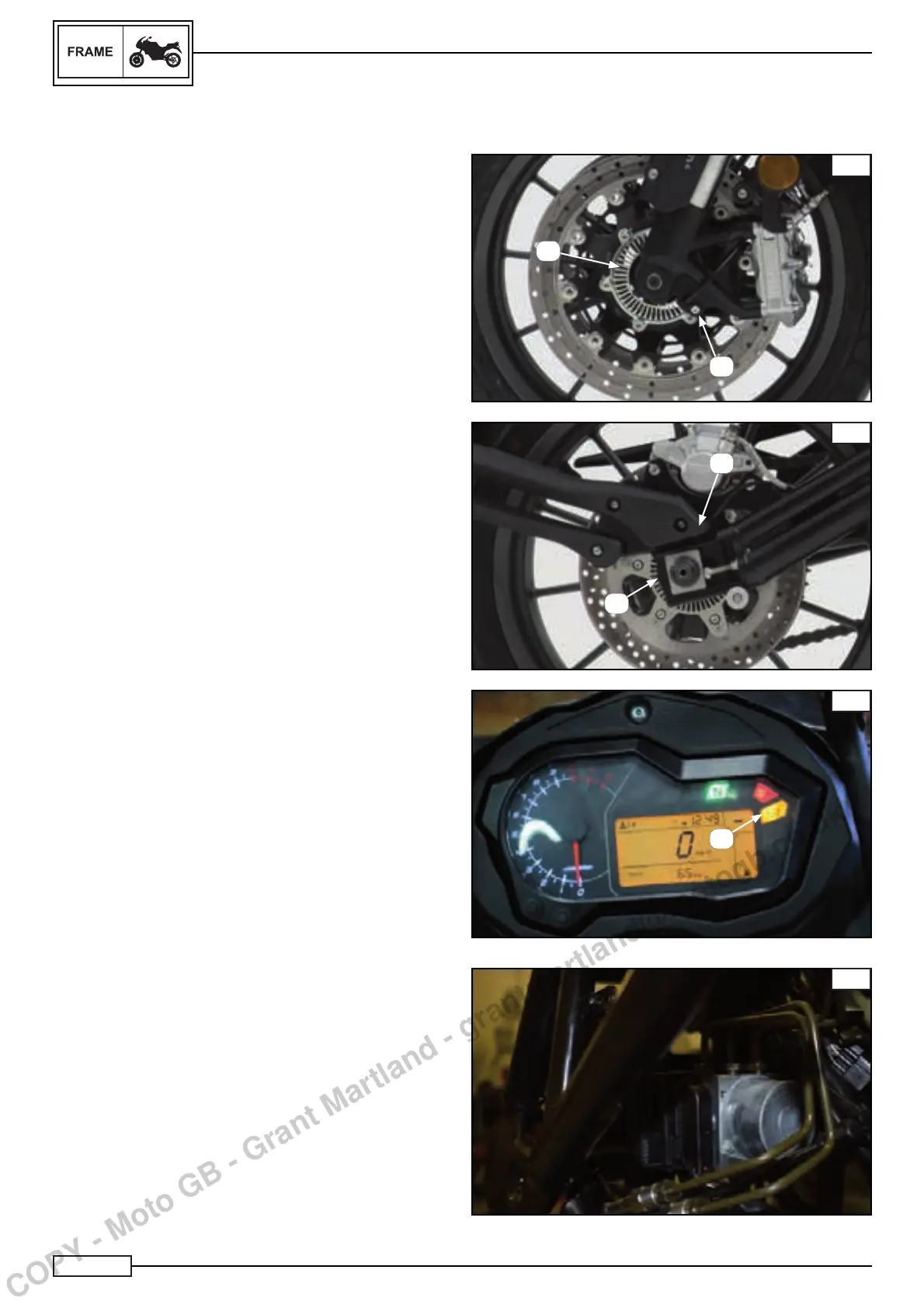

LOCATION OF THE COMPONENTS
A
The components that compose the anti-lock braking system are:
• phonic wheel sensor (A) – front wheel Fig. A
• phonic wheel (B) – front wheel Fig. A
• phonic wheel sensor (C) – rear wheel Fig. B
• phonic wheel (D) – rear wheel Fig. B
• ABS “yellow” warning light (E) Fig. C
• ABS hydraulic unit (F) Fig. D
A
B
B
C
D
C
E
D
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk
