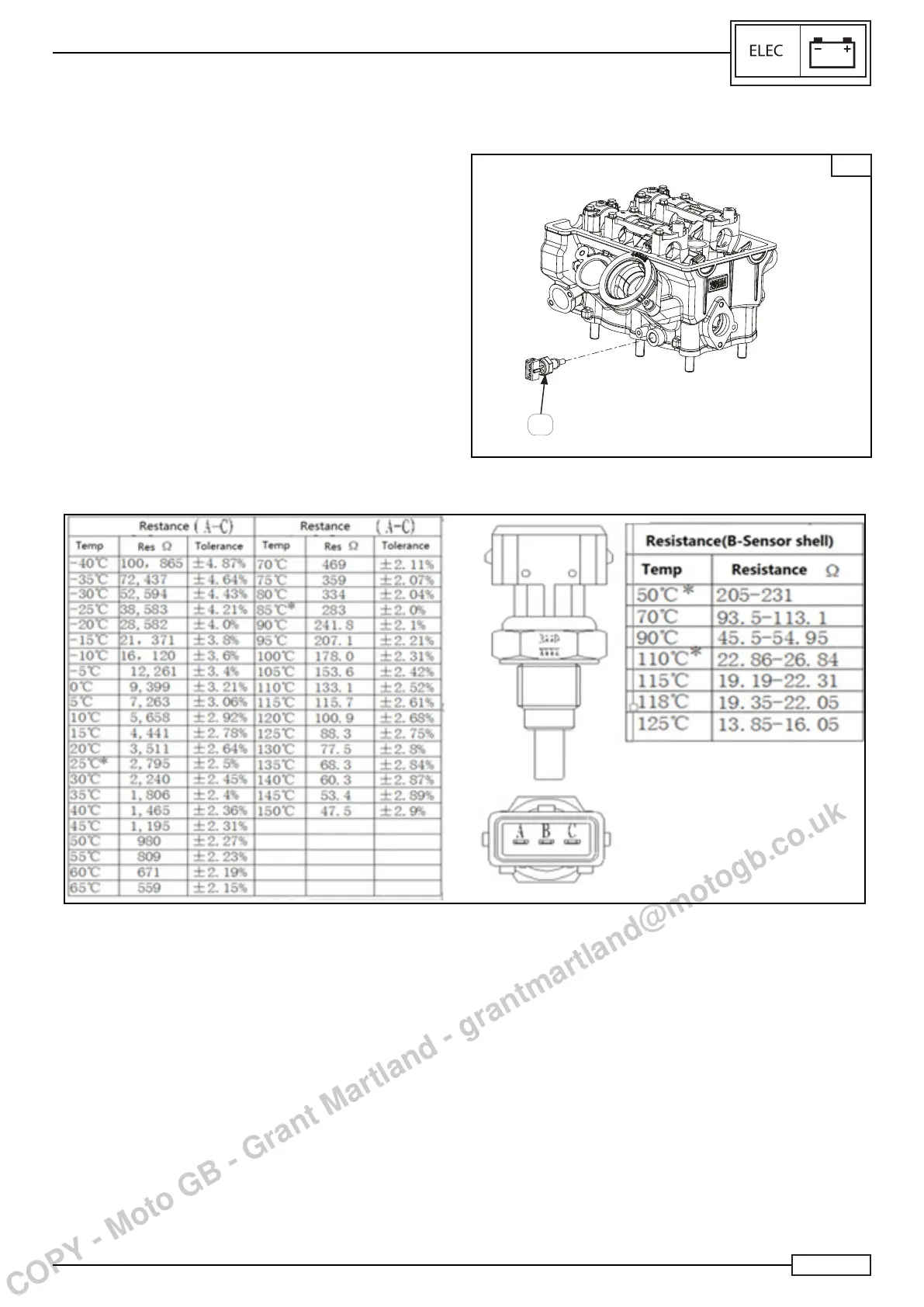

ELE. - 19
SENSORS
COOLANT TEMPERA
TURE SENSOR
A
A
It is situated close to the cylinder head (A), Fig.
A,
and calculates the information of temperature and coolant re-
ceived from the ECM that are used to optimize the supply to all
engine temperatures and to calculate the supply requirements in
the heat and cold setting off.
