4 - 91
CYCLING

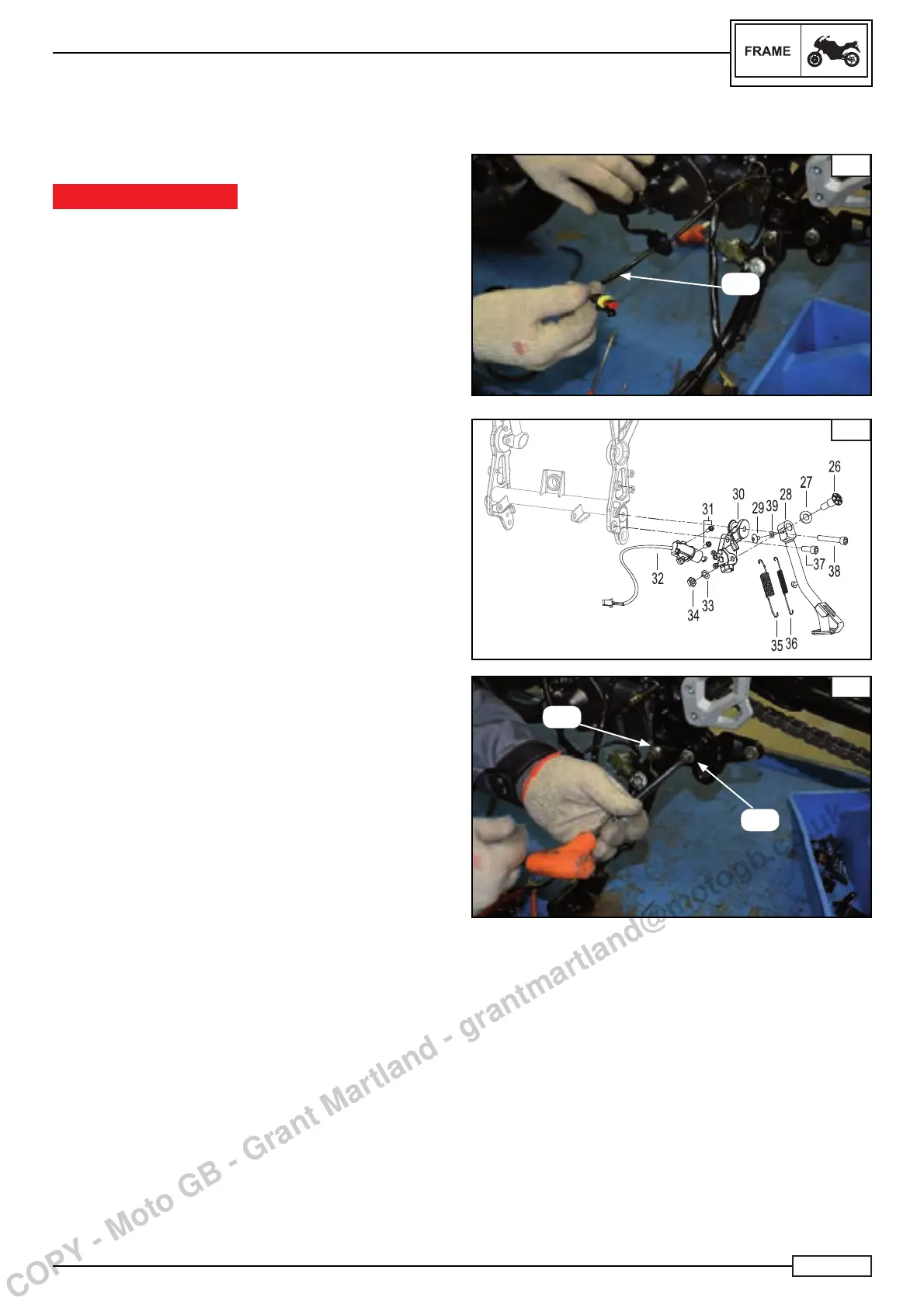

REMOVAL OF THE SIDE STAND
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Disconnect:
• the connector of the side stand sensor (32*) Fig. A
Remove:
• the internal spring (36*) Fig. B
• the external spring (35*) Fig. B
• the screws (37*) Fig. B-C
• the screw (38*) Fig. B-C
• The stand support plate (30*) Fig. B-C
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Cycling” paragraph “Stand/footrests”.
B
C
38*
37*
A
32*
