Benelli TRK 502 Service Station Manual

3 - 27
FRAME/CHECKING BRAKE FUID LEVEL

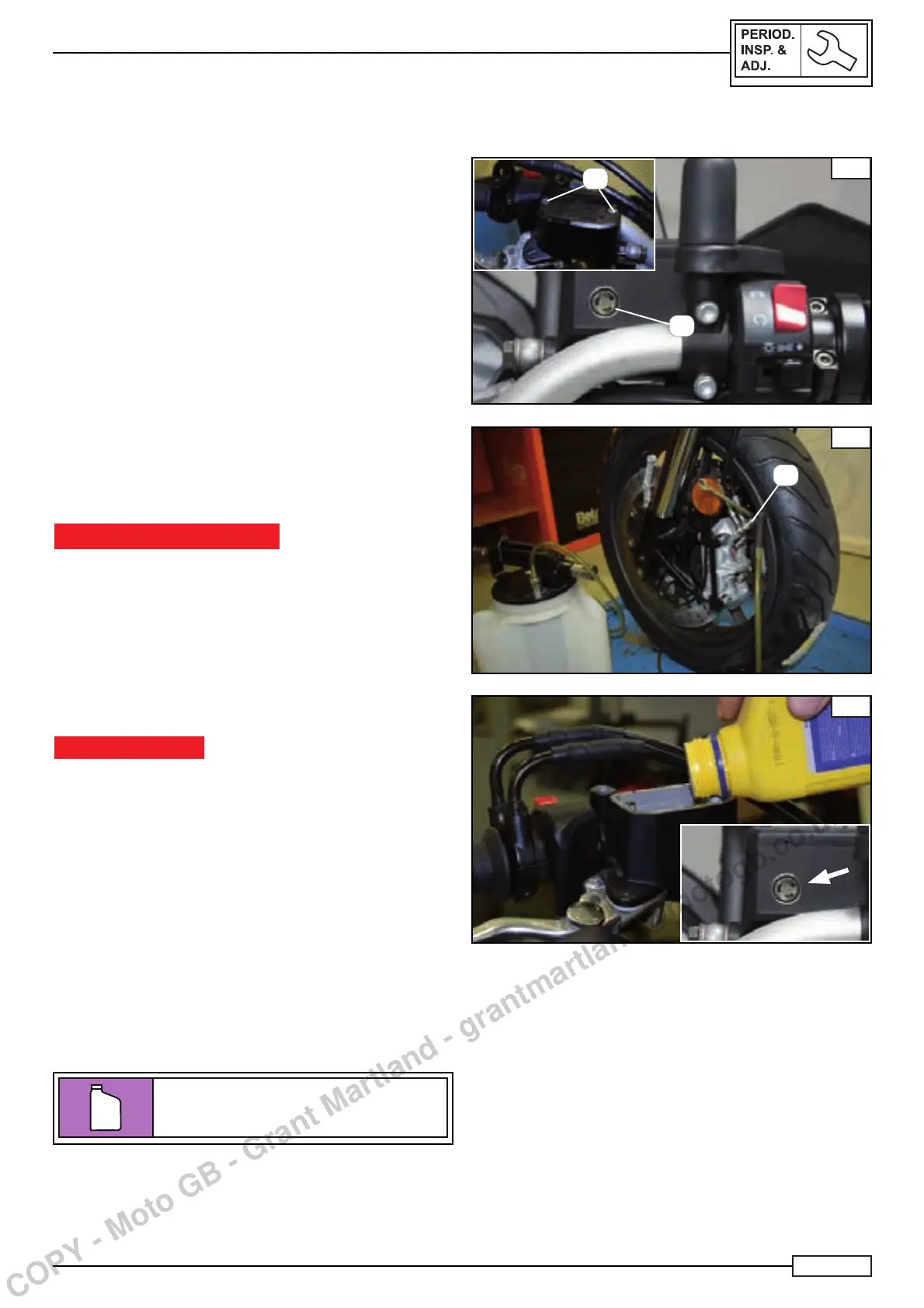

CHECKING THE FRONT BRAKE LIQUID LEVEL/TOPPING UP
A
Park:
• The motorcycle on a level surface.
NOTE:__________________________________________
Place the motorcycle on a stand and make sure it is in up-
right position.
Check:
• the brake fl uid level
If below the minimum notch “A” Fig. A, top up with the recom-
mended brake fl
uid until it is at the correct level.
Fluid topping up procedure:
• Once having positioned the motorcycle on a level surface,
loosen the two fastening screws “B” of the brake pump
cover Fig. A.
Check:
the cap gasket
If there is any damage/wear,
replace the gasket.
IMPORTANT NOTICE
Brake fl uid can damage painted surfaces and plastic parts.
Therefore, wrap the absorbent paper around the pump and
always clean up any brake fl uid spills immediately.
• Apply the vacuum device to the drain screw ”C” Fig. B.
• Top the liquid up to the level indicated on the pump sight
glass Fig. C.
• Pump the brake fl uid by moving the brake lever.
• After topping up, place the cap and tighten the two fasten-
ing screws.
WARNING
Only use the prescribed fl uid. Other brake fl uids may cause
the deterioration of the rubber seals, causing leakages and
malfunctioning of the braking system.
Top up with the same type of brake fl uid already in the sys-
tem. Mixing different types of brake fl uid may cause a nox-
ious chemical reaction, which may affect the braking system
operation.
While topping up brake fl uid, take care not to let any water
enter the container. Water would lower the boiling point of
the brake fl uid signifi cantly, causing steam bubbles.
A
B
C
C
B
Fluido f reni consigliato
TUTELA BRAKE FLUID
TOP 4 - DOT 4
TOP
4
