Benelli TRK 502 Service Station Manual

5 - 41

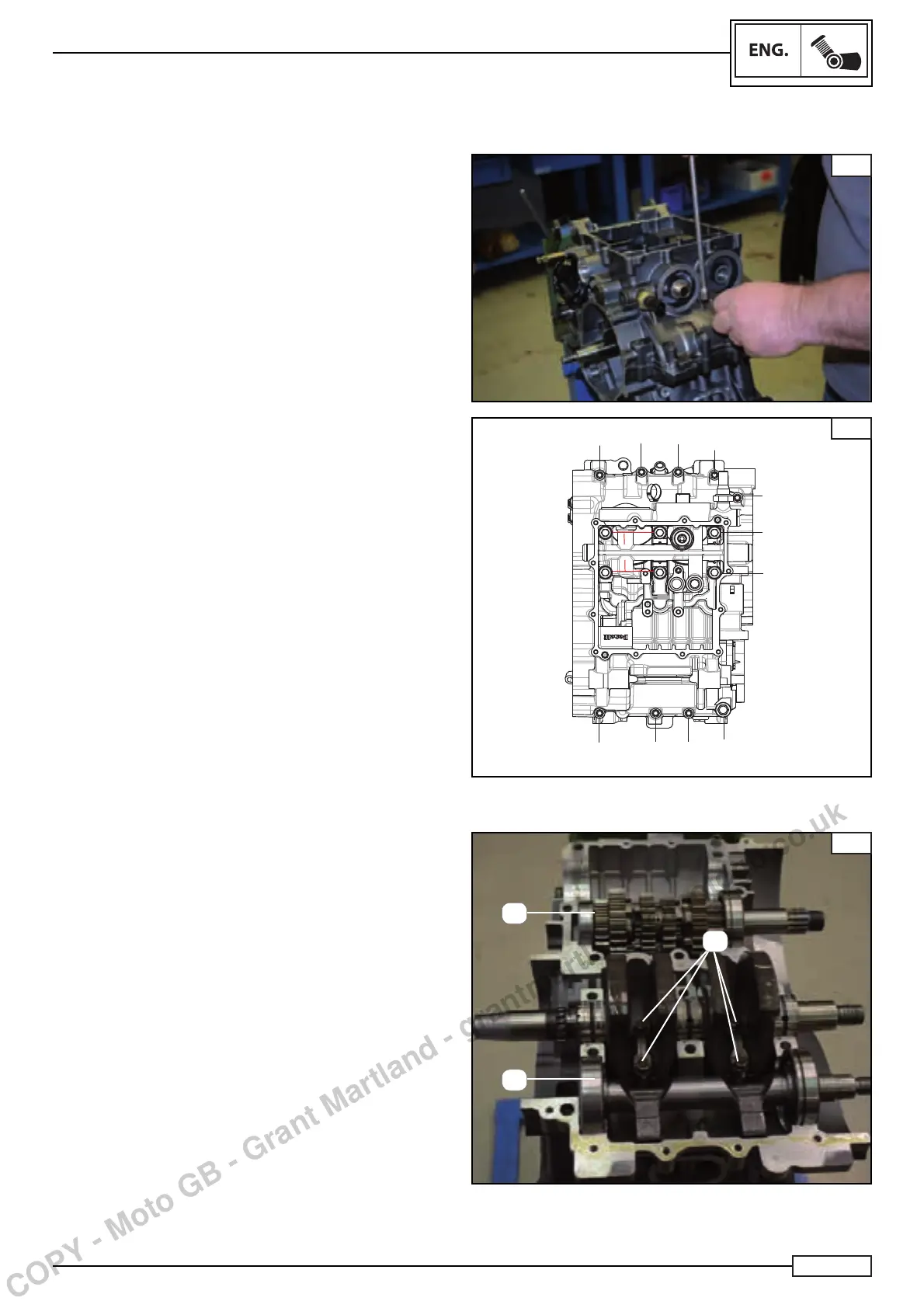

CRANKCASE
REMOVAL OF CONNECTING RODS
Remove:
1. Coils and Spark plugs, see the section entitled “Coil and
spark plug removal”.
2. Head timing gear cover, see the chapter entitled “Head
timing gear cover removal”.
3. Chain tensioner, see chapter entitled “Chain tensioner
removal”.
4. Exhaust camshaft, see chapter entitled “Exhaust
camshaft removal”.
5. Intake camshaft, see chapter entitled “Intake camshaft
removal”.
6. Head see chapter entitled “Head removal”.
7. fl ywheel, see chapter entitled “Flywheel removal”.
8. Mobile chain slides, see chapter entitled “Mobile chain
slides removal”.
9. Clutch, see chapter entitled “Clutch removal”.
10. Oil sump, see chapter entitled “Oil sump removal”.
11. Oil pump, see chapter entitled “Oil pump removal”.
Remove:
• Base screws Fig. F
• raise the top base.
Remove:
• the gearbox output shaft (1) Fig. G
• the gearbox intake shaft
• the counter shaft (2) Fig. G
• the connecting rod screws (3) Fig. G
E
40
40
40
42
41
41
41
40
40
40
40
40
F
G
1
2
3
