Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Install:
• The left engine protection (5*) to the following torque pres-
sure:
T
.
R
.
Torque (M10 screw) 45 N*m
• The screws (7*) and (6*) to the main frame Fig. A to the
following torque pressure:
T
.
R
.
Torque (M6 screw) 10 N*m
• the right engine protection (13*)
• the screws (7*) and (6*) to the main frame Fig. A to the
following torque pressure:
T
.
R
.
Torque (M8 screw) 22 N*m
NOTE:________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Frame”, paragraph “Installation of frame parts”.
A
FRAME

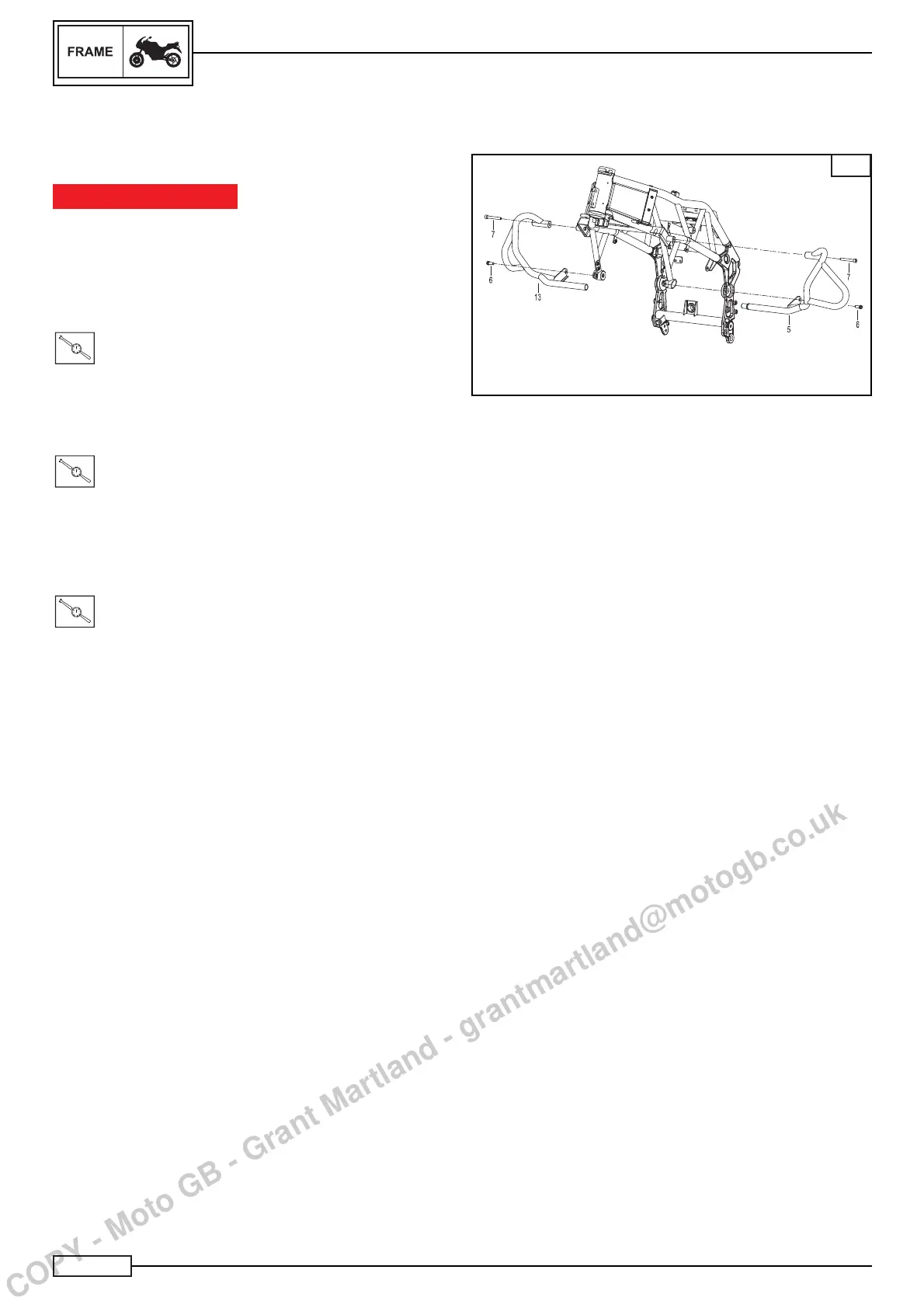

LEFT/RIGHT ENGINE PROTECTION INSTALLATION
