4 - 138
B
A
TANK

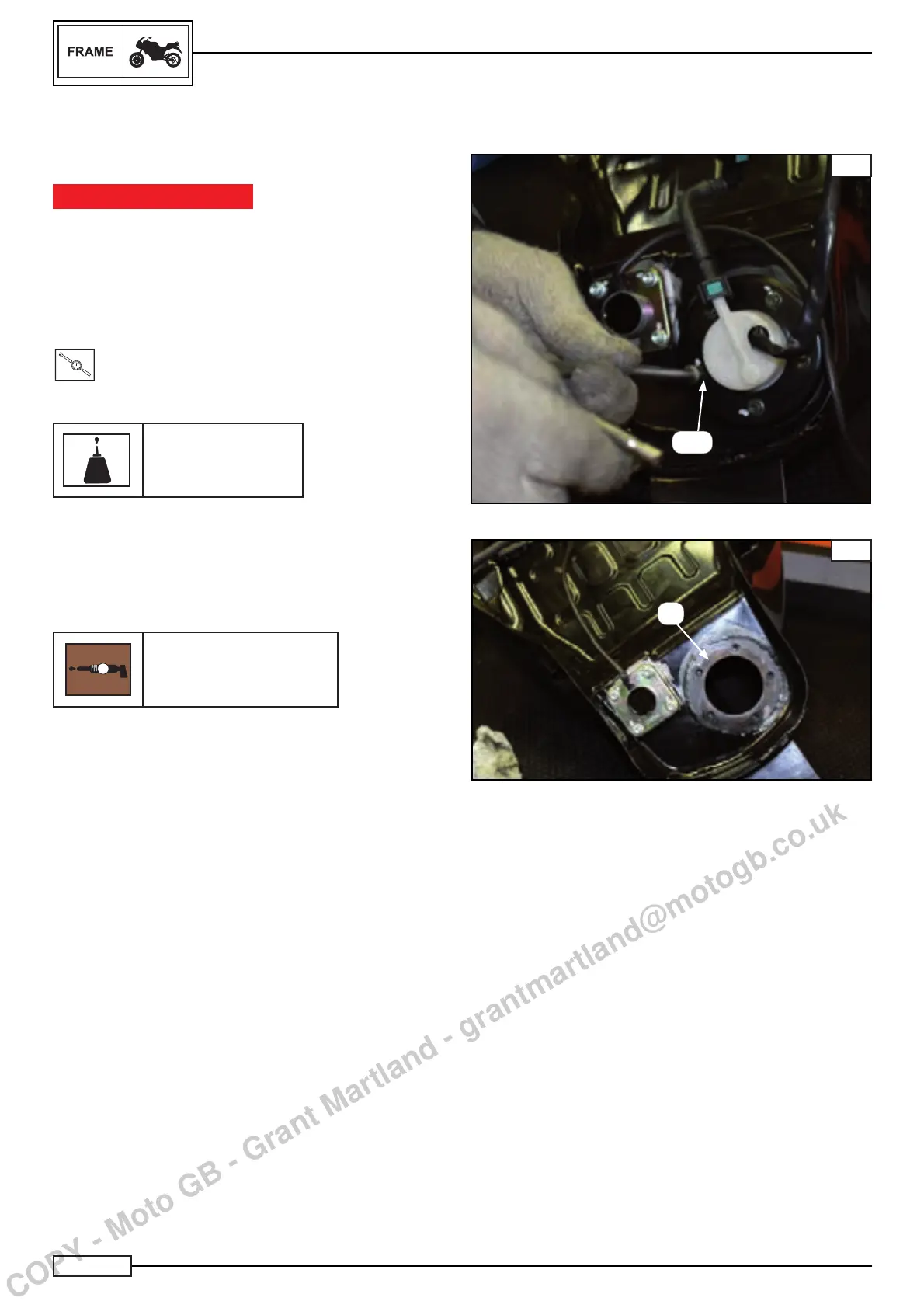

INSTALLATION OF THE TANK PUMP
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Install:
Proceed using the opposite order to removal.
Tighten:
• the screws (20*) Fig. A
to the following torque:
T
.
R
.
Torque 10 N*m
Use Loctite thread locker to secure.
Loctite 243
NOTE:_________________________________
At the moment of reassembly of the pump, grease must be
smeared around the base of the pump housing (A) and the
pump must be inserted into the housing in reverse order of
removal Fig. B.
G
Recommended lubricant
MR2 TUTELA GREASE
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Tank”, paragraph “Tank parts”.
