4 - 118
B
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• Rider and passenger seats, refer to chapter “Removal of
the rider and passenger seat, Chapter 4”.
• the screws (1) Fig. B.
• the left side (12*) Fig. B
• the screws (2) Fig. B
• the screws (3) - (4) Fig. C
• the screws (5) - (6) Fig. D
• the left air duct (7*) Fig. B
NOTE:_________________________________
Carry out the same procedure for the right side (13*) and the
right air duct (8*).
• the screws (7) - (8) Fig. E
• the front fairing (1*) Fig. E
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Fairings”, paragraph “Front fairing”.
12*
7*
C
D
FAIRING

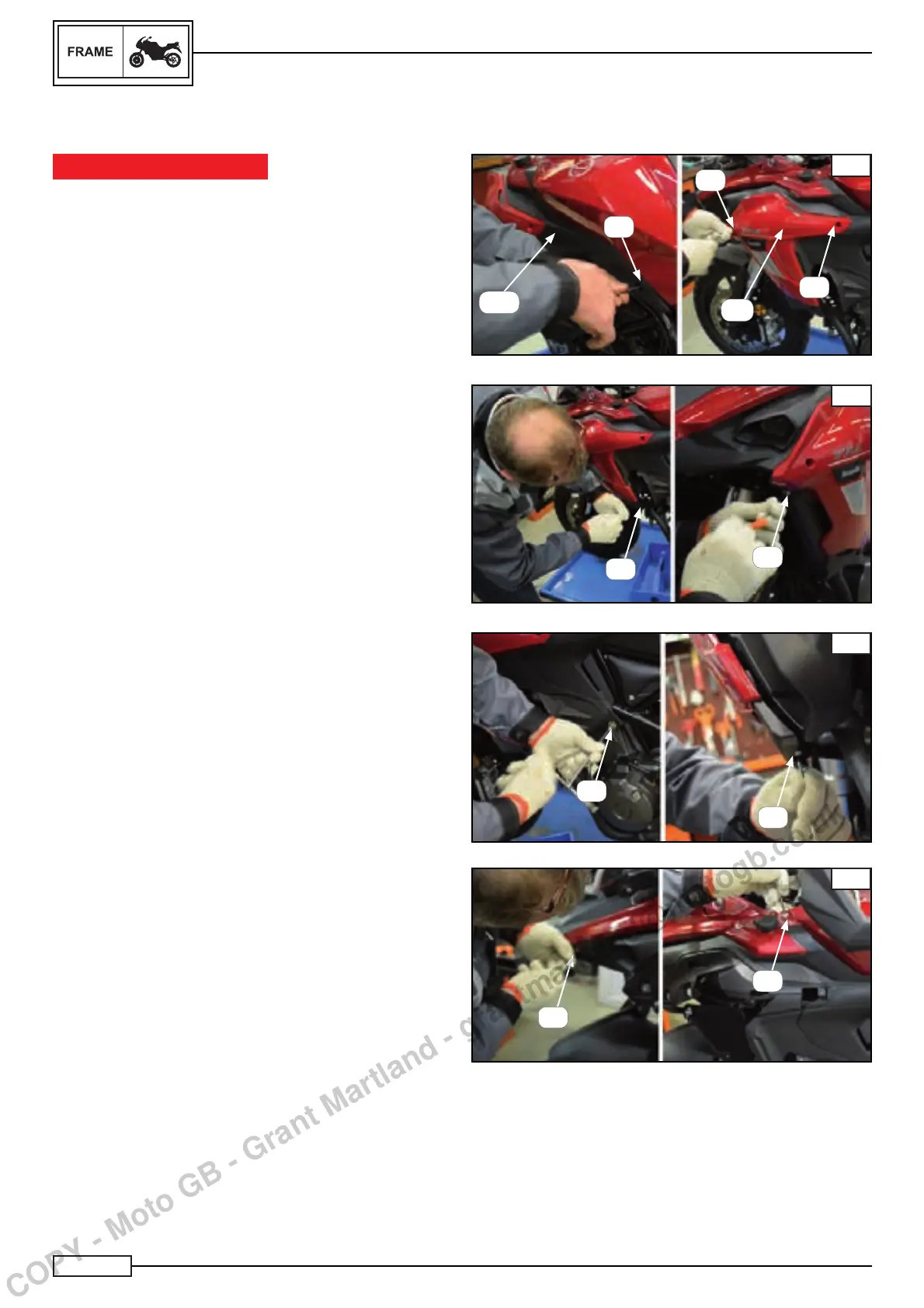

REMOVAL OF THE FRONT FAIRING
E
1
2
2
3
4
5
6
7
8
