Benelli TRK 502 Service Station Manual

4 - 106
EXHAUST SYSTEM

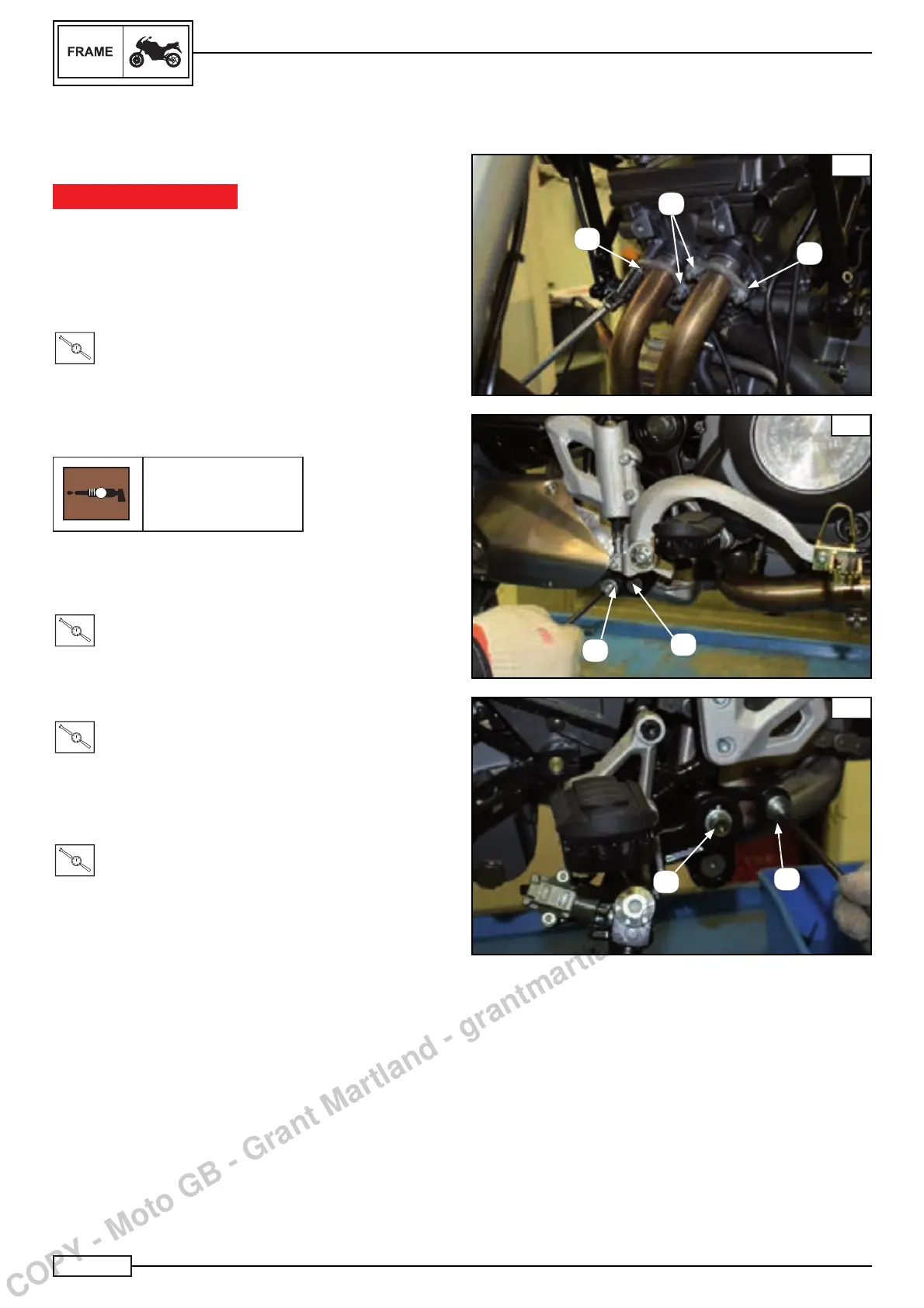

EXHAUST INSTALLATION
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Install:
Proceed using the opposite order to removal.
Tighten:
• the nuts (2*) Fig. A
to the following torque:
T
.
R
.
Torque 22 N*m
NOTE:_________________________________
Lubricate the nuts with copper grease during the assembly
phase.
G
TUTELA grease
• the screws (8*) Fig. B-C
to the following torque:
T
.
R
.
Torque 12 N*m
• the screws (9*) Fig. B
to the following torque:
T
.
R
.
• Torque 12 N*m
• the screw (6*) Fig. C
to the following torque:
T
.
R
.
• Torque 12 N*m
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Exhaust system”, paragraph “exhaust system”.
A
2*
2*
2*
B
9*
8*
C
6*
8*
