FAIRING

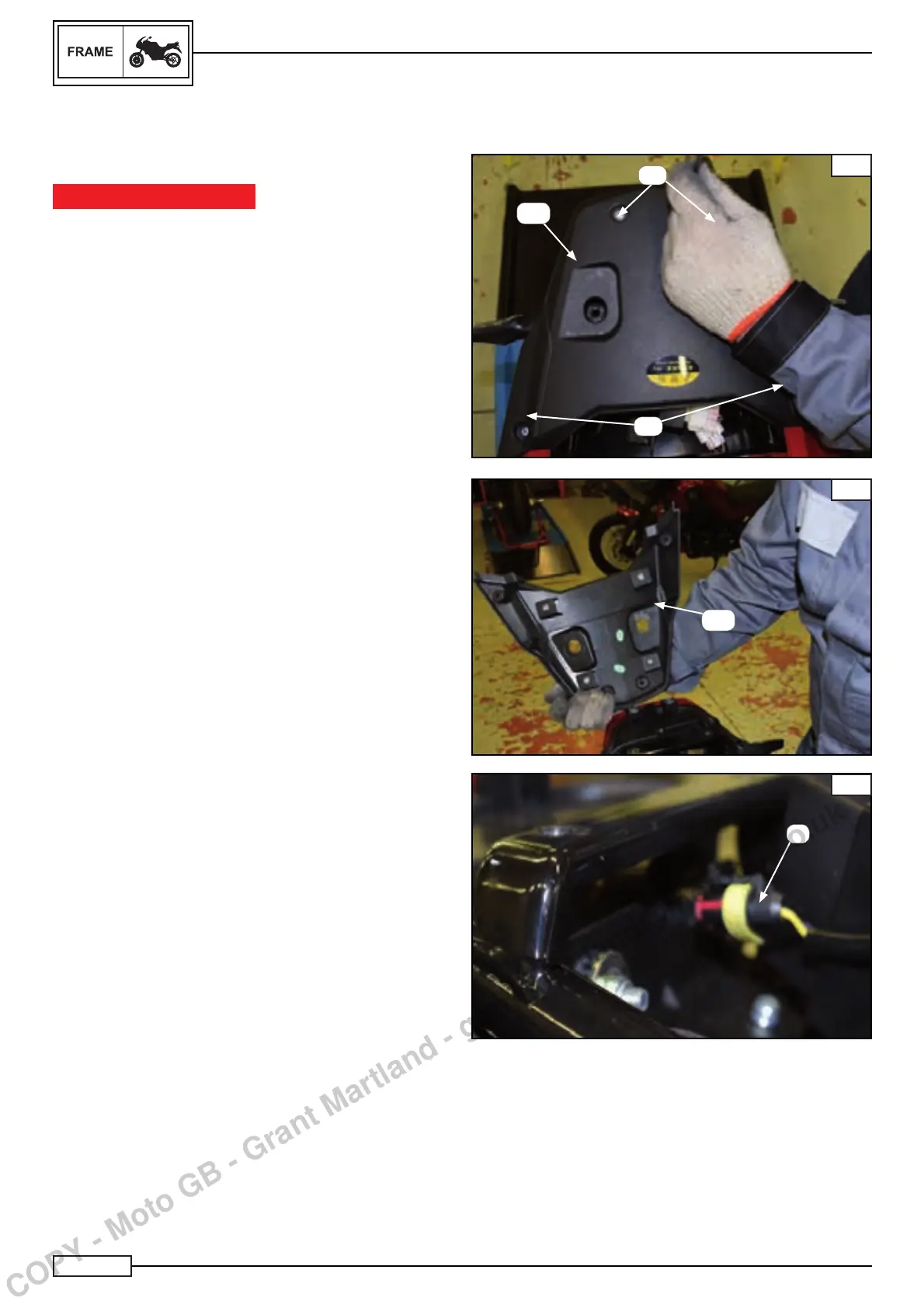

REMOVAL OF THE REAR LIGHT
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• Rider and passenger seats, see chapter entitled “Removal
of rider and passenger seats, Chapter 4”.
• Rear handles, refer to chapter “Removal of the rear han-
dles, Chapter 4”.
• the fi xing screws (3*) Fig. A
• the rear central fairing (16*) Fig. A
• the central cover (17*) Fig. B
Disconnect:
• the rear light connector (1) Fig. C
Remove:
A
C
16*
3*
3*
B
17*
1
