5 - 24
VALVE FLAP AND SPRING REMOVAL
HEAD DISTRIBUTION
Remove:
1. Coils and Spark plugs, see the section entitled “Coil and
spark plug removal”.
2. Head timing gear cover, see the chapter entitled “Head
timing gear cover removal”.
3. Chain tensioner, see chapter entitled “Chain tensioner
removal”.
4. Exhaust camshaft, see chapter entitled “Exhaust
camshaft removal”.
5. Intake camshaft, see chapter entitled “Intake camshaft
removal”.

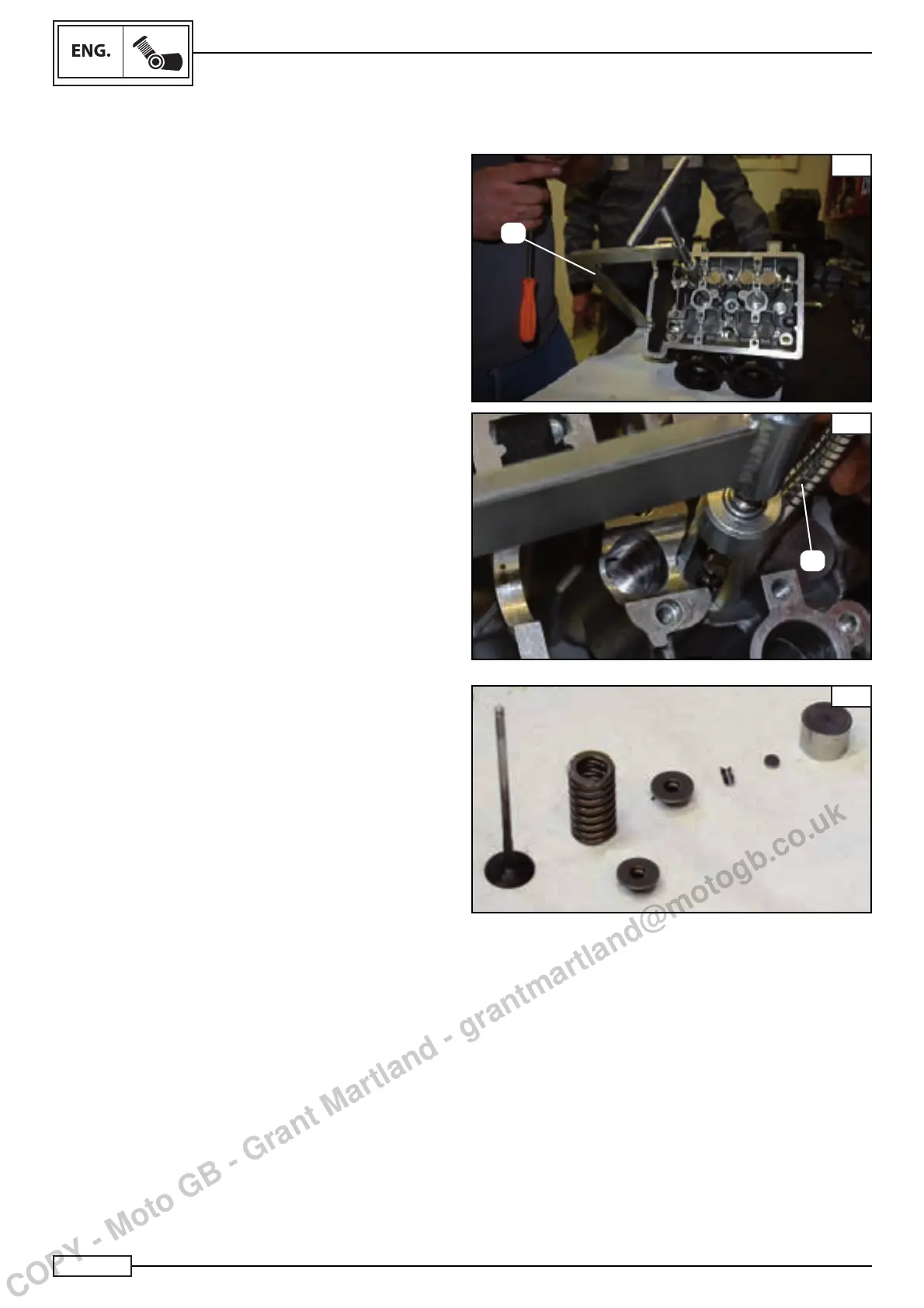

Use the special tool to remove the valves Fig. A.
(**) Valve removal tool
Code:0320097050000
Remove:
• Tappet valve.
• Pad.
• Cotters.
• Top door.
• Spring.
• Bottom plate.
• Oil seal.
NOTE:_________________________________
During removal of the two cotters to lock the valve, use a
magnet (1) to recover them Fig. B.
A
*
B
1
C
