ELE. - 53
FUEL LEVEL SENSOR
A

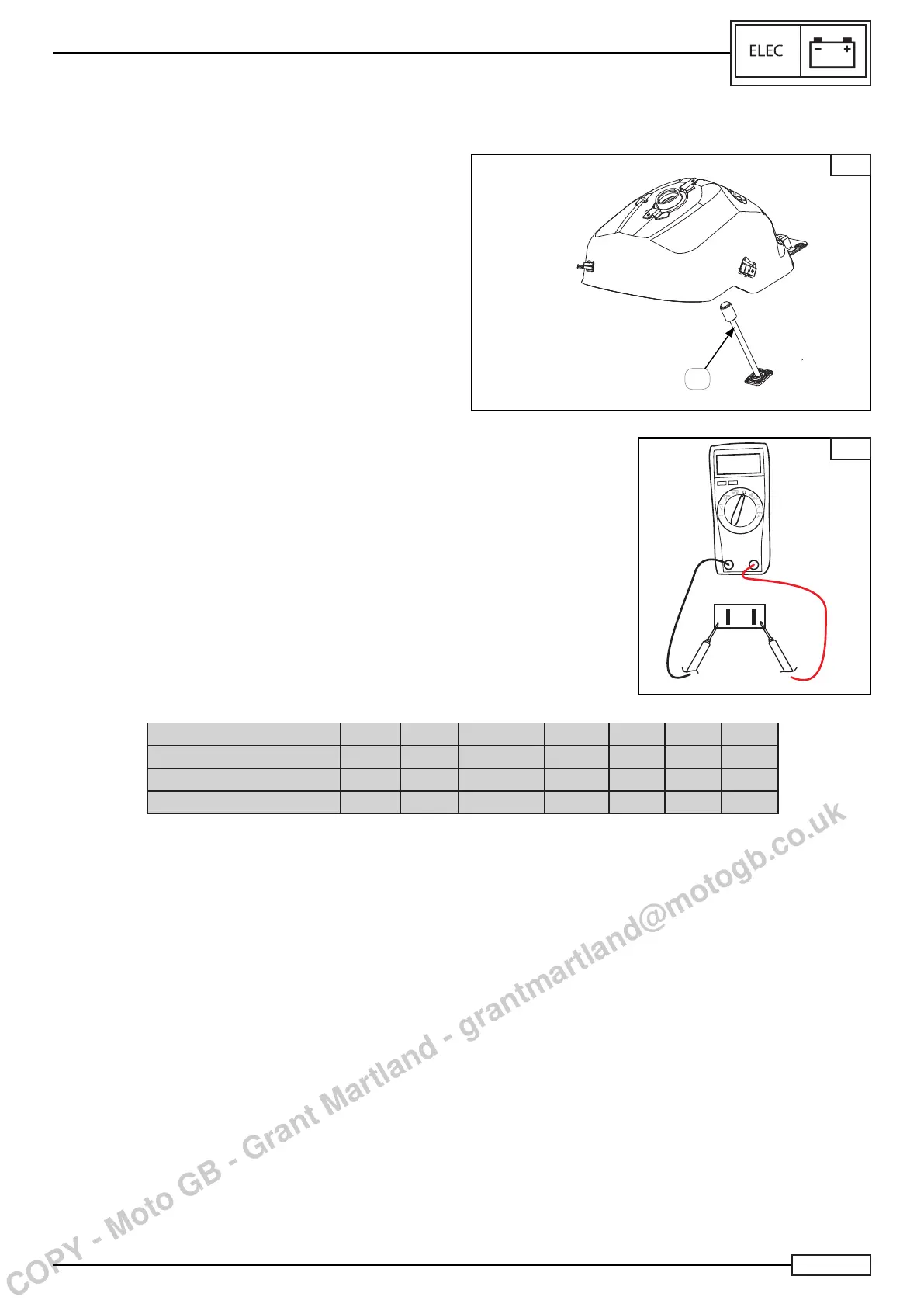

It is situated close to the fuel pump (1), Fig. A, and provides an
outlet value of variable resistance according to the fuel level.
Check:
• The resistance depending on fuel level (Fig. B) by position-
ingthemultitesteronsymbolΩbetweenthePIN1-PIN2.
1
Indicated level 6 5 4 3 2 1 0
Resistive value Ω 0-18 19-24 25-36 37-52 53-69 70-89 90-95
Tank fuel (Lt) 20 15.3 12.7 10 7.7 5.1 2.7
Extension (mm) 262 228±3 207±3 186±3 165±3 144±3 112±3
MULTIMETER
0
1 0 2 0
30
+-
Marrone
Nero
Rosso
Blu
B
ACTUATORS
