4 - 51
FRONT FORK

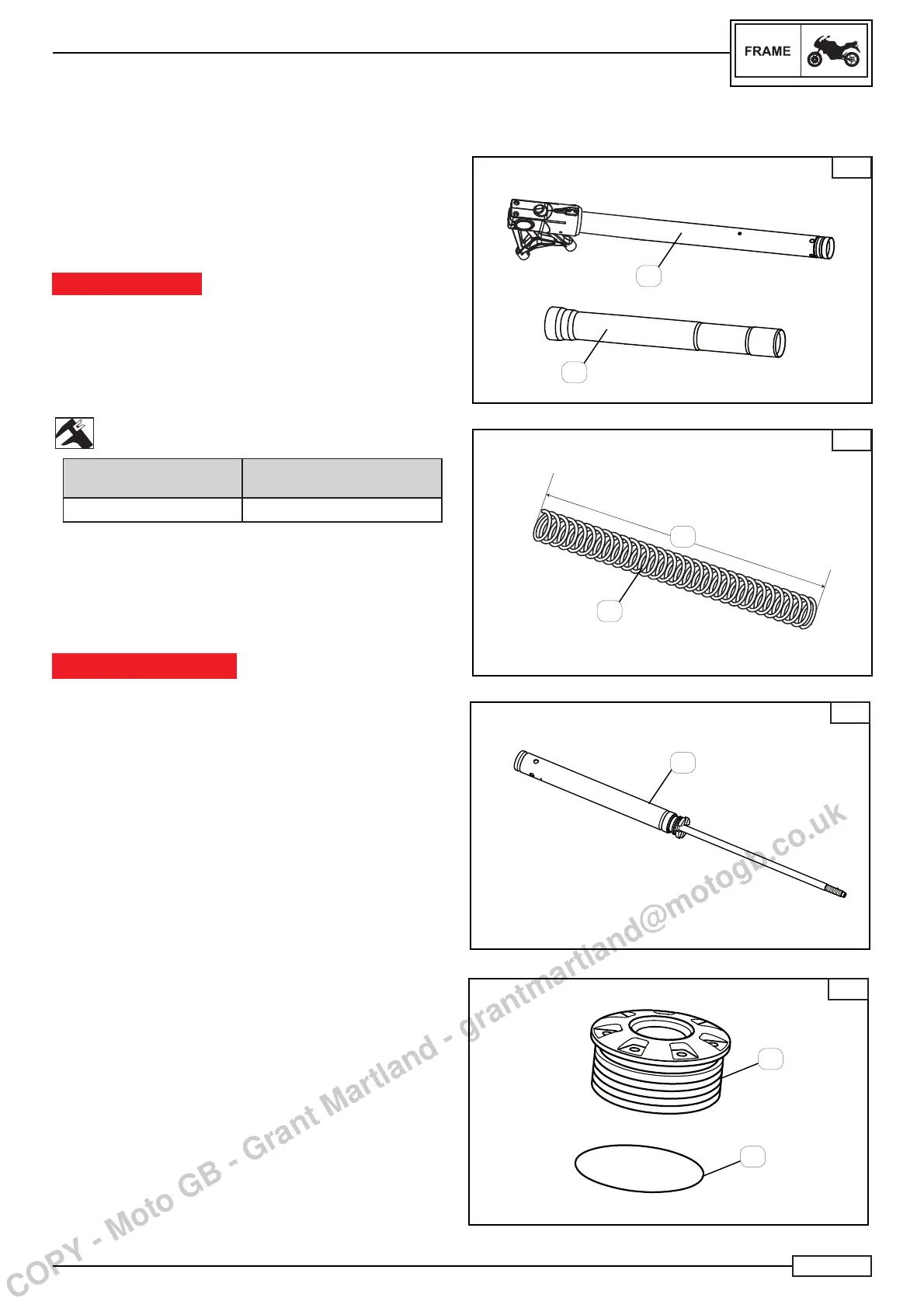

FRONT FORK STEM INSPECTION
A
B
C
D
The following procedure is applied to both front fork stems.
Check:
• Fork stem “A” Fig. A
• The fork sleeve (10).
If there is any deformation/damage/wear, replace.
WARNING
Do not try to straighten the inner fork if bent, since it will be-
come weaker with time and could be dangerous.
Measure:
• The full length (B) of the spring (5). If outside specifi cations,
replace.
Detail
The full length of the
spring.
Spring
295 mm
Check:
• Damper shaft (15) Fig. C
If there is any damage or wear, replace.
If there are any obstructions, free all oil passages with com-
pressed air.
IMPORTANT NOTICE
The pump unit contains elements that are very sensitive to
foreign bodies.
While disassembling and refi tting the front fork stem, never
let foreign bodies enter the front fork.
Check:
• O-Ring (3) of the cap (1) Fig. D
If there is any damage or wear, replace.
A
10
B
5
15
1
3
