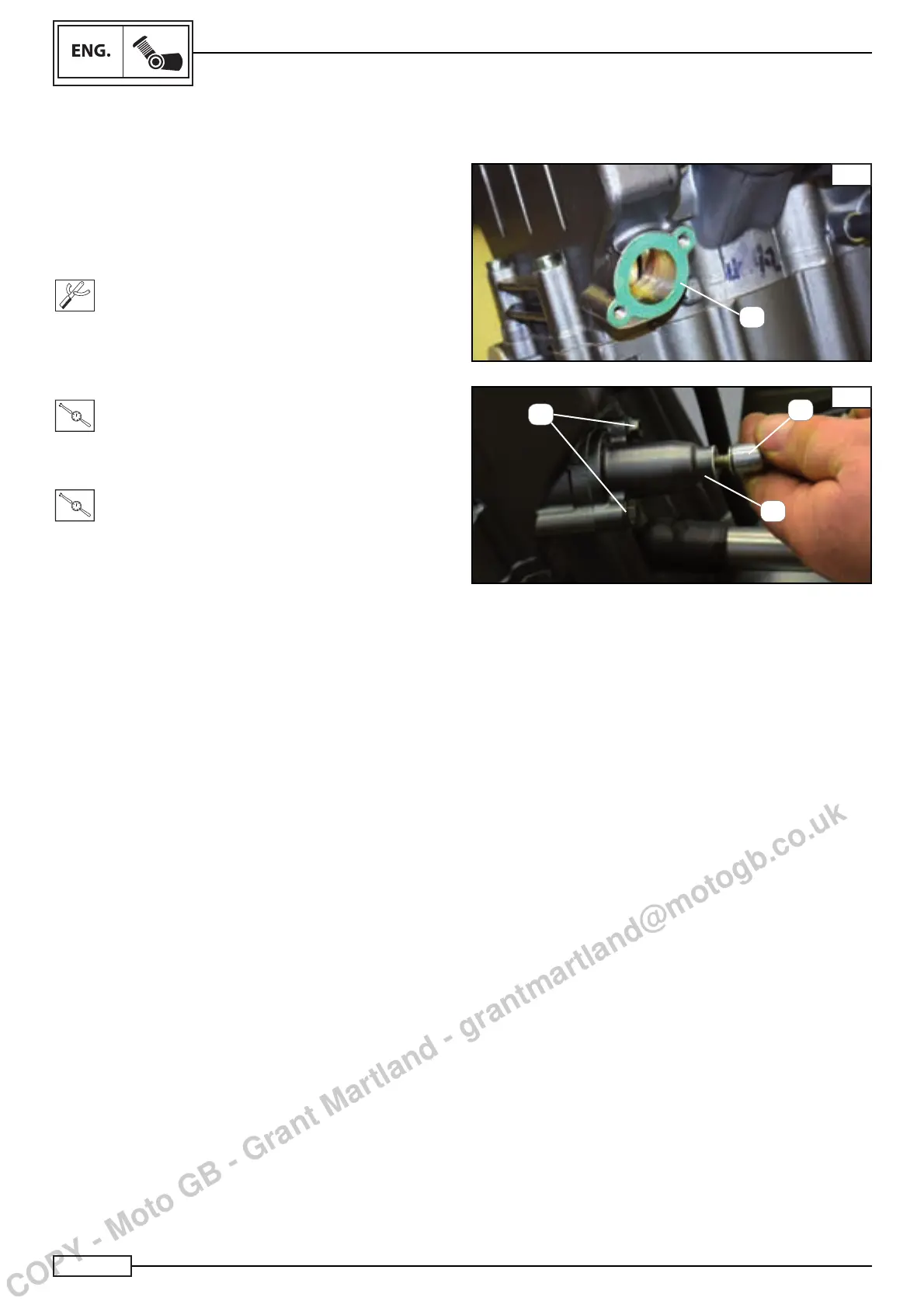

TIMING CHAIN TENSIONER ASSEMBLY
During the assembly stage, take care to ensure that the seal (D)
Fig. H is undamaged and unworn. Replace if necessary.
Move:
The tensioner to the retracted position and insert it into its hou-
sing using the special tool (*)
(*) Tool: Chain tensioner lock tool
Code: 0320097046001
Insert the tensioner into the seat and housing.
Tighten:
• The fastening screws (C) Fig. I to the following torque:
T
.
R
.
Torque 10 N*m
• The screws (B) to the following torque:
T
.
R
.
Torque 8 N*m
HEAD DISTRIBUTION
I
A
C
B
