4 - 43
FRONT AND REAR BRAKES
REAR BRAKE CALLIPER INSTALLATION
IMPORTANT NOTICE
Before installing, clean all of the internal parts of the brake,
and lubricate them with clean or new brake fl uid. Never use
solvents on internal components of the brake, inasmuch that
the seals of the pistons would tend to swell and deform.
Every time the brake calliper is removed, replace the piston
gaskets.
Recommended brake fl uid
TUTELA BRAKE FLUID TOP4
DOT4

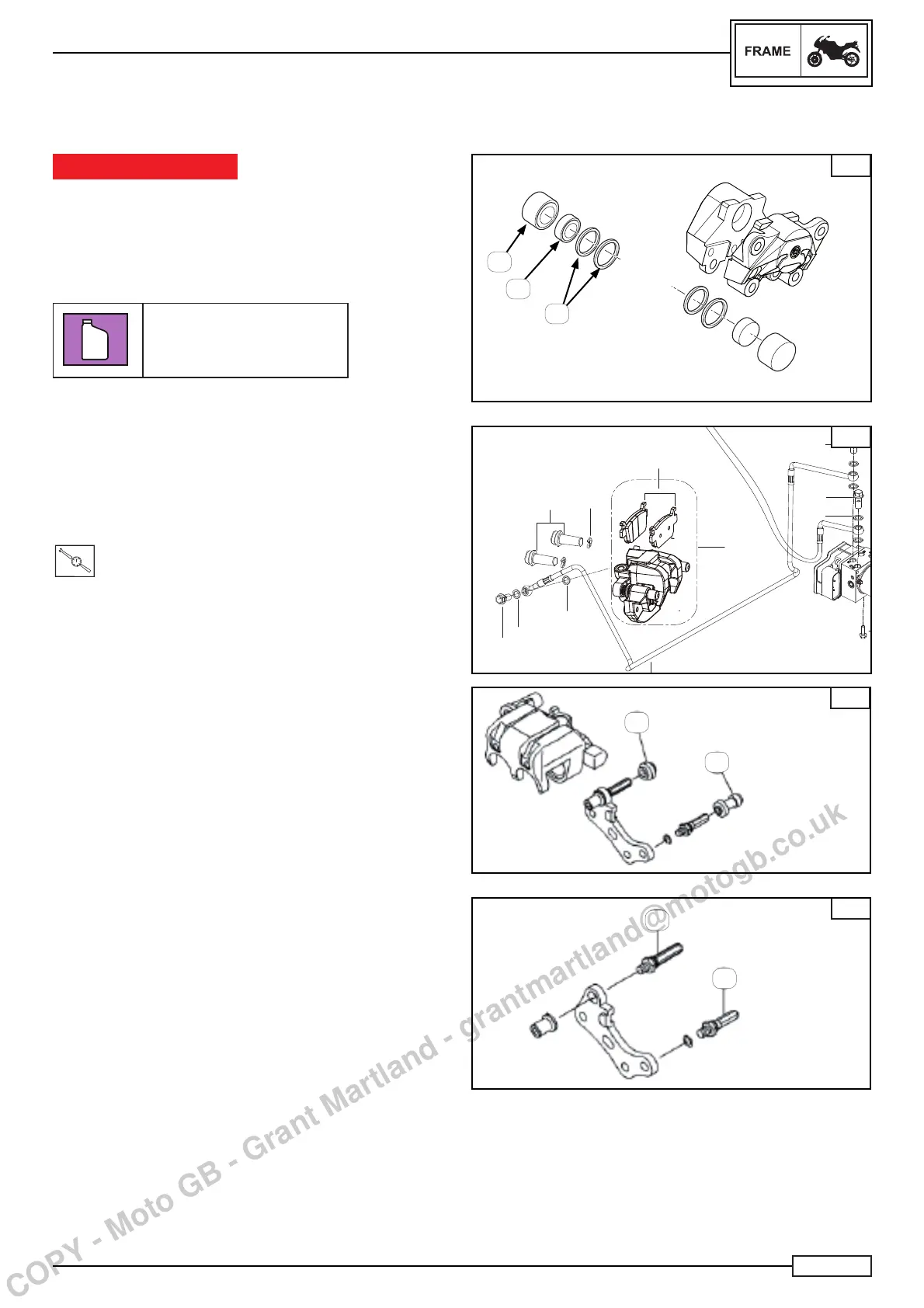

Install:
• the largest seals of the pistons (D) Fig. A
• the smallest seals of the pistons (C) Fig. A
• The pistons on the brake calliper (B) Fig. A
Install:
• The brake calliper (6*) Fig. B
• the screws (21*) Fig. B
to the following torque:
T
.
R
.
Torque 22 N*m
Install:
• The sliding pins (3) and (4) Fig. D
• ear protectors against dust (1) and (2) Fig. C
A
B
C
D
20
20
6
7
9
9
9
20
21
29
B
C
1
2
D
3
4
