STEERING HEAD

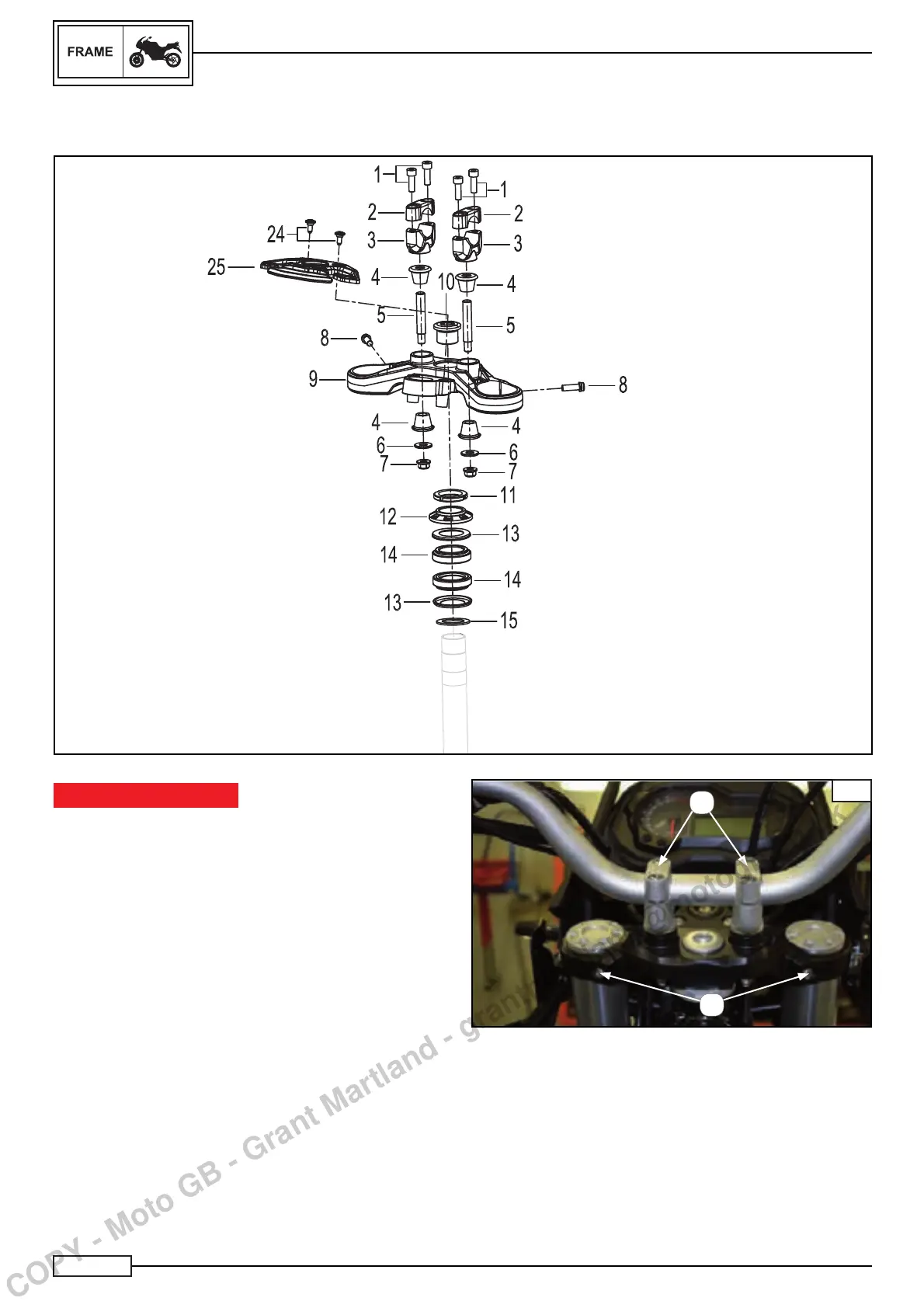

REMOVAL OF THE TOP AND BOTTOM STEERING BASE
A
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove the parts in the indicated order.
• Removal of the mobile and fi xed head light fairing (Re-
fer to paragraph)
• Removal of the front wheel (Refer to paragraph)
• Removal of the front fork stems (Refer to paragraph)
• Removal of the mudguard (Refer to paragraph)
• Removal of the handlebar (Refer to paragraph)
• The screws (8*) Fig. A
• the two upper u-clamps (3*)
8
3
