ELE. - 44
ABS BUTTON
DEVICES

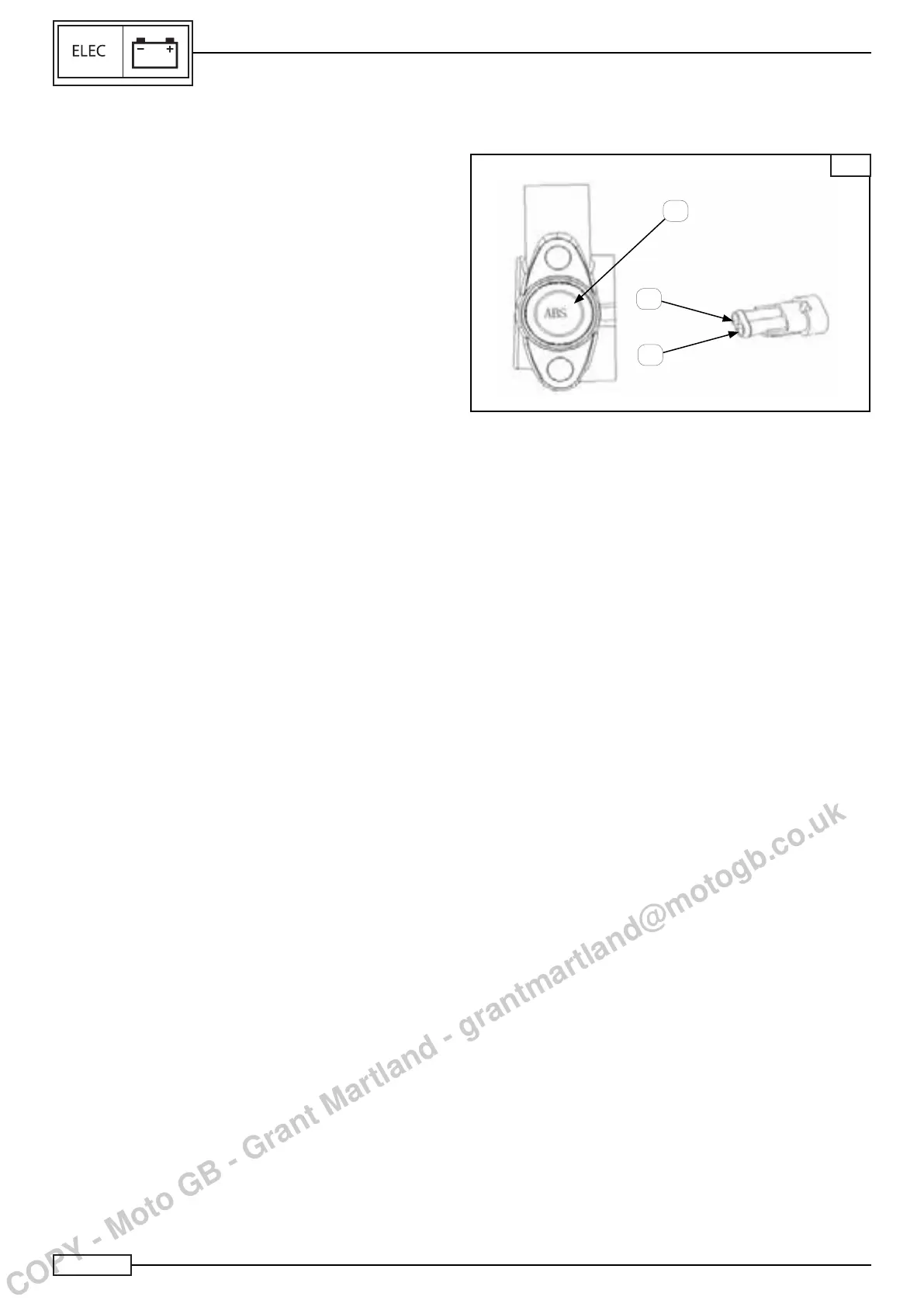

It is situated on the left side of the control handlebar (3), Fig.
A,
and allows to manage the insertion/release of
ABS control.
Disconnect:
•
The electrical coupling.
Check:
•
TheresistanceusingthemultitesteronsymbolΩbetween
pin 1 and pin 2.
Resistance:
•
0Ω
1
2
A
3
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk
387
389
