4 - 150
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• Rider and passenger seats, see chapter entitled “Removal
of rider and passenger seats, Chapter 4”.
• Rear handles, refer to chapter “Removal of the rear han-
dles, Chapter 4”.
• Side fairings, refer to chapter “Removal of the side fair-
ings, Chapter 4”.
Disconnect:

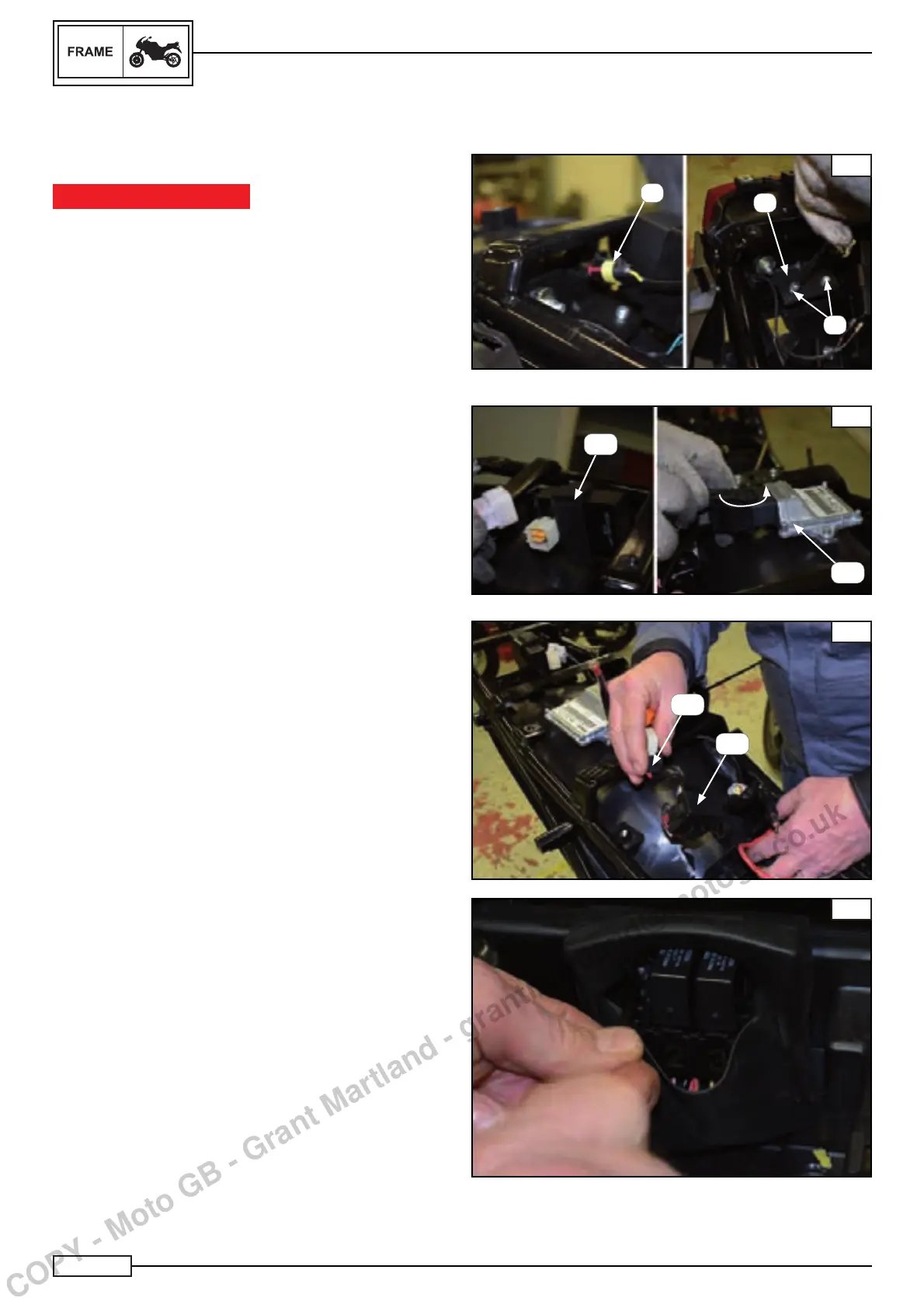

• the rear light connector (1) Fig. C
Remove:
• the screws (2) Fig. C
• the headlight support bracket (3) Fig. C
Disconnect:
• the central light unit (5) Fig. D.
• the injection central unit (4) Fig. D.
Disconnect:
• the fuse box (6) Fig. E.
• the starter relays (7) Fig. E
• the relay box (8) Fig. F
FAIRING
TAILPIECE REMOVAL
C
1
2
3
D
4
5
E
F
6
7
