Benelli TRK 502 Service Station Manual

3 - 58
ELECTRICAL SYSTEM

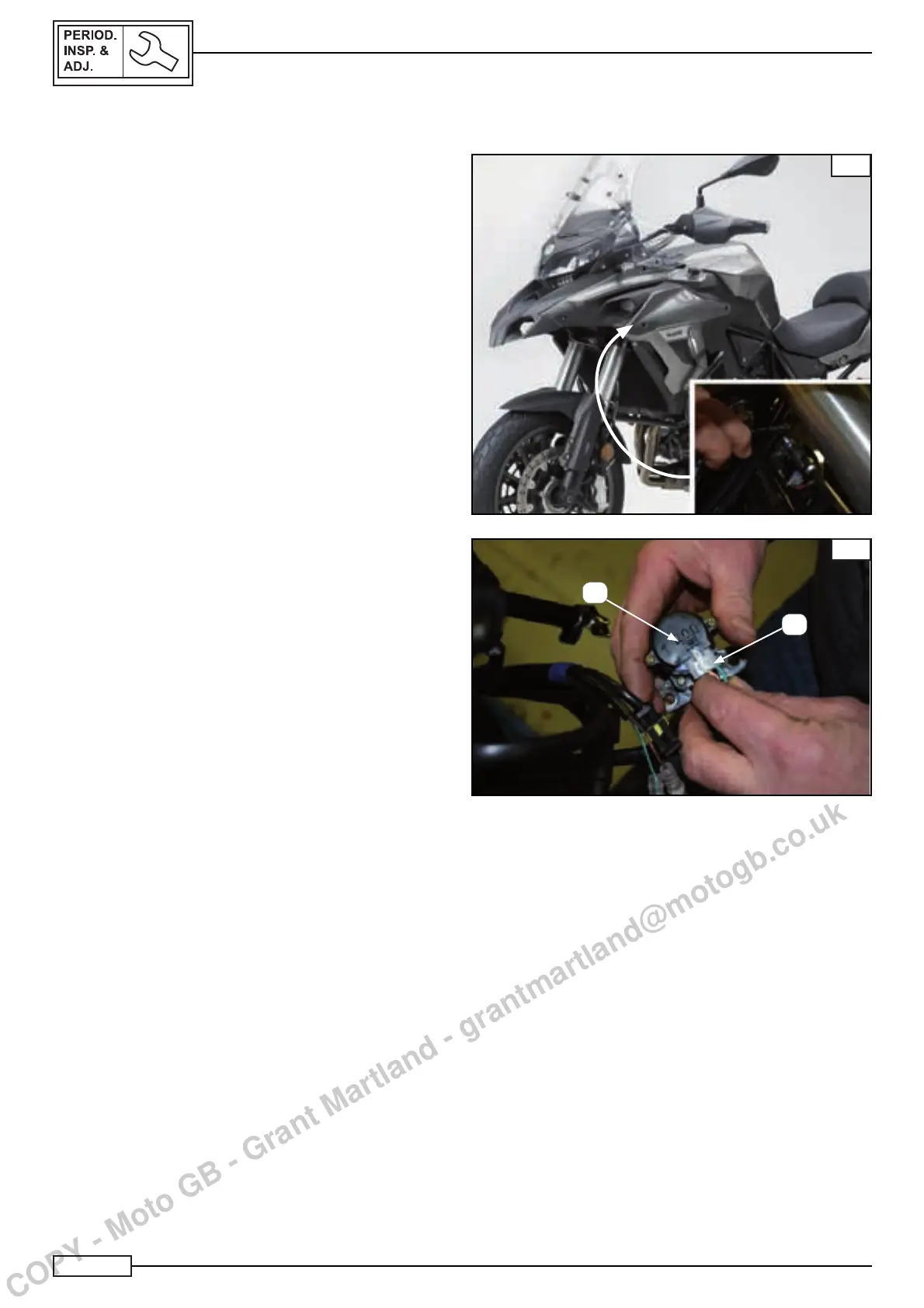

SUBSTITUTION OF THE IGNITION BLOCK
Remove:
• Using a jointed hexagonal spanner, remove the ignition
block “A” positioned in front of the steering head Fig. A
• Remove the ignition block and disconnect the connector “B”
Fig. B
Install:
• Proceed using the opposite order to removal.
NOTE:_________________________________________
Each time a new ignition block is installed, it is necessary to
carry out the mapping of the new block.
A
B
A
B
