4 - 139
TANK

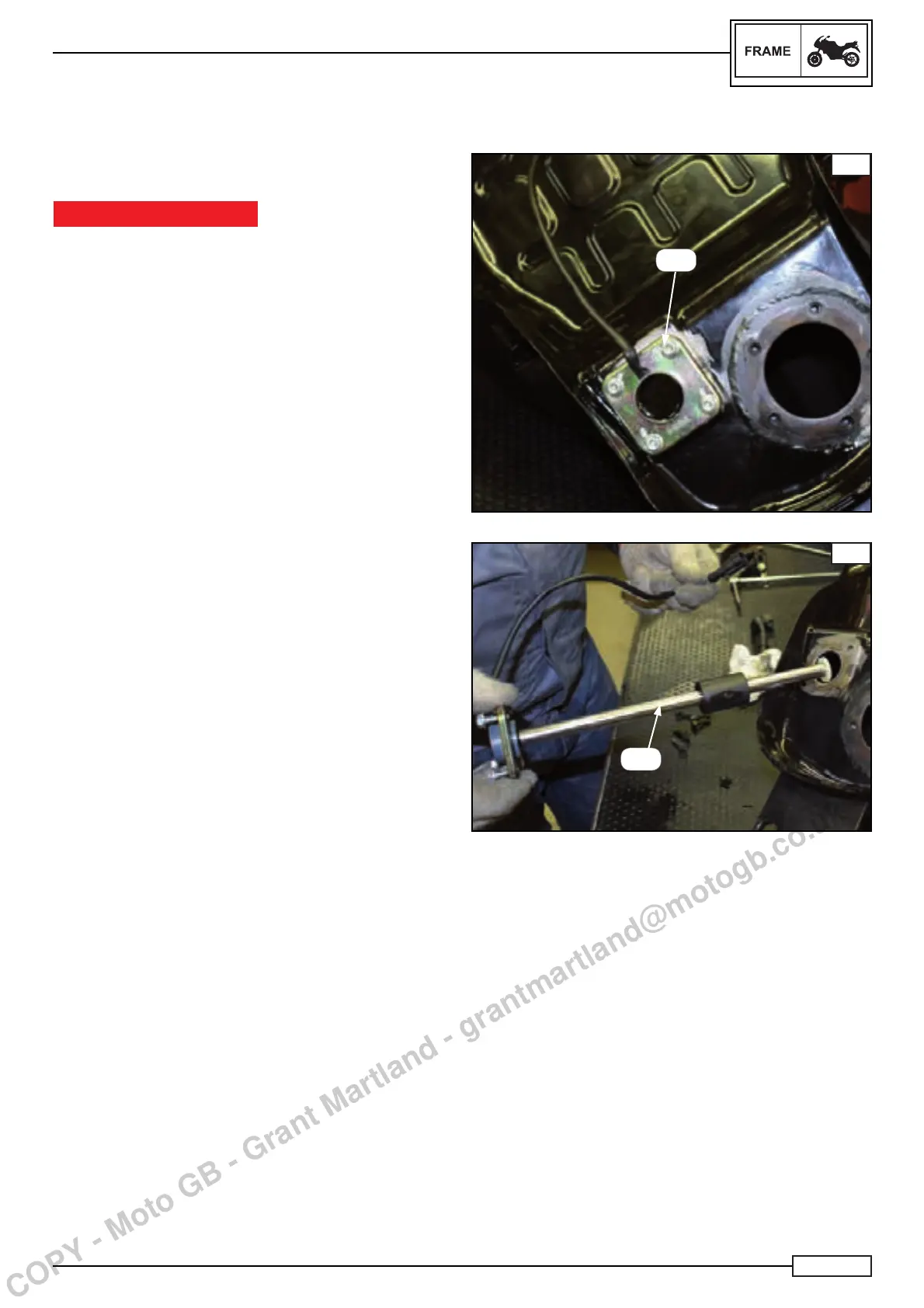

REMOVAL OF THE TANK FUEL LEVEL SENSOR
A
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• Rider and passenger seats, see chapter entitled “Removal
of rider and passenger seats, Chapter 4”.
• Movable windscreen, see chapter entitled “Removal of
movable windscreen, Chapter 4”.
• Front fairing, see chapter entitled “Removal of front fair-
ing, Chapter 4”.
• Tank fairing, see chapter entitled “Removal of tank fairing,
Chapter 4”.
• Tank, see chapter entitled “Fuel tank removal, Chapter
4”.
• the fastening screws (18*) Fig. A
• the fuel level sensor (16*) Fig. B
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Tank”, paragraph “Tank parts”.
18*
B
16*
