FAIRING
REMOVAL OF THE HEADLIGHT UNIT
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• Movable windscreen, see chapter entitled “Removal of
movable windscreen, Chapter 4”.
• Front fairing, see chapter entitled “Removal of front fair-
ing, Chapter 4”.

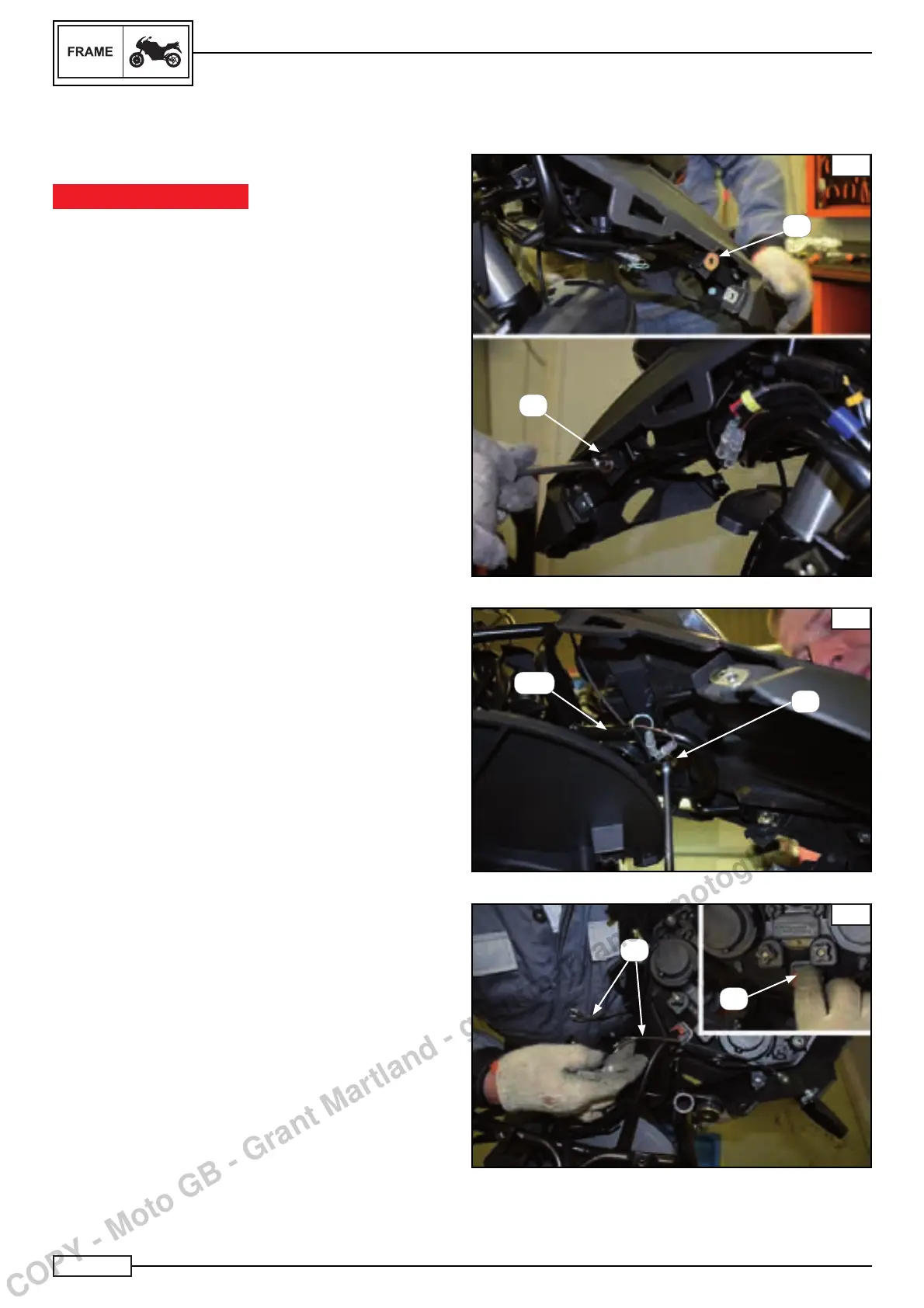

• the screws (1) Fig. A
• the screw (2) underneath the small front frame (3) Fig. B
Disconnect:
• the cables of the left and right front indicators (4) Fig. C
• the connector (5), from the instrument panel as indicated in
Fig. C.
