FRAME
REMOVAL OF THE REAR FRAME
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• Rear footrests, refer to chapter “Removal of the rear foot-
rests’ support, chapter 4”.
• Rider and passenger seats, refer to chapter “Removal of
the rider and passenger seat, Chapter 4”.
• Rear handles, refer to chapter “Removal of the rear han-
dles, Chapter 4”.
• Side fairings, refer to chapter “Removal of the side fair-
ings, Chapter 4”.

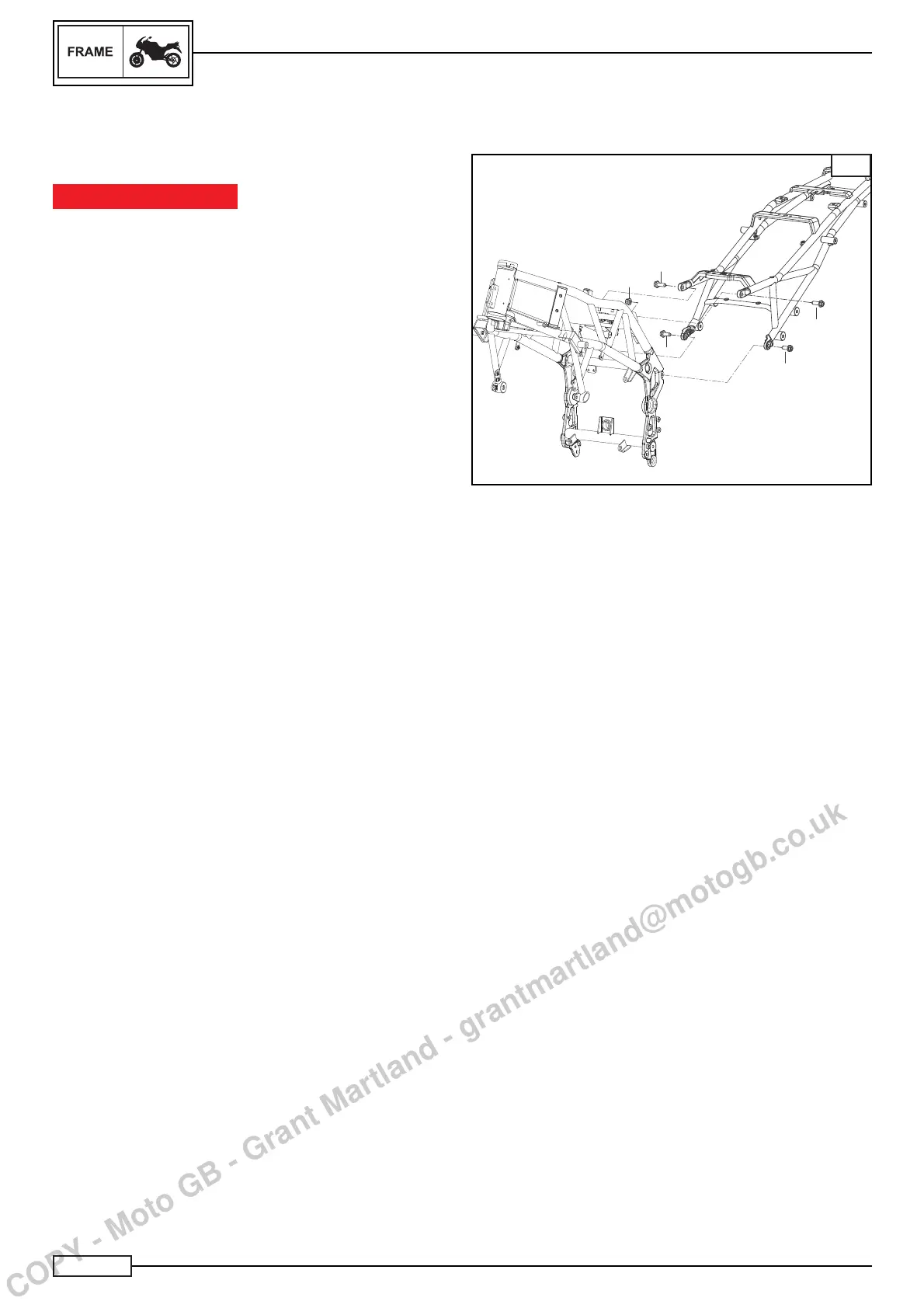

• the screws (3*) Fig. A
• the nuts (4*) Fig. A.
• the screws (2*)
• the rear frame (1*) Fig. A
NOTE:________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Frame”, paragraph “Installation of the rear frame”.
