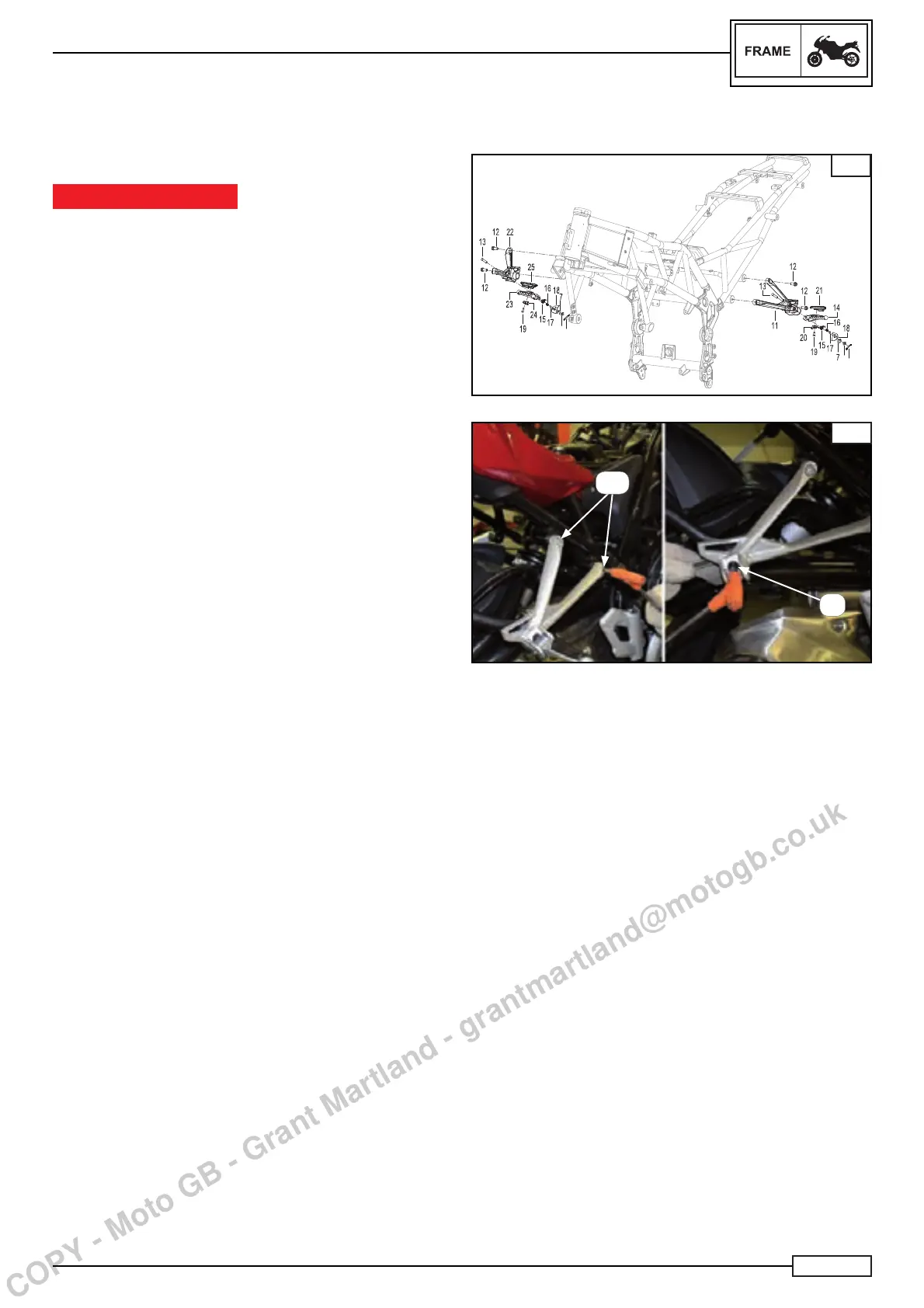

REMOVAL OF THE REAR FOOTREST SUPPORT
40
40
7A
7A
A
B
1
12*
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• the screws (12*) Fig. A
• The right rear footrest support (22*) Fig. A
• The left rear footrest support (11*) Fig. A
NOTE:_________________________________
If the motorcycle is equipped with a side bag frame:
Remove:
• the screw (1) Fig. B
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Cycling” paragraph “Stand/footrests”.
