FRAME/BRAKE PAD CHECK

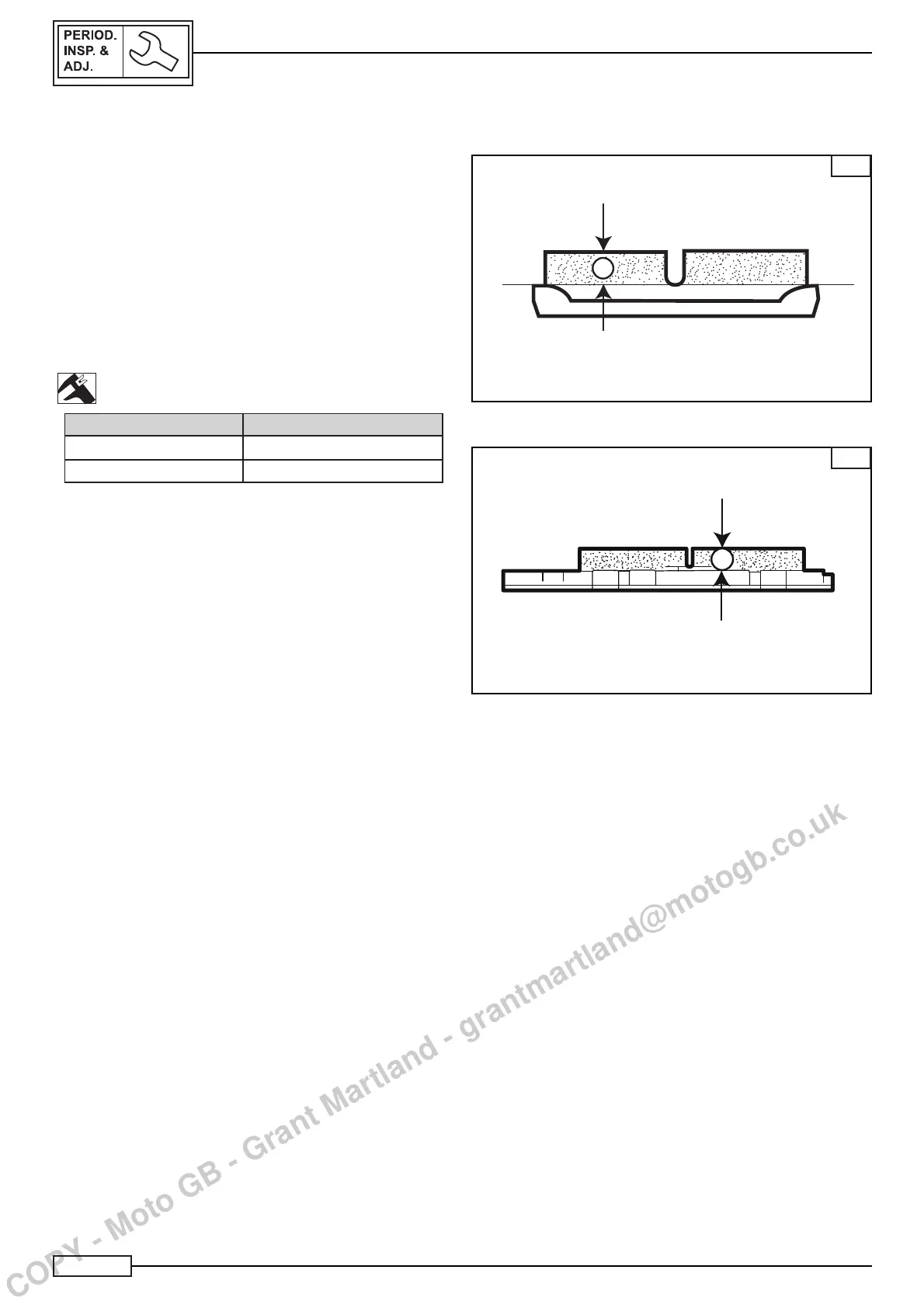

CHECKING WEAR OF FRONT/REAR BRAKE PADS
The following procedure applies to brake pads.
Activate:
• the brake
Check:
• The front brake pads Fig. A.
• The rear brake pads Fig. B.
• The wear limit for the front/rear brake pads.
If the wear reaches the limit, please replace all brake
pads.
Pads Wear limit (A)
Front
1 mm
Rear 1 mm
NOTE:__________________________________________
For replacing the pads, refer to the chapter “Frame”, section
“Removal/installation of front brake pads”.
