Benelli TRK 502 - Removal of the Front Frame;Windscreen Support

4 - 78
FRAME
REMOVAL OF THE FRONT FRAME/WINDSCREEN SUPPORT
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• Movable windscreen, see chapter entitled “Removal of
movable windscreen, Chapter 4”.
• Front fairing, see chapter entitled “Removal of front fair-
ing, Chapter 4”.

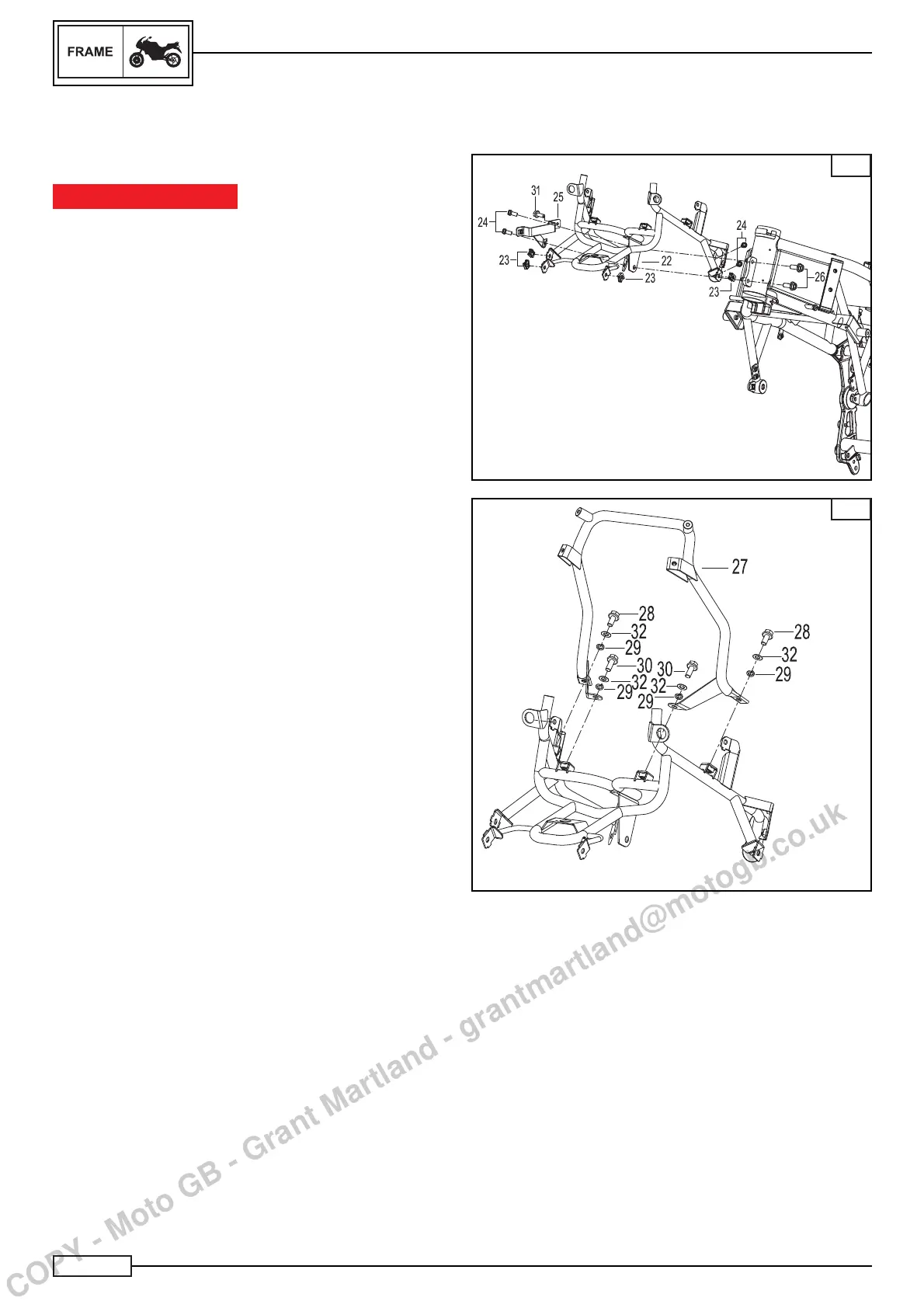

• the screws (26*) Fig. A
• the front frame (22*) Fig. A
Remove:
• the screws (28*) B
• the screws (30*) Fig. B
• the windscreen support (27*) Fig. B.
NOTE:________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Frame”, paragraph “Installation of frame parts”.
