ELECTRICAL SYSTEM
ADJUSTMENT OF HEADLIGHT

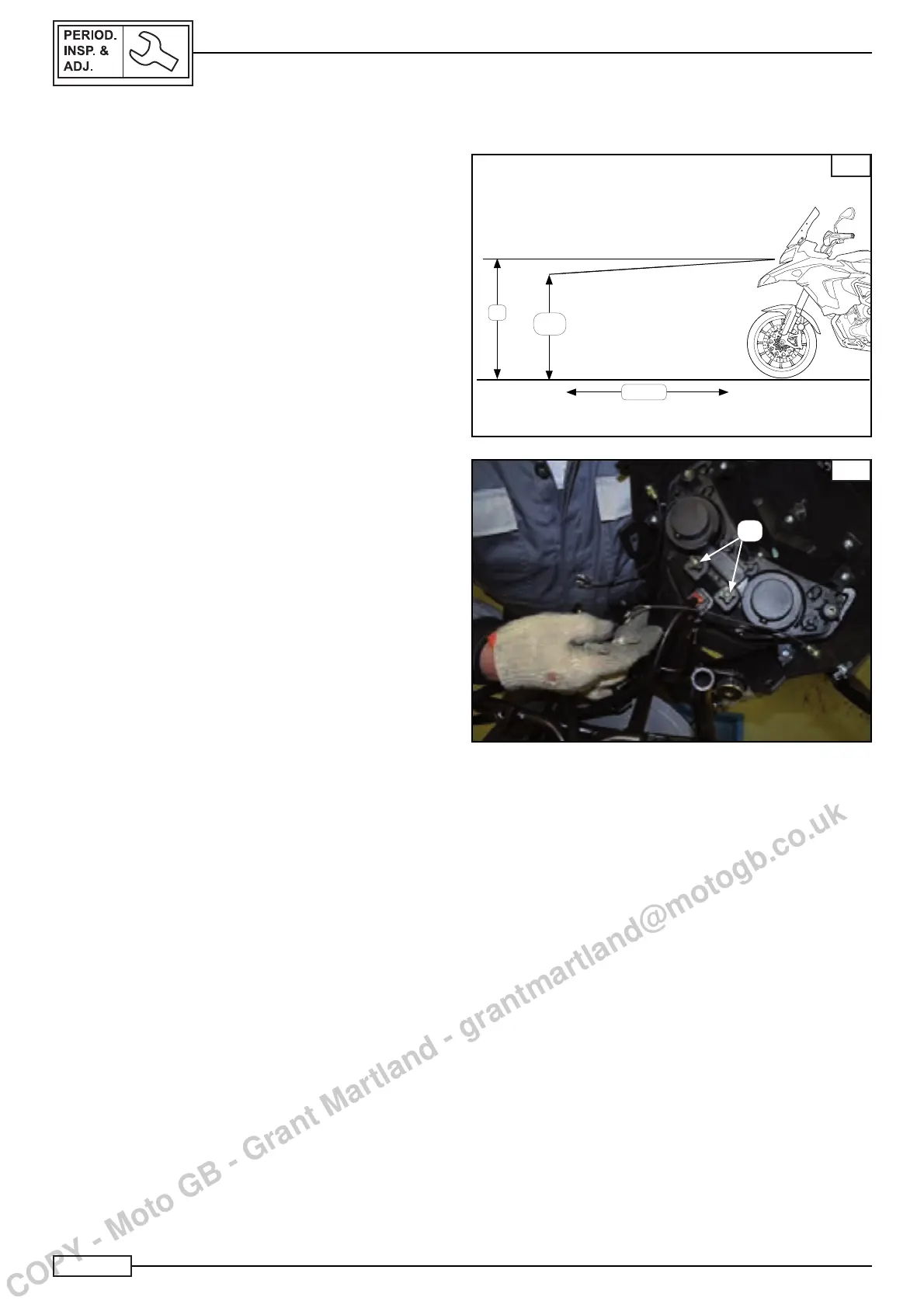

To carry out the correct adjustment of the two headlights’ lumi-
nous beams:
• Position the vehicle approx. 10 metres distance from a verti-
cal wall on a perfectly fl at piece of ground Fig. A
• Sit on the motorcycle in the riding position.
• Check that the upper limit of the luminous beams projected
onto the vertical wall is less than approx. 1/10 in respect of
horizontal axis of the headlights.
• If the luminous beam does not conform to this indication,
carry out the adjustment until the luminous beams are in the
correct position.
Adjust:
• The light beams of the two headlights by adjusting the reg-
ister screw “A” positioned down below on the right and left
side of the rear of the projector lamps Fig. B
Rotating the screw in an anticlockwise direction, the luminous
beam is raised.
Rotating the screw in a clockwise direction, the luminous beam
is lowered.
B
A
10 m
h
9/10
A
