POWER SYSTEM

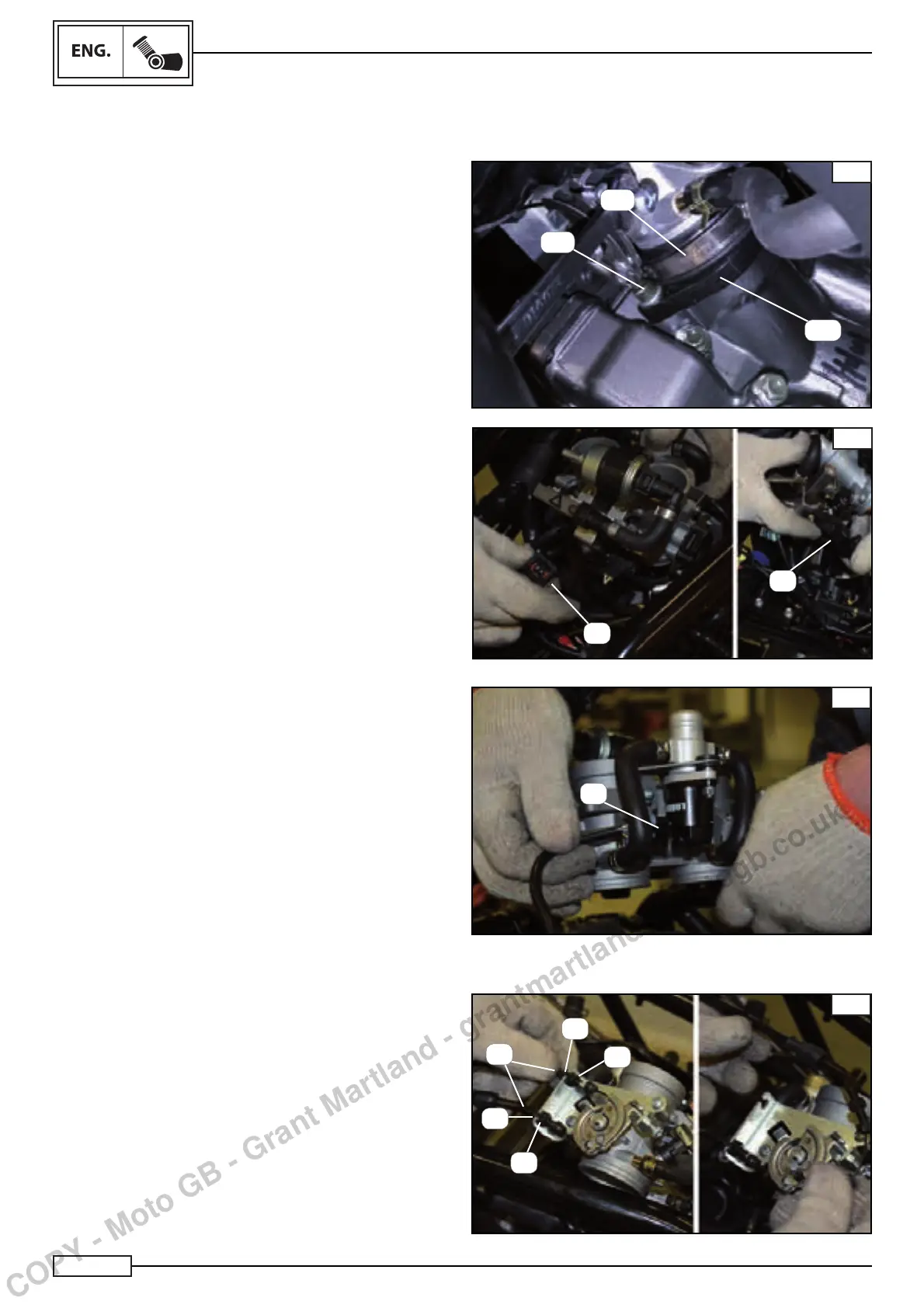

THROTTLE VALVE REMOVAL
Remove:
• Rider and passenger seats, see chapter entitled “Removal
of rider and passenger seats, Chapter 4”.
• Fuel tank, see chapter entitled “Fuel tank removal , Chap-
ter 4”.
• Air fi lter, see chapter entitled “Air fi lter removal, Chapter
4”.
Remove:
• the 2 intake pipes (1) Fig. A.
• the gaskets
• the screws (2) Fig. A
• loosen the screw clips (3) Fig. A.
Disconnect:
• the injector connections (3)
• the connections of the pressure sensor (4) from the electric
backbone to the throttle valve assembly, Fig. B
• the connection (5) of the distributor, Fig. C
Disconnect:
• the bottom ends of the accelerator cable (6) before loose-
ning the cable nut supports (7)
• the bottom nuts (8) Fig. D
• take out the throttle valve.
A
B
3
C
2
1
3
4
D
5
6
7
7
8
8
