4 - 147
D
1
FAIRING

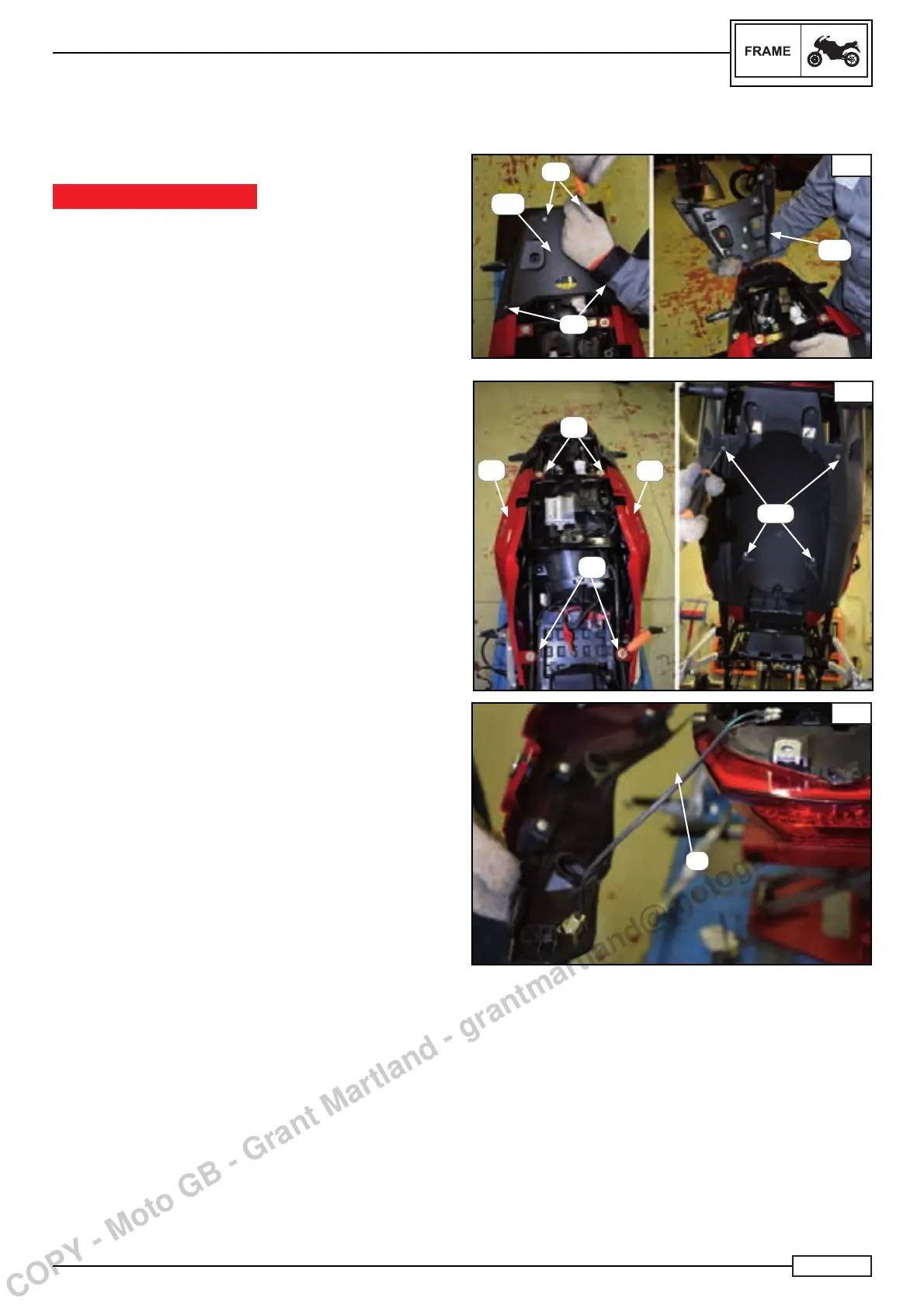

REMOVAL OF THE SIDE FAIRINGS
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• Rider and passenger seats, see chapter entitled “Removal
of rider and passenger seats, Chapter 4”.
• Rear handles, refer to chapter “Removal of the rear han-
dles, Chapter 4”.
• the fastening screws (3*) Fig. A
• the rear central fairing (16*) Fig. A
• the central cover (17*) Fig. A
• the upper fi xing screws (8*) Fig. B
• the lower fi xing screws (33*) Fig. B
• the left tail fairing (6*) Fig. B
• the right tail fairing (7*) Fig. B
Disconnect:
• the left/right indicator leads of the tail fairing (1) Fig. D
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Fairings”, paragraph “Side fairings”.
A
16*
17*
3*
3*
B
8*
8*
33*
6*
7*
